Blackmagic Broadcast Converters: Micro, Mini, and Teranex Mini Series Explained

Posted by Product Specialist

On November 8, 2024

Comments Off

Discover the full range of Blackmagic Broadcast Converters, including Micro, Mini, and Teranex Mini models. Learn about their applications.

Blackmagic Broadcast Converters: Exploring the Range and Applications

Blackmagic Design is renowned for creating high-quality, reliable video conversion solutions for the broadcast and production industries. Whether you’re working with SDI, HDMI, or optical fiber, Blackmagic’s range of broadcast converters allows for seamless connectivity between various video formats and devices. In this article, we’ll dive deep into the three main families of Blackmagic Broadcast Converters—Micro Converters, Mini Converters, and Teranex Mini—highlighting their features, models, and applications across different production environments.

Blackmagic Micro Converters: Tiny Yet Powerful

The Blackmagic Micro Converter range is the world’s smallest USB-powered broadcast video converters. These ultra-compact devices allow you to connect consumer HDMI devices to professional SDI equipment, or vice versa, and support a wide range of video formats, including SD, HD, and Ultra HD (up to 2160p60). With a rugged design that can be powered via USB, the Micro Converters are perfect for mobile productions, remote events, or any situation where space is limited but high-quality conversion is required.

Key Models:

1. Micro Converter SDI to HDMI 3G

Convert SDI to HDMI with support for 3G-SDI formats. This model also features a 17-point 3D LUT for color calibration, making it perfect for high-accuracy monitoring in film production.

2. Micro Converter HDMI to SDI 3G

This model allows HDMI cameras or computers to connect seamlessly to SDI-based professional equipment. It supports 3G-SDI and offers two SDI outputs for flexibility.

3. Micro Converter BiDirectional SDI/HDMI 3G

This versatile converter allows for bi-directional conversion between HDMI and SDI. Ideal for situations where you need to connect SDI devices to HDMI monitors or vice versa.

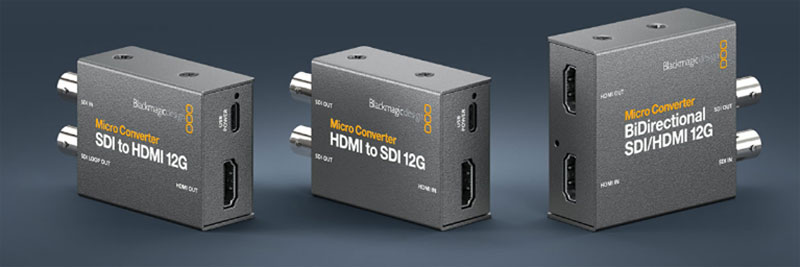

4. Micro Converter SDI to HDMI 12G

For Ultra HD production environments, this model supports SD, HD, and 4K (up to 2160p60). It includes a 33-point 3D LUT for precise color calibration.

5. Micro Converter HDMI to SDI 12G

Designed for Ultra HD video, this model supports HDMI to SDI conversion in all SD, HD, and Ultra HD formats up to 2160p60.

6. Micro Converter BiDirectional SDI/HDMI 12G

A 12G version of the bi-directional converter that supports high-end 4K and Ultra HD workflows while still maintaining compact size and flexibility.

Applications:

Micro Converters are perfect for field productions, remote events, and environments where space and weight are a concern. They’re commonly used for live production, video conferencing, or setting up small-scale broadcast setups where SDI and HDMI devices need to be interconnected.

Blackmagic Mini Converters: Advanced Features for Broadcast Use

Mini Converters offer more advanced features than the Micro Converters, supporting 6G-SDI and 12G-SDI technology for Ultra HD formats. These converters are highly versatile, allowing you to work with SD, HD, and Ultra HD video signals. The Mini Converter range includes models for SDI, HDMI, and analog conversions and is commonly used in studio environments, post-production, and live event broadcasts.

Key Models:

1. Mini Converter UpDownCross HD

This converter is a full standards converter that allows you to convert any SD or HD video format into any other SD or HD format, including computer resolution scaling for HDMI inputs. It uses high-quality Teranex algorithms to ensure top-tier image quality.

2. Mini Converter 3G-SDI Models:

These models support a variety of SDI-based conversions, perfect for low-cost SD and HD workflows. They include:

3. Mini Converter 6G-SDI Models: These models support Ultra HD video and include:

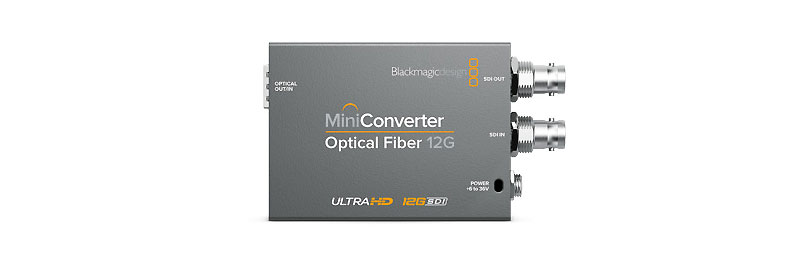

4. Mini Converter Optical Fiber 12G

Extend SDI connections over long distances with optical fiber. This model supports 12G-SDI for Ultra HD, making it ideal for long-distance transmission at live events or in large arenas.

Applications:

Mini Converters are widely used in broadcast and post-production studios for converting and distributing video signals across different formats. They are especially useful for large events, film sets, and TV stations where a variety of video sources and outputs are needed. The ability to embed and de-embed audio, as well as extend SDI signals via optical fiber, adds to the versatility of the Mini Converter range.

Blackmagic Teranex Mini: Professional-Grade Conversions in a Compact Form

The Teranex Mini series is the premium range from Blackmagic Design, combining advanced features and superior quality conversion for professional broadcast applications. These units are designed for applications where high-end video and audio conversion is needed in a compact, rack-mounted form. Teranex Mini units support a wide range of video standards, including SD, HD, Ultra HD, and 4K.

Key Models:

Teranex Mini Smart Panel

A front panel for Teranex Mini models that adds control features, allowing you to adjust settings and turn specific features on or off directly from the device.

2. Teranex Mini Optical to HDMI 12G

This model converts SDI or optical fiber signals to HDMI, with support for Ultra HD formats up to 2160p60. Ideal for connecting broadcast gear to consumer-grade displays.

3. Teranex Mini HDMI to SDI 12G

A high-quality converter for connecting HDMI devices (like cameras or media players) to SDI equipment. It supports SD, HD, and Ultra HD resolutions.

4. Teranex Mini SDI Distribution 12G

This model distributes a single SDI signal to up to eight SDI devices simultaneously. Perfect for studios or large-scale live events requiring multiple monitors or projectors.

5. Teranex Mini IP Video 12G

This bi-directional converter allows you to send SDI video over Ethernet networks, making it ideal for IP-based broadcast workflows.

6. Teranex Mini Quad SDI to 12G-SDI

Converts older Quad Link SDI to 12G-SDI for connecting newer Ultra HD devices to older equipment.

Applications:

Teranex Mini converters are typically used in high-end broadcast environments, where flexibility, high-quality conversion, and signal distribution are critical. These converters are used for high-resolution video production, live broadcasting, signal distribution in large venues, and video-over-IP applications.

Choosing the Right Blackmagic Broadcast Converter

Whether you’re working in a small production setup or a large-scale broadcast environment, Blackmagic Design offers a range of broadcast converters to suit your needs. From the ultra-portable Micro Converters for mobile setups to the feature-rich Mini Converters for studio and broadcast use and the professional-grade Teranex Mini models for top-tier quality and versatility, there’s a solution for every application. To view more Blackmagic Products Converter Types:
