Accsoon CineView Master 4K SDI/HDMI Wireless Video Transmission System
SGD 967.22 excl. Tax
Product Highlights:
- SDI+HDMI In+HDMI Loop Out+
- USB Wired video to iOS (MFi certified); End-to-End True 4K60;
- Tri-band（6GHz+2.4GHz+5GHz）+DFS transmission;
- Transmission Range: 2.5 kilometer; Very low latency: ＜25ms;
- 8K high-performance processor;
- 1 Wired + 4 Wireless Connections Charge iOS Device: Lightning or USB-C
| Weight | 4 kg |
|---|
Description
Click to rate this post!
[Total: 1 Average: 5]

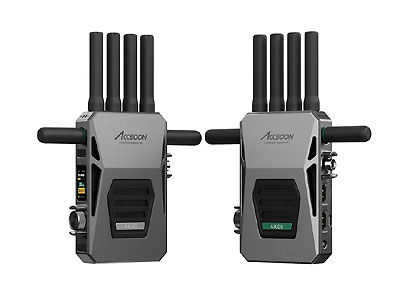

Accsoon CineView Master 4K SDI/HDMI Wireless Video Transmission System (Included Transmitter and Receiver)
The Accsoon CineView Master 4K SDI/HDMI Wireless Video Transmission System delivers UHD 4K video wirelessly with an enhanced interface and extended range. It supports UHD 4K60 video transmission up to 1.6 miles with a low 35 ms delay. The receiver includes 3G-SDI and HDMI output ports, while the transmitter features 3G-SDI and HDMI input ports, an HDMI loop output, and USB-C video output for iOS devices.
Details Come to Life End-to-End True 4K60 Video
Experience high-quality details with CineView Master 4K. From input to output, this fully end-to-end 4K60 solution offers stunning 4K resolution at a fluid 60 frames per second, perfect for monitoring, recording, live-streaming, and any other video productions.
CineView Master 4K Cutting-Edge Wireless Technology Pioneering Multi-Frequency Transmission
Accsoon Tri-Band transmission technology is a quantum leap forward from the previous Dual-Band transmission technology. Based on the proprietary RTMS 4.0 protocol developed by Accsoon, it integrates 2.4GHz, 5GHz, and all-new 6GHz frequencies, enabling intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency, and the ability to gracefully manage multiple connections.
Accsoon Tri-Band Transmission vs. SDR
All New 6GHz Frequency High Speed with Least Interference
Accsoon Proprietary RTMS 4.0 Protocol Crafted for Optimal Stability Performance
25 ms Best in Class Latency Follow the Moment, Focus the Frame
Accsoon CineView Master 4K significantly reduces latency from input to output to only 25ms. This near-real-time performance is notably faster and directly addresses the demands of cinematographers, camera operators, and assistants, ensuring precision and efficiency in fast-paced filming environments and enhancing overall productivity in professional filmmaking.
CineView Master 4K 2.5 km Extended Long Distance Maximized Creative Range Within Reach
Accsoon CineView Master 4K, with its original revolutionary tri-band transmission technology and innovative hardware design, achieves an impressive 2.5 km ultra-long transmission distance. Distance is no barrier to the CineView Masrer 4K. Not only does it work over vast distances, it does so with incredible stability, pushing the limits to make it the highest-performing Accsoon system to date.
Multiple Video Streams for Diverse Needs On-set
1 Wired + 4 Wireless Connections Creativity upon Flexibility
Direct On-camera Video Output to Your iPhone/iPad
- Superb Image Quality: Resolution Up to 4K60
- Apple Standard Display: iPhone and iPad displays have been designed, tested, and manufactured for Apple quality and performance standards.
- Charge Your iOS Device: Charge the connected iPhone or iPad at the same time over Lightning or USB-C.
- Wired Connection Without Latency: Create smoothly and seamlessly, with every detail in real-time.
- Camera to Cloud: Easily share your creations to Frame.io through the C2C integration, enabling real-time automatic uploads from almost any camera to the cloud.
CineView Master 4K Versatile Wireless Connections for Any Production Crew
CineView Master 4K Receiver: Delivers stable, high-quality video transmission for sharp and smooth on-site monitoring.
Wireless Monitoring Made Easy with Accsoon SEE App: Adapts to versatile shooting needs, and stays flexible and efficient even during fast movements.
All New User Interface Designed to Create Friendly Usability
Empowered 8K Processor Wireless Optimized to Perfection
Accsoon developed the proprietary RTMS 4.0 protocol to work with the new High-Performance A/V Processor with 8K capabilities. In combination, the protocol and the processor represent a remarkable 400% increase in processing capabilities. Driving even greater performance for synchronized multi-video streams, the processor can effortlessly manage Tri-Band multi-stream video transmission even under the most demanding conditions.
Balancing Form and Function Engineered for Toughness
The CineView Master 4K blends beauty with utility, featuring clean lines and a balanced structure. Built to withstand the rigors of production, with its unique angles and an industrial aesthetic, the design is fresh and modern.
Intelligent, Quiet Heat Dissipation
An in-built cooling fan can be user configured for optimal performance. There are several modes:
- Standard Mode: Standard mode allows peak fan speeds, ensuring performance in every environment.
- Quiet Mode: Quiet mode reduces fan speed, limiting the amount of noise.
- Turn it off: In audio-critical scenarios where absolutely no fan noise is permissible, the fan can be turned off completely for a limited time—this depends on the ambient temperatures.
CineView Master 4K Versatile Interfaces
View more 4K Wireless Video Transmission Products
Other Site:
Accsoon CineView Master 4K SDI/HDMI Wireless Video Transmission System
Features
Click to rate this post!
[Total: 1 Average: 5]
- End-to-End True 4K60 Transmission
- Tri-band (2.4GHz+5GHz+6GHz) + DFS Wireless Transmission
- 25ms Best in Class Latency [1]
- 2.5km Extended Long Transmission Range [2]
- Multiple Video Streams for Diverse Applications
- TX: SDI Input, HDMI Input, HDMI Loopout
- TX: MFi-Certified USB Video Out to iPhone/iPad
- Convert SDI Input Signal on TX to HDMI Output Signal on RX [3]
- Convert HDMI Input Signal on TX to SDI Output Signal on RX
- RX: SDI and HDMI Output Simultaneously [3]
- Monitoring Up to 5 Devices
- Monitoring on theAccsoon SEE App
- 8K High-Performance A/V Processor
- Powered by DC Input and NP-F Battery
- Compatible with Accsoon V-Mount Battery Adapter
- Intelligent, Quiet Heat Dissipation
- Aerospace Grade Aluminum Alloy
- 1.05-inch Full-color LCD Display
Specifications
Click to rate this post!
[Total: 1 Average: 5]
Transmitter:
- A/V Processor: 8K High-Performance Processor
- Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
- Video Input: HDMI, 3G SDI
- Video Output: HDMI Loop-Out
USB Video Out (to iOS) - SDI Input Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
1080i: 50/59.94/60i - HDMI Input Format: 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p
1080p: 23.98/24/25/29.97/30/50/59.94/60p
1080i: 50/59.94/60i - HDMI Loop-out Format: Identical to the HDMI video input
- DC Port: 5.5mmx2.1mm, center positive
- DC Voltage: 7.4~16.8V
- Battery: Compatible with NP-F550, NP-F750, and NP-F970 battery
- Power Consumption: 6.5W average (*Without powering other devices)
- Audio: HDMI embedded, SDI embedded
- Latency: 1080p 60 < 25ms 4K 60 < 35ms (Camera latency not included)
- Transmission Range: ≥ 2.5 km (No obstacles, no interference)
- Operating Environment Temperature: -10~40℃
- Dimensions (Antennas Not Included): 130mm x 95mm x 32 mm
- Weight (Antennas Not Included): 322g
Receiver:
- A/V Processor: 8K High-Performance Processor
- Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
- Video Input: HDMI, 3G SDI
- Video Output: HDMI, 3G SDI
- SDI Output Format: 1080p: 24/25/30/50/60p Level A
- HDMI Output Format: 4K (3840*2160): 24/25/30/50/60p
1080p: 24/25/30/50/60p - HDMI Loop-out Format: Identical to the HDMI video input
- DC Port: 5.5mmx2.1mm, center positive
- DC Voltage: 7.4~16.8V
- Battery: Compatible with NP-F550, NP-F750, and NP-F970 battery
- Power Consumption: 5.0W average
- Audio: HDMI embedded, SDI embedded
- Latency: 1080p 60 < 25ms 4K 60 < 35ms (Camera latency not included)
- Transmission Range: ≥ 2.5 km (No obstacles, no interference)
- Operating Environment Temperature: -10~40℃
- Dimensions (Antennas Not Included): 130mm x 95mm x 32 mm
- Weight (Antennas Not Included): 320g
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- CineView Master 4K Transmitter ×1
- CineView Master 4K Receiver ×1
- Cold Shoe Mount Adapter ×2
- 2.4GHz/5GHz Antenna ×8
- 6GHz Antenna ×4
- USB-C to USB-C Cable ×1
- USB-C to Lightning Cable ×1
- Allen Key ×1
- User Manual ×1
