Atomos Shogun Classic 7-inch 3000nit Cinema Monitor-Recorder-Switcher
SGD 1,368.63 excl. Tax
Accsoon CineView HE Wireless Video Transmitter and Receiver Kit
SGD 395.93 excl. Tax
Accsoon CineView Quad Multispectrum Wireless Video Transmitter and Receiver
SGD 465.80 excl. Tax
Product Highlights:
- 2.4GHz/5GHz Dual-Band Transmission
- Low Latency Less Than 60ms
- Transmission Ranges Up to 500 feet/150 m
- SDI & HDMI Inputs and Outputs
- Monitoring on Up to 4 Devices
- FHD Video and High Quality Audio Transmission
| Weight | 3 kg |
|---|
Description
Click to rate this post!
[Total: 1 Average: 5]

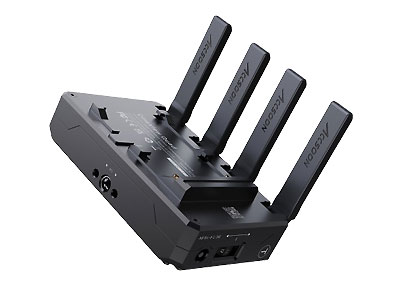

Accsoon CineView Quad Multispectrum Wireless Video Transmission System (Including transmitter and Receiver)
The Accsoon CineView Quad is a wireless video transmission system that allows you to send a 1080p video signal from the transmitter to dedicated receivers or iOS and Android devices.
Accsoon CineView Quad is an SDI&HDMI dual-band (2.4GHz & 5GHz) wireless camera video transmitter and receiver system featuring a unique foldable antenna design. It transmits and receives HD video and HQ audio through Accsoon’s uniquely patent Dual-Band transmission technology. With dual-band transmission technology, CineView Quad can stream data over a range of 150 m (500 ft) with near-zero latency.
CineView Quad Allows 2.4GHz+5GHz Dual-Band Transmission
Accsoon CineView Quad is equipped with Accsoon’s patented Dual-Band transmission technology, allowing it to stream the signal via 2.4GHz and 5GHz WiFi at the same time. Then the receiver can intelligently identify interference and combine the two streams to form the complete audio and video stream, greatly improving its stability and anti-interference ability. With Dual-Band transmission, CineView Quad is far more stable than traditional WiFi video transmitters that only stream in 5GHz. Once on set, CineView Quad will provide you with a stable and glitch-free stream, handling even the toughest environment with ease.
500ft/150m, 0.06s Latency
Improve your shooting productivity on set & ultra-low latency
With an average latency of under 60ms – CineView Quad has nearly undetectable lag while maintaining a high-quality image via its strong wireless signal. By introducing Dual-Band transmission technology, which reduces negative interference, CineView Quad can easily reach a transmission range of up to 500ft line-of-sight. It can be over a thousand feet away and still give you complete control over the situation.
CineView Quad Supports SDI & HDMI In and Out: Double your video input and output options
With CineView Quad, you can plug up to 4 receivers into anything with an HDMI/SDI input: professional monitors, HD televisions, and projectors.
Monitoring on Up to 4 Devices
Accsoon CineView Quad not only transmits a WiFi signal directly to dedicated receivers but also allows for a video signal to be sent to iOS or Android devices.
CineView Quad Provides FHD Video and High-Quality Audio Transmission
Accsoon CineView Quad supports video input of up to 1080p 60fps and audio input of 44.1KHz/48KHz/16bit/24bit. The transmitter alters the bitrate and video quality of the outgoing signal to maximize connection and framerate to make sure you are always able to monitor what is happening.
Power Supply With NP-F Series Battery and DC Input
You can now supply CineView Quad with power from any NP-F battery. Keep extra batteries on hand for all-day shooting or plug CineView Quad into ground power via the built-in DC input on both the transmitter and receiver. Now, you can send beautiful HD videos to your monitors for as long as the shoot requires.
Monitor on iOS or Android using the Accsoon Go app
The free Accsoon Go iOS and Android app offers a huge range of monitoring and recording features that enhance your shooting. Enjoy high-end features like Focus Peaking, Histogram, False Color, viewing with 3D LUTs, and HD recording of the video for instant review and social media sharing. A new feature will even allow recording of the image with LUT applied—perfect for a quick creative look for a shared video or to transform footage recorded Log in-camera to Rec.709 for client review.
Noise-Free Fanless Design
Replace your noisy wireless transmission system with a virtually silent alternative. CineView Quad’s fanless design is a perfect fit for indoor noise-free or narrow-sized shooting applications.
Easy TX/RX Group Pairing
CineView Quad has a group setting knob on each transmitter and receiver. Simply turn the knobs to the same number and voila! Pairing is done and you’re ready to shoot.
Aerospace Grade Aluminum Alloy
CineView Quad is just a 31mm thin, 225g, and rounded aerospace-grade aluminum alloy frame that is light, firm, & corrosion-resistant.
View more HDMI/SDI Products
Other Site:
Accsoon CineView Quad Multispectrum Wireless Video Transmitter and Receiver
Features
Click to rate this post!
[Total: 1 Average: 5]
- 2.4GHz/5GHz Dual-Band Transmission
- Extremely Low Latency Less Than 60ms
- Transmission Ranges Up to 500 feet/150 m
- SDI & HDMI Inputs and Outputs
- Monitoring on Up to 4 Devices, Mix and Match
- FHD Video and High Quality Audio Transmission
- Power Supply with NP-F Series Battery and DC Input
- Pro Features Monitoring App Accsoon Go
- Automatic Channel Selection
- Noise-Free Fanless Design
- Aerospace Grade Aluminum Alloy
- 1.3-inch OLED Display
- Easy Firmware Update
- Quick and Easy Set-Up
Specifications
Click to rate this post!
[Total: 1 Average: 5]
Transmitter:
- Video Input: SDI/HDMI
- SDI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
Level A/B - HDMI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
- DC Port: 5.5mmx2.1mm center positive
- DC Voltage: 7.4~16.8V
- Audio: 44.1KHz/48KHz/16bit/24bit PCM
- Latency: <0.06s (Camera latency not included)
- OLED Display: 1.3inch
- Transmission Power: 17~20dBm
- Transmission Range: 500 feet (No obstacles, no interference)
- Power Consumption: 4.5 Watts (Typical)
- Operating Environment Temperature: -10~40℃
- Dimensions: 105mmx66mmx31mm (Antennas not included)
- Weight: 225g (Antennas included)

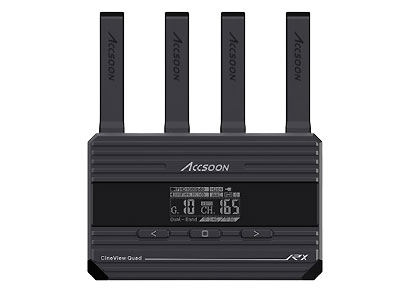

Receiver:
- Video Output: SDI/HDMI
- SDI Output Format: 1080p 24/25/30/50/60fps Level A
- HDMI Output Format: 1080p 24/25/30/50/60fps
- DC Port: 5.5mmx2.1mm center positive
- DC Voltage: 7.4~16.8V
- OLED Display: 1.3inch
- Power Consumption: 5 Watts (Typical)
- Operating Environment Temperature: -10~40℃
- Dimensions: 105mmx66mmx31mm (Antennas not included)
- Weight: 225g (Antennas included)
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- Transmitter x1
- Receiver x1
- Cold shoe mount adapter x2
- User manual x1
