AJA 12GM 12G-SDI to/from SDI Muxer/DeMuxer

SGD 1,597.42 excl. Tax

Weight 1.5 kg
Check Product availability with us on WhatsApp or inquiry form before placing order


SKU: 12GM Category:
Description
Click to rate this post!
[Total: 0 Average: 0]

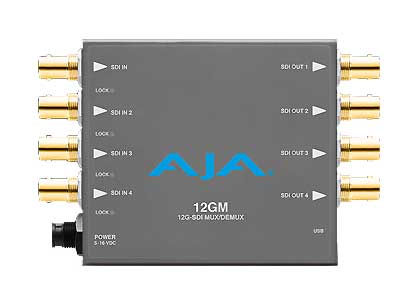

AJA 12GM SDI Mini Converter

AJA 12GM is a compact SDI transport Mini-Converter that enables 12G-SDI to quad link 3G-SDI and quad link 3G-SDI to 12G-SDI conversion. The muxer/demuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates, as well as dual-link conversions. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

  • Compact SDI Transport Converter for 12G, 6G, 3G and 1.5G-SDI·
  • Supports single-link, dual-link, or quad-link SDI on inputs and outputs
  • 12G-SDI to/from quad-link 3G-SDI or dual-link 6G-SDI
  • 6G-SDI to/from quad-link 1.5G-SD or dual-link 3G-SDI
  • 3G-SDI to/from dual-link 1.5G-SDI
  • Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping
  • 3G-SDI Level A to/from 3G-SDI Level B-DL
  • Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
  • HDR signaling metadata pass-through and optional override
  • Pass-through of Single Link 12G, 6G, 3G, 1.5G, and 270M SDI video
  • Distribution Amplifier support (1×4)
  • Input signal diagnostics and timing analyzer for quad link signals
  • Automatic or manual control
  • Detailed timing analysis for validating alignment of quad-link SDI inputs
  • Passes SDI embedded audio, 24-bit, up to 16-Channels
  • Configure via USB port and supplied AJA Mini-Config software for PC/Mac
  • Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
  • Five-year warranty

12G-SDI from Camera to Fiber, Edit, and More

Explore how AJA’s latest 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate, and deep color content over a single cable.

AJA FiDO 12G-SDI/optical fiber Mini-Converters, 12GDA distribution amplifier, 12GM muxer/demuxer, FS-HDR converter/frame synchronizer, and Io 4K Plus Thunderbolt 3-equipped audio and video I/O device with 12G-SDI support.

Specifications
Click to rate this post!
[Total: 0 Average: 0]
Video Formats (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080p 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
10 or 12-bit
Video Input and Output Digital 4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
Single Link 12G/6G/3G/1.5G-SDI
Dual Link 2x6G/2x3G/2×1.5G-SDI
Quad Link 4x3G Level A or B Dual Link/4×1.5G-SDI
Supported Conversions and Functions
  • Quad 3G-SDI Level A to Single 12G-SDI
  • Quad 3G-SDI Level B Dual Link to Single 12G-SDI
  • Single 12G-SDI to Quad 3G-SDI Level A
  • Single 12G-SDI to Quad 3G-SDI Level B Dual Link
  • Quad 3G-SDI Level A to Dual 6G-SDI
  • Quad 3G-SDI Level B Dual Link to Dual 6G-SDI
  • Dual 6G-SDI to Quad 3G-SDI Level A
  • Dual 6G-SDI to Quad 3G-SDI Level B Dual Link
  • Dual 3G-SDI Level A to Single 6G-SDI
  • Dual 3G-SDI Level B Dual Link to Single 6G-SDI
  • Single 6G-SDI to Dual 3G-SDI Level A
  • Single 6G-SDI to Dual 3G-SDI Level B Dual Link
  • Quad 1.5G-SDI to Single 6G-SDI
  • Single 6G-SDI to Quad 1.5G-SDI
  • Dual 1.5G-SDI to Single 3G-SDI Level A
  • Dual 1.5G-SDI to Single 3G-SDI Level B Dual Link
  • Single 3G-SDI Level A to Dual 1.5G-SDI
  • Single 3G-SDI Level B Dual Link to Dual 1.5G-SDI
  • Quad 3G-SDI Level A to Quad 3G-SDI Level B Dual Link
  • Quad 3G-SDI Level B Dual Link to Quad 3G-SDI Level A
  • Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
  • Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
  • HDR VPID pass-through or override for Colorimetry and Transfer Characteristic
  • Pass-through of Single Link 12G, 6G, 3G, 1.5G, and 270M SDI video
  • Distribution Amplifier support (1×4)
  • Input signal diagnostics
  • Input timing analyzer for Quad link signals
Cable Equalization (Belden 1694A coax)

12 Gbps, 70m
6 Gbps, 100m
3 Gbps, 140m
1.5 Gbps, 200m
270 Mbps, 300m

Audio Input/Output Digital Passes SDI embedded audio, 24-bit, up to 16-channels
User Interface USB port used with supplied cable and Mini-Config software application to configure the device and access diagnostics via macOS or Windows.
Size (w x d x h) 5.76″ x 4.02″ x 0.90″ (146.31 × 102.11 × 22.86 mm)
Weight 0.6 lb (0.3 kg)
Power 5-16 VDC regulated, 12 watts, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

*12GM uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling.
