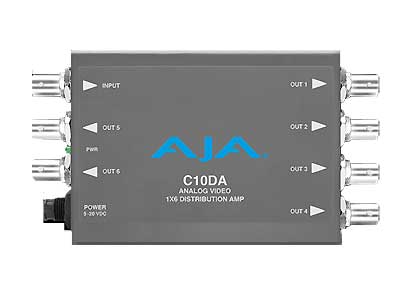

AJA C10DA Analog Video 1×6 Distribution Amplifier
SGD 308.25 excl. Tax
Weight | 4 kg |
---|
AJA C10DA Analog Video 1×6 Distribution Amplifier
AJA C10DA is a 1×6 analog distribution amplifier with support for NTSC and PAL offering the ability to distribute multiple copies of the incoming signal or extend content of composite video with gain adjustment to compensate for long cable runs where needed.
The C10DA can also be used to DA Tri-Level sync in an HD facility when a sync signal is fed externally into the Video Input.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Related Product:
- Compact 1×6 analog distribution amplifier
- Â NTSC
- Â PAL
- May be used to distribute tri-level sync when a sync signal is fed into the Video Input for HD workflows
- Low cost
- Five year warranty
Formats |
|
Inputs | 1 Analog, Differential, 1 x BNC |
Outputs | 6 Analog, 6 x BNC |
Termination | 75 Ohms or non-terminated |
Video Bandwidth | 0 – 6 MHz +/- 0.1dB |
Gain | -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB |
Diff Gain | 0.15%, not load dependent |
Diff Phase | 0.1 degree, not load dependent |
H/V Tilt | < 0.1% |
Response Variation | < 0.1dB 1 to 6 loads |
Coupling | DC |
Max Common Mode Signal | 10Vp-p |
Return Loss | Â > 35dB to 6 MHz all inputs and outputs |
Output Isolation | >40dB |
User Controls |
|
Size (w x d x h) | 5.8″ x 3.1″ x 1.0″ (147mm x 79mm x 25mm) |
Weight | 0.8 lb (0.3 kg) |
Power | 5VDC Regulated, 2 Watts, power supply required, included with purchase |
Environment |
|
