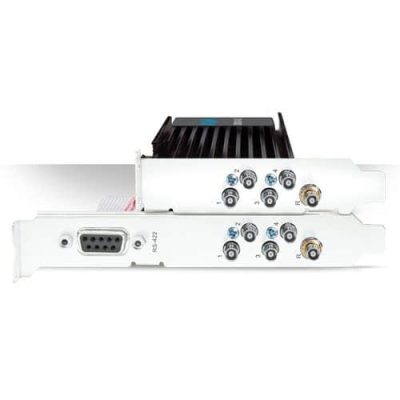

AJA Corvid 44 12G Compact 12G-SDI Power Multi-Format PCIe I/O Card

Video Formats

• (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94

Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.

Video Inputs Digital

• 12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
• 6G-SDI, SMPTE-2081, 10-bit and 8-bit
• 3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
• 4K/UltraHD 4:4:4 (4x BNC)
• 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit, 10-bit and 8-bit
• 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

Note: Corvid 44 12G SDI connectors are HD BNC

Video Outputs Digital

• 12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
• 6G-SDI, SMPTE-2081, 10-bit and 8-bit
• 3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit
• 4K/UltraHD 4:4:4 (4x BNC)
• 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit, 10-bit and 8-bit
• 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

Note: Corvid 44 12G SDI connectors are HD BNC

SDI I/O

• SDI connections are bidirectional
  • 2K/HD, capture and monitoring is simultaneous
  • 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.
  • 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output.
  • 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output.

Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.

Audio Inputs Digital

• 16-Channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous

Audio Outputs Digital

• 16-Channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous

Downstream Keyer

• Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte up to 4K/UltraHD

Reference

• Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via 1x HD-BNC at PCIe bracket)
• Reference input is terminated into 75 ohms when Genlock is set to Ref In

Timecode

• LTC timecode input (via 2-pin header on PCIe card)
• LTC timecode input (via HD-BNC at PCIe bracket)

Electrical Interface

• 8-lane PCIe 3.0

Noise

• <50dBA (A-weighted at 1m in free air)

Size (w x d x h)

• 0.75″ x 6.9″ x 5.0″ (19.05 x 175.26 x 127.00 mm)

Weight

• PCIe Card: ?0.6 lbs (0.3 kg)
• Cables (all combined): 0.6 lbs (0.3 kg)

Power

• 25W typical, 32W maximum
• PC Internal ATX Power Connector (Molex p/n 45559-0002)

Note: Unlike other Corvid cards, Corvid 44 12G can use either PCIe power from a 6 pin ATX connector, or via the PCIe slot.

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
