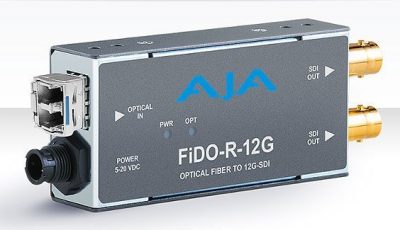

AJA FiDO-R-12G 1-Channel Single-Mode LC Fiber to 12G-SDI Receiver

SGD 1,328.90 excl. Tax

Weight 1.5 kg
SKU: FiDO-R-12G Category:
Description
Click to rate this post!
[Total: 0 Average: 0]

AJA FiDO-R-12G 1-Channel Single-Mode LC Fiber to 12G-SDI Receiver

AJA FiDO-R-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Specifications
Click to rate this post!
[Total: 0 Average: 0]
Video Formats
270 Mbps – 12 Gbps, format agnostic
Video Input Digital
1-Channel Independent 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
Overload Power: -2 dBm (min)
Video Output Digital
1-Channel Dual matching 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
All other rates are passed through and not reclocked
Size (w x d x h)
4.6″ x 1.71 ” x.85″ (117 x 43.5 x 21.6 mm)
Weight
0.4 lb (0.2 kg)
Power
2 watts (max)
Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
