AJA IPT-10G2-HDMI Bridging HDMI to SMPTE ST 2110 Video and Audio
SGD 2,168.71 excl. Tax
Weight | 1.5 kg |
---|

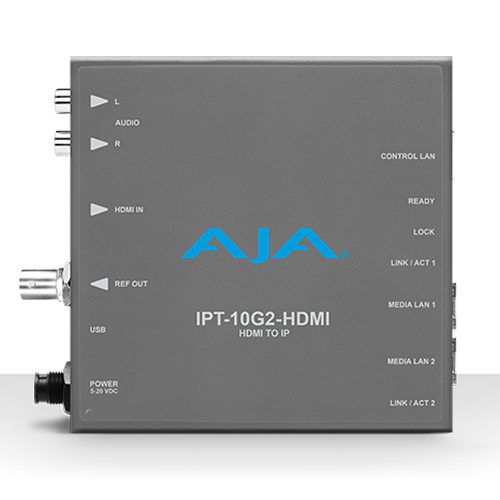

AJA IPT-10G2-HDMI Bridging HDMI to SMPTE ST 2110 Video and Audio Mini Converter
AJA IPT-10G2-HDMI Mini-Converter is designed to bridge HDMI HD signals to an SMPTE ST 2110 network.
The IPT-10G2-HDMI receives HD baseband video plus eight embedded audio channels on a full-size HDMI 1.4b interface, then formats the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream. Alternatively, stereo audio can be fed into the steam from the included RCA inputs.
2x 10 GigE SFP+ cages are provided, allowing “hitless switching” redundancy protection (ST 2022-7) for critical transmission environments.
User Control
IPT-10G2-HDMI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration and firmware updates.
- 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
- 1x USB 2.0 Mini-B (IEC 62680-1) connector
- AJA eMini-Setup of network parameters
- Web and REST clients supported
- NMOS transmits (Discovery, Registration, and Control)
- According to standards IS-04 v1.2 & IS-05 v1.0,.
- AJA REST API (Control Only)
- Discovery is supported via SSDP, allowing AJA REST API to then be used for Control
- Discovery is also supported via MDNS, allowing AJA REST API to then be used for Control
- Ember+ (no Discovery, Control only) v1.6.2
Video Formats
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i 50, 59.94
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
Video Quality
- 10-bit, 4:2:2, uncompressed
Media Transport Interfaces
- SMPTE ST 2110 (-10, -20, -21, -30)
- 2x SFP+ Cages – SFPs not included
- Recommended 10 GigE SFP+ modules:
- Arista Networks SFP-10G-SR Compatible 10GBASE-SR
- Fiberstore SFP-10GSR-85 10G SFP+ 850nm
- Finisar FTLX1471D3BCL (for single mode 1310nm)
- Mellanox MFM1T02A-SR 850nm 10G
Note: Maximum supported SFP+ power is 500 mW per SFP+ cage
Video Input Digital
- 1x HDMI Standard Type A connector
- HDMI v1.4b 24/30-bits per pixel
- Up to 1080 60p, 4:2:2, 10-bit, YCbCr/RGB
Audio Input Digital
- Up to 8-Channel, HDMI embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Input Analog
- 2x RCA analog audio
- Levels at -10 dBu (nominal)
Video Output IP
- SMPTE ST 2110
- Single video channel output
- SMPTE ST 2022-7 dual stream output for hitless switching
- Tx support for Narrow, Gapped Mode
Audio Output IP
- SMPTE ST 2110
- Up to 8 channels audio, 24-bit per channel, 48 kHz synchronous
- 1 ms or 125 ?s packet interval
- SMPTE ST 2022-7 dual stream input for hitless switching
Reference
- 1x BNC
- Reference Out connector generates an analog/tri-level reference output synchronized to the PTP clock
- This can be used to ensure the baseband video arriving at the IP transmitter is properly timed
Discovery, Registration and Control
- NMOS Tx discovery and control according to standards IS-04 v1.2 and IS-05 v1.0
- Ember+ control (no discovery, control only)
- AJA REST API control (discovery via SSDP or MDNS)
- Supported over dedicated management Ethernet port and in-band over media ports
IP Clock
- PTP support compliant with PTP PTPv2 / IEEE 1588-2008
- SMPTE ST 2059-1 compliant
User Controls
- 1x RJ-45 for 10/100/1000 Base-T Ethernet
- Web and REST clients supported for remote network setup and configuration
- 1x USB 2.0 Mini-B connector
- AJA eMini-Setup supported for network setup and configuration via local desktop computer
- Web and REST configuration is also supported in-band over media ports
Size (w x d x h)
- 5.07″ x 0.94″ x 5.06″ (128.78 x 23.88 x 128.52 mm)
Weight
- 0.6 lb (0.3 kg)
Power
- 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
IP Mini-Converter v2.3
Free Firmware Update for AJA 10 GigE IP Mini-Converter Transmitters/Receivers
New v2.3 firmware is now available for AJA’s 10 GigE IP Mini-Converter transmitters and receivers. Available as a free download, the update adds a new frame sync feature to support synchronizing unlocked sources with PTP for IPT-10G2 transmitters; new USB keyboard control for quick and easy preset recalls for IPR-10G2 and IPR-10G receivers, and support for NMOS 1.3 and LLDP for the full product lineup.
