AJA KONA 1 Streamlined Capture and Playback over 3G-SDI

Designed for broadcast, post and ProAV, as well as OEM developers, KONA 1 is a robust, cost efficient single-channel 3G-SDI 2K/HD 60p I/O card with serial control and reference/LTC. KONA 1 features standard application plug-ins and supports capture, monitoring and/or playback with software applications from AJA, Adobe®, Avid®, Apple®, Telestream and more as well as AJA SDK support.

KONA 1 enables simultaneous monitoring during capture (pass-through) and includes: full size SDI ports supporting 3G-SDI formats, embedded 16-channel SDI audio in/out, Genlock with reference/ LTC input and RS-422.

Powerful and Simple 3G-SDI Capture and Playback for 2K/HD up to 60p

AJA KONA 1 provides cost-effective and powerful professional 3G-SDI support for robust compatibility with Ingest, Editing and Visual Effects applications.

Capture, Monitor and Output frame accurately up to 2K 60p over 3G-SDI with Adobe, Avid, AJA Control Room and many more applications.

Reference and LTC spigots provide the professional frame stability and time code based reliability you need for broadcast, production, ProAV and creative finishing projects.

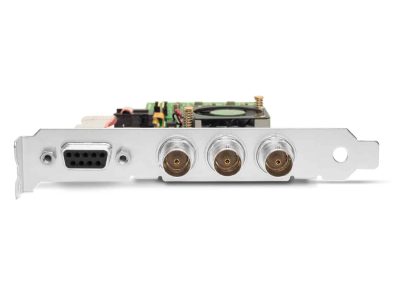

AJA KONA 1 Streamlined Capture

Workflow

Supporting macOS, Windows and Linux, AJA KONA 1 offers cost effective simple connectivity for a range of 2K/HD/SD workflows across 3G-SDI with video pass through on SDI out while capturing.

Powerful platforms for development partners.

AJA’s Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA’s expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.
AJA KONA 1 Streamlined Capture and Playback over 3G-SDI

Features

Single Channel 3G-SDI Capture or Playback up to 2K/HD 60p
Full size 3G-SDI BNC ports
PCIe 2.0 2-lane
Powerful creative applications support
Available in low profile PCIe 2.0 without external RS422 port (OEM only)
ANC capture and processing
8/10 Bit YCbCr and RGB framebuffer formats
16-ch SDI Embedded Audio I/O, 24-bit 48khz
HD/SD Genlock, Reference Video or LTC Input (selectable)
3-year warranty

Specifications

Video Formats	(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080PsF 23.98, 24, 25 (HD) 1080i 50, 59.94, 60 (HD) 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94
Video Input Digital	3G-SDI, SMPTE-259/292/296/424
Video Output Digital	3G-SDI, SMPTE-259/292/296/424
Audio Input Digital	16-Channel 24-bit SDI embedded, 48 kHz synchronous
Audio Output Digital	16-Channel 24-bit SDI embedded, 48 kHz synchronous
Reference / LTC Input	Analog Color Black or HD Tri-level sync LTC
Electrical Interface	2-lane PCIe 2.0
Machine control	RS-422, Sony 9-pin protocol 9-pin D-connector pinout
Size (w x d x h)	0.55" x 6.61" x 2.16" (13.97 x 167.89 x 54.86 mm)
Weight	0.3 lb (0.2 kg)
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
