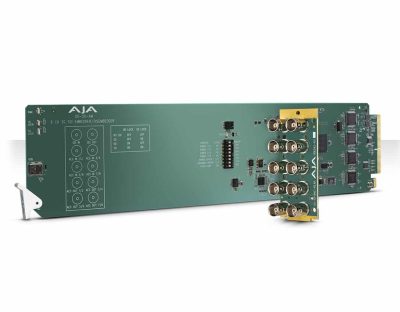

AJA OG-3G-AM OpenGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder
The AJA OG-3G-AM is a state of the art, openGear compatible, 8-channel AES audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p/60. Simple user controls allow channel enabling and mapping. A 10 BNC rear Open Gear connector module is included.
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
The AJA OG-3G-AM provides a 3G-SDI input and 3G-SDI output with 4 x AES BNC connectors in each direction. OG-3G-AM automatically detects and configures to the input video standard. AES inputs are sample rate converted (SRC) to 48KHz synchronous to the video input. Audio disembedding is always functional, providing 4 AES outputs. Audio embedding is user selectable, on a channel-pair basis, to either embed input AES audio or pass 3G-SDI input audio. Simple user controls allow channel enabling and mapping.
