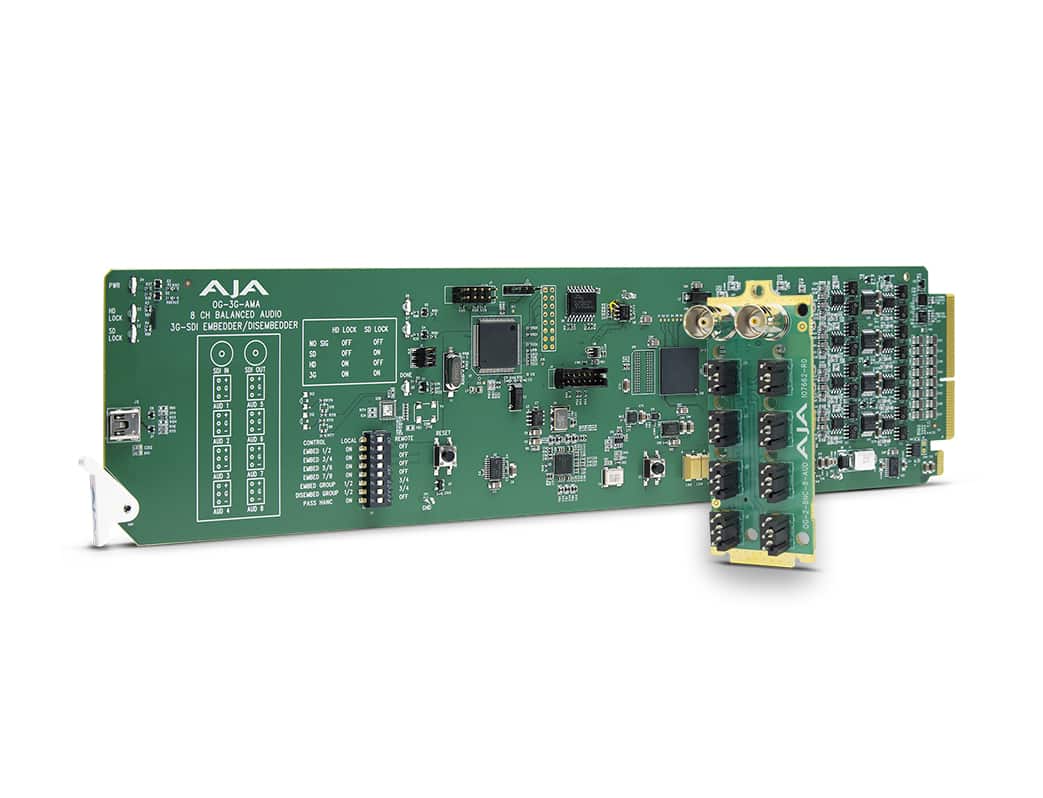

AJA OG-3G-AMA 3G-SDI Analog Audio Embedder
Click to enlarge
Home » Shop » Video » Video Capture Cards » Open Gear » AJA OG-3G-AMA OpenGear 3G-SDI Analog Audio Embedder/Disembedder
AJA OG-3G-AM OpenGear 3G-SDI AES Embedder
AJA OG-3G-AM OpenGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder SGD 1,081.20 excl. Tax
Back to products
AJA FS-HDR Real Time HDR/WCG Conversion
AJA FS-HDR Real Time HDR/WCG Conversion with Colorfront Engine Video Processing SGD 13,015.20 excl. Tax

AJA OG-3G-AMA OpenGear 3G-SDI Analog Audio Embedder/Disembedder

SGD 1,360.00 excl. Tax

Weight 1.5 kg
AJA
SKU: OG-3G-AMA Category:
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

AJA OG-3G-AMA OpenGear 3G-SDI Analog Audio Embedder/Disembedder

An openGear 8-Channel analog audio embedder/disembedder, AJA OG-3G-AMA supports 3G-SDI input and output up to 1080p 60, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.

Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 3G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.

Designed for use in high-density openGear?s 2RU frames including AJA?s OG-3-FR 2RU frame, new DashBoard Software support on Windows?, macOS? and Linux? offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Download DashBoard Software

AJA OG-3G-AMA 3G-SDI Analog Audio Embedder
Dashboard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.

For the latest DashBoard software downloads for your platform of choice, please visit:?http://www.opengear.tv/dashboard-software/#support_box

AJA OG-3G-AMA openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The AJA OG-3G-AMA optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

AJA Quality Guaranteed

AJA OG-3G-AMA 3G-SDI Analog Audio Embedder
All AJA products are covered by a five year warranty and AJA’s advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, insuring you are up and running again as quickly as possible.

Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
Video Formats (2K) 2048 x 1080p
(2K) 2048 x 1080PsF
(HD) 1920 x 1080p
(HD) 1920 x 1080PsF
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 576i
(SD) 720 x 480i
Video Input Digital 1x 3G-SDI BNC, SMPTE-259/292/372/424
Video Input Formats 1x 3 Gb SDI (level A or B)

  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60

1x 1.5 Gb SDI

  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1x 270 Mb SDI

  • (SD) 625i 50
  • (SD) 525i 59.94
Video Output Digital 1x 3G-SDI BNC, SMPTE-259/292/372/424
Video Output Formats Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.

Video Latency, time measured between video input and video output connector:

  • 3G level A = 3.2 usec
  • 3G level B = 6.1 usec
  • HD (1.5 Gb) = 6.3 usec
  • SD (270 Mb) = 17.2 usec
Audio Inputs and Outputs
  • Audio Connectors
    • 8 Analog Audio
      • 4x 2-Pair Balanced Analog Audio 3-Pin Terminal Block connectors; 8 Channel In, 8 Channel Out or 4 Channel In & 4 Channel Out
  • Digital Audio Converters
    • 24-bit
  • Embedded Audio
    • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
    • SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
    • Incoming embedded audio can be passed, removed, or overridden.
    • 16 Channels supported on the SDI at any given time (8 of which can be from the analog inputs).
  • Embed Path Audio Latency, time measured between audio input and video output connector:
    • 1100 usec
  • Disembed Path Audio Latency, time measured between video input and audio output connector:
    • 1200 usec
  • Analog Audio Levels
    • Configured via Dashboard software:
      • Pro 1: 0 dBfs = +24 dBu
      • Pro 2:0 dBfs = +18 dBu
      • Pro 3: 0 dBfs = +15 dBu
      • Consumer 1: 0 dBfs = +12 dBu
User Controls External DIP switch
openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h) openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight 0.5 lb (0.3 kg)
Power openGear frame compatible, 5.0 watts max per card
Environment Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
