AJA OG-FiDO-R-MM Multi-Mode LC Fiber to 3G-SDI Receiver
SGD 1,168.61 excl. Tax
Weight | 3 kg |
---|

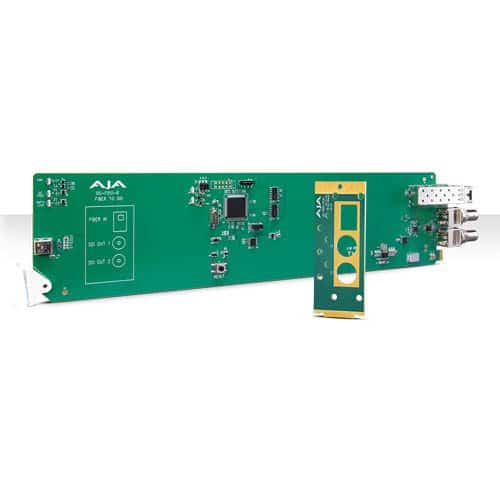

AJA OG-FiDO-R-MM Multi-Mode LC Fiber to 3G-SDI Fiber Converter
AJA OG-FiDO-R-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables – useful for eliminating ground loop problems.
Designed for use in high-density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS®, and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring, and control options over a PC or local network.
Connectivity
The Fiber input is reclocked with best-in-class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Supports Multi-Mode fiber cable.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Video Formats
- 150 Mbps – 3 Gbps, format agnostic
Video Input Digital
- 1-Channel Multi-Mode LC Fiber Input, SMPTE-297
- Nominal Wavelength: 850 nm
- Optical Sensitivity: -15dBm (min)
Video Output Digital
- 1-Channel Dual matching 3G-SDI BNC Outputs, SMPTE-259/292/424
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
- All other rates are passed through and not reclocked
User Interface
- openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)
- openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight
- 0.5 lb (0.3 kg)
Power
- openGear frame compatible, 2.5 watts max per card
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
