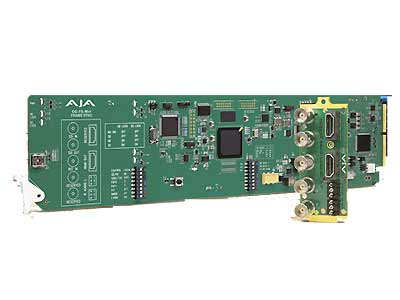

AJA OG-FS-MINI Frame Synchronizer
AJA OG-FS-Mini is an openGear broadcast quality utility frame sync that packs the production-proven reliability of AJA’s leading FS frame sync technology into an openGear card, supporting frame synchronization of untimed 3G-SDI, HD, and SD video signals at an affordable price.
OG-FS-Mini allows users to synchronize and convert a wide range of video formats to their house standard with a 3G-SDI input and output, HDMI output, and two 3-pin terminal block connectors for balanced analog audio outputs. The OG-FS-Mini also provides high-quality up, down, and cross-conversion.
OG-FS-Mini is designed for use in high-density openGear’s 2RU frames including AJA’s OG-X-FR frame. Dashboard software support on Windows®, macOS® and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring, and control options over a PC or local network.
Simplified Block Diagram
OG-FS-Mini is designed to meet the demands of broadcast engineering and live event production while providing incredible flexibility. It receives an untimed signal, frame syncs it, processes it and automatically routes it to both the SDI output for use in production and the HDMI output for monitoring. The user selects which 2-channels of audio are routed to the balanced analog audio monitor outputs.
OpenGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optionally redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible OpenGear cards.
Dashboard Software
Dashboard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.
Features
Click to rate this post!
[Total: 0 Average: 0]
- openGear compatible card
- Utility frame sync function times input signals to an external reference
- Supports bi-level and tri-level references
- High quality 10-bit video processing
- Low latency processing, nominal video delay of 1 frame
- Freeze (on input signal loss) to black or last good frame
- Synchronizes 3G, HD and SD video formats
- Simultaneous SDI and HDMI outputs
- 16-channel embedded SDI audio I/O
- 8-channel HDMI output audio
- 2x 3-pin terminal block connectors for analog audio output
- Utility frame rate conversion, supports 3:2 pulldown
- Up, down, cross conversion between 3G, HD and SD video formats
- AFD input detection, down-convert control
- Remote configuration through Ross DashBoard software
- The rear I/O card included
- Compatible with OG-X-FR, OG-3FR and DFR-8321 openGear frames
- Five year warranty
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Video Formats |
|
| Video Input Digital |
|
| Video Output Digital |
|
| Monitor Output Digital |
|
| Video Processing |
|
| Up-Conversion |
|
| Down-Conversion |
|
| Cross-Conversion |
|
| Aspect Ratio Conversion for SD to SD |
|
| Audio Input Digital |
|
| Audio Output Digital |
|
| Audio I/O |
|
| Ancillary Data |
|
| Reference Input | Supported reference video inputs include:
|
| Genlock |
|
| HDCP | The OG-FS-Mini does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the OG-FS-Mini are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs. |
| User Interface |
|
| Size | openGear standard form factor, front slot and rear card. Two slots required for each card |
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 7.0 watts max per card |
| Environment |
|
