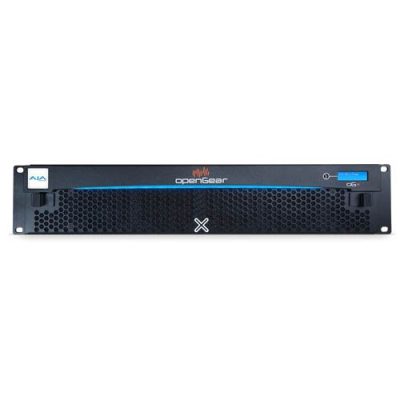

AJA OG-X-FR OpenGear-Compatible 2RU Rackframe
SGD 1,194.64 – SGD 2,624.92 excl. Tax excl. Tax
- 2RU frame with capacity for up to 20 openGear cards
- 600 watt power supply with integral cooling
- Front LCD display for name, IP address and fault identification
- FrameGlow customized identification and alarming
Weight | N/A |
---|---|
Choose Product Variants |
OG-X-FR ,OG-X-PS |
AJA OG-X-FR OpenGear 2RU Rackframes
AJA OG-X-FR openGear is an open-architecture, modular frame system designed by Ross Video and supported by a diverse range of terminal equipment manufacturers, including AJA.
The AJA OG-X-FR is a 2RU high openGear frame that is compatible with any openGear card and offers Dashboard support for the latest AJA Dashboard-compatible openGear cards. The frame has a 20-slot capacity with excellent cooling capabilities for high-density applications and compatibility with advanced openGear connectivity options for supported cards.
Smart Control
One control system unites all openGear suppliers: DashBoard for setup, real-time control, monitoring, and tools for creating customized workflow through Custom Panels. The optional Advanced Networking controller from ROSS features DataSafe, which automatically saves and restores settings if a module is swapped.
OpenGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
Cooling
While many of AJA’s openGear cards are energy-efficient, the high-density nature of rackmount cards can generate heat in a small space. Integrated fans in the OG-X-FR keep internal components operating at acceptable temperatures, leading to improved reliability and longer card life.
OG-X-FR offers more power and cooling for the most demanding UltraHD, 12G SDI & IP workloads.
Smart Power
OG-X-FR accommodates 2 front-loaded, hot-swappable power supplies. Each power supply contains an independent cooling fan, status LED, and a front-mounted power switch.
- Total system power of 600W
- New high power mode allowing 23W per slot
OG-X-FR ships with a power supply included. When seeking redundancy for extra security in critical environments, order an additional OG-X-PS,
Frame Controller and Fans
- Total Power: 50W maximum
- Max. Power: +12V Rail 4A, 48W
- Max. Power: -7.5V Rail 0.2A (1.5W)
GFC-8322
- Total Power: 3.9W maximum
- Max. Power: +12V Rail 0.2A (2.4W)
- Max. Power: -7.5V Rail 0.2A (1.5W)
Reference Inputs
- Number of Inputs: 2 looping
- Level: 1Vpp nominal
- Signal: Analog video sync (Blackburst or tri-level), or AES/EBU DARS
- Impedance: 75 ohms terminating
- Return Loss: >30 dB to 30 MHz
- Maximum DC on REF Input: ?1V
Card Slots
- 20 Slots
- Total Power Available: 500W
- Maximum Card Power:
- High Density (Split) Rear Module: 15W per card, accommodates two openGear cards and requires two slots in the frame chassis
- Standard Rear Module Accommodates one openGear card and requires two slots in the frame chassis: 30W per card, or 45W if the openGear card has integrated cooling.
- Double Wide Rear Module: 60W per card, or 75W for a single card with integrated cooling, or 90W for a multi-slot assembly with integrated cooling and receiving power from two or more midplane connectors.
Size (w x d x h)
- 2RU 3.5? x 19.0″ x 17.7″ (88.9 x 482.6 x 449.58 mm)
Power
- Total?? ?Sum of both outputs not to exceed 500W
- Input: 6.3A (650W)
- Output 1: 12V 41.6A, 500W maximum
- Output 2: -7.5V 5A, 37.5W maximum
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Operating Relative Humidity: <90% noncondensing
