Aputure Amaran P60X Expanded Bi-color LED Panel

SGD 231.53 excl. Tax

Product Highlights:

  • 60W Output Bi-Color Lensed LED Panel
  • 78W Max Power Draw & 5,070+ lux @ 1 meter (5600K)
  • CCT: 3,200K to 6,500K Expanded Bi-Color
  • Super Accurate Color Rendition, CRI: ≥95, TLCI: ≥97, SSI
  • D-Tap Battery: Operable using “D-Tap Power Cable (2-Pin)”
Weight 12 kg
SKU: Amaran P60X Category:
Description
Click to rate this post!
[Total: 2 Average: 5]

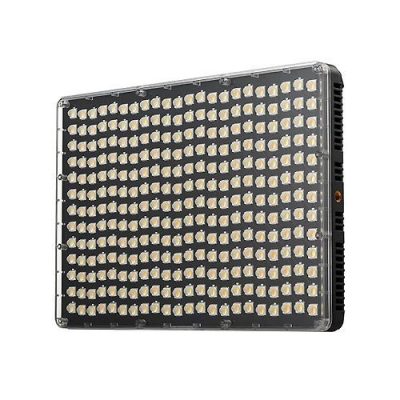

Aputure Amaran P60X Bi-color Lensed LED Panel

Amaran P60X is an expanded bi-color LED panel designed for content creators, videographers, and indie filmmakers. Its optical design (45°) allows the P60x to use its 60W bi-color LED chipset to produce high-intensity light output, measuring a staggering 5,070+lux at 1 meter (5600K). In addition, using the control knobs or the built-in Sidus Link App integration, users can adjust the color temperature of the P60x between 3200K-6500K. Using the Sidus Link app, users can also take advantage of specialized tools such as Source Match and Custom FX.

The Amaran P60x also accomplishes these feats while maintaining excellent color rendering scores of CRI ≥95 and TLCI ≥97. The P60x can be operated using the included AC Power Supply or two Sony NP-F Style batteries for over an hour. When connected to AC Power, the P60x can also charge NP-F Style batteries, making it the perfect multi-tool for content creators. With the unique design of the P60x, users can attach the included collapsible softbox to the four corners of the panel without any tools or screws. The P60x also includes a 45° light control grid for the softbox, limiting spill light and easily attaching using hook-and-loop fabric.

The Amaran P60 series is compact, lightweight, and portable, making it a flexible tool for any video.

The Amaran P60x is ideal for content creators, indie filmmakers, and videographers who need a portable and flexible lighting solution that can use or charge NP-F Style batteries, in addition to AC power.

Creators who prefer a simple bi-color experience compared to a full-color panel will realize the P60x is the perfect companion for their shooting style.

The optical design of the panel light gives the naturally medium-sized source strong output while maintaining the ability to be softened in less than a minute with the included collapsible softbox.

The Sidus Link App integration also makes the Amaran P60x perfect for users who prefer to adjust settings without touching their light so they can spend more time in front of or behind their camera.
With the Source Match function, matching the color temperature of the environment has never been easier.

Related Products:

Aputure

Amaran P60c 3-Light Kit 60W Output RGBWW Lensed LED Panel

Amaran P60X 3-Light Kit 60W Output Bi-Color Lensed LED Panel

Specifications
Click to rate this post!
[Total: 2 Average: 5]
CCT 3200K~6500K
CRI ≥95
TLCI ≥97
CQS ≥95
TM-30 RF (Average) 93
TM-30 RG (Average) 104
SSI (Tungsten) ≥84
SSI (D56) ≥72
Beam Angle (Half-Peak Angle) 45°
Max Power Output ≤60W
Max Power Consumption ≤78W
Operating Current 4.5A
Voltage (AC Power Supply) 15V DC
Voltage (D-Tap Battery) 12-16.8V DC
Voltage (NP-F Battery) 6.5V-8.4V DC
Battery Charging (Type) Sony NP-F Style
DC Input 2-Pin DC Self-locking Waterproof
AC Power Cable Self-locking IEC C13 AC Power Cable (1.5m)
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Control Methods On-board, Sidus Link App
Connectivity Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range ≥80m / 262.5ft
Firmware Upgradeable Sidus Link OTA
Display Type OLED
Cooling Method Active Cooling
Mounting 1/4-20in * 3, Tilting Support Column
Estimated LED Lifetime (L70) 50,000 Hours
Estimated Color Shift Over Lifetime (CCT) 2% over 6,000 Hours
Certifications CE, FCC, cTUVus, KC, NCC, ROHS

Dimensions

Fixture 25.1*17.5*3.95cm / 9.8*6.8*1.5in
Aperture 25.07*17.37cm / 9.87*6.84in
Soft Box (Collapsed) 20*20*2.5cm / 7.87*7.87*9.84in
Soft Box (Built) 39.5*28.5*10cm / 15.55*11.22*3.94in
Carrying Case 25.7*18*9.5cm / 10.12*7.09*3.74in

Weight

Fixture 0.979kg / 2.15lbs
Soft Box 0.17kg / .37lbs
Power Supply 0.50kg / 1.1lbs
Mounting Bracket 0.24kg / .52lbs

Photometrics

CCT Distance No Softbox With Softbox
.5M 17,570 lux / 1,632 fc 3,480 lux / 323 fc
3200K 1M 4,860 lux / 452 fc 971 lux / 90 fc
2M 1,280 lux / 119 fc 254 lux / 24 fc
3M 539 lux / 50 fc 116 lux / 11 fc
.5M 17,670 lux / 1,642 fc 3,560 lux / 331 fc
4300K 1M 4,940 lux / 459 fc 991 lux / 92 fc
2M 1,283 lux / 119 fc 261 lux / 24 fc
3M 550 lux / 51 fc 119 lux / 11 fc
.5M 18,120 lux / 1,683 fc 3,660 lux / 340 fc
5600K 1M 5,070 lux / 471 fc 1,023 lux / 95 fc
2M 1,328 lux / 123 fc 268 lux / 25 fc
3M 572 lux / 53 fc 123 lux / 11 fc
.5M 18,410 lux / 1,710 fc 3,730 lux / 347 fc
6500K 1M 5,180 lux / 481 fc 1,041 lux / 97 fc
2M 1,354 lux / 126 fc 273 lux / 25 fc
3M 585 lux / 54 fc 126 lux / 12 fc
In The Box
Click to rate this post!
[Total: 2 Average: 5]
  • Amaran P60x  x 1

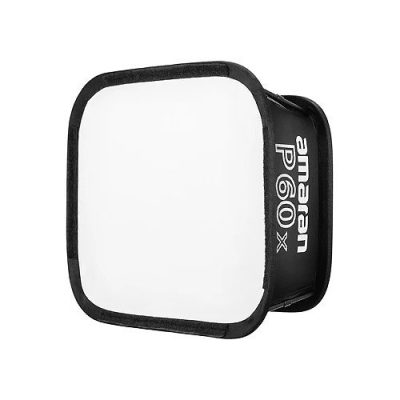

  • Amaran P60x Soft Box x 1

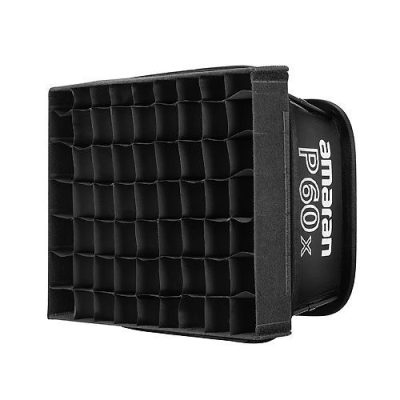

  • Amaran P60x Soft Box Light Control Grid x 1
  • AC Power Supply x 1
  • AC Power Cable x 1
  • Tilting Mounting Support with 1⁄4-20in & 3/8-16in Spigot x 1

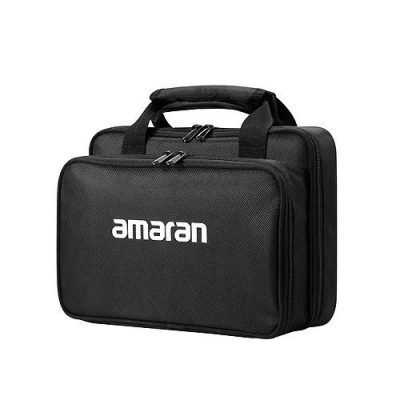

  • Amaran P60x Carrying Case x 1
