Atomos Ninja Ultra 5-inch HDR Monitor Recorder for Mirrorless cameras

Name: Atomos Ninja Ultra 5-inch HDR Monitor Recorder for Mirrorless cameras
Brand: Atomos
SKU: ATOMNJAU01
Price: 791 USD
Availability: InStock
Rating: 5 (7 reviews)

SGD 1,083.67 excl. Tax

Key Features:

Dual 4Kp60 ProRes RAW & proxy recording for offline or Cloud
Auto matched filenames from ARRI, Canon, RED & Sony cameras
Share live views from your screen over the internet
8K ProRes RAW, ProRes, DNxHD & H.265 – all for free
Record & upload high bitrate 4K files to the Cloud

We are providing 2 x Free Session of Screen Color Calibration when purchased from us. This free service is only available in our Singapore Store.

Weight	3 kg

SKU: ATOMNJAU01 Category: HDMI / SDI

Description

Click to rate this post!

[Total: 7 Average: 5]

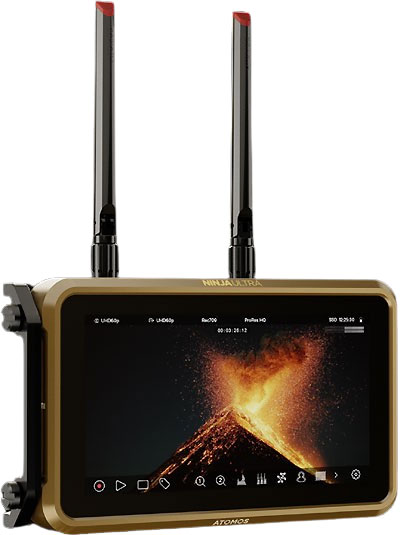

Atomos Ninja Ultra 5-inch, 1000nit HDR Monitor Recorder

The Atomos Ninja Ultra sets new standards in professional video production, offering high-end features tailored for modern filmmakers. It can record ProRes RAW up to 8K 30P, 6K 60P, and 4K 120P, ensuring pristine quality and flexibility across projects. Supporting codecs like ProRes RAW, ProRes, DNxHD, and H.265 (HEVC), this versatile monitor recorder adapts to the most demanding workflows.

Advanced Monitoring and Recording

Equipped with the AtomOS 11 operating system, the Ninja Ultra brings an elevated monitoring and recording experience. New features like RecordAssist and PlayBackAssist simplify pre-arranged and remote shots, while advanced false color tools, including Arri False Color and EL Zone, optimize image precision. These tools are crucial for filmmakers aiming for unmatched visual accuracy and control during production.

ProRes RAW and H.265 Cloud Recording

The Atomos Connect module enhances cloud integration, allowing ProRes RAW and H.265 dual recording directly to the cloud. This enables Camera to Cloud workflows with 4K H.265 instant publishing. With SDI Cine features, filename, timecode, and record triggers are automatically matched from SDI cameras, streamlining production and minimizing manual input.

Wireless Screen Sharing for Seamless Collaboration

The Atomos Connect module also allows wireless screen sharing across multiple devices. Users can share footage instantly using Shogun Connect, iPads, Macs, or Apple TV. The RemoteView feature includes full audio support, facilitating smooth communication and collaboration during production, even in real-time environments.

Comprehensive I/O Options

Supporting a broad range of cameras, the Ninja Ultra integrates professional I/O features like 12G-SDI, AirGlu wireless timecode and control, and 4K NDI support. These options ensure compatibility with everything from entry-level mirrorless cameras to high-end professional models, offering flexibility across various shooting environments. Wi-Fi 6E provides a stable connection for efficient cloud workflows, maximizing video transfer speeds and minimizing latency.

Bright, Compact Monitor for On-the-Go Filmmaking

The Ninja Ultra includes a 5.2-inch 10-bit HDR display with 1000nits brightness, designed for outdoor and mobile use. Its compact size and durability make it a perfect companion for filmmakers working in dynamic environments. With the AtomOS 11 interface, users benefit from enhanced visibility and intuitive navigation, streamlining the process of making adjustments during a shoot.

Cloud-Enabled Workflows

The Atomos Connect module transforms the Ninja Ultra into a hub for cloud-based workflows. With support for Camera to Cloud, Atomos Edit, and RemoteView, users can integrate these features directly into their production pipeline. The module also offers 12G-SDI, AirGlu wireless control, and Wi-Fi 6E for optimized cloud performance. GigE Ethernet adds wired network connectivity, ensuring stable, high-speed uploads.

Ninja Ultra Dual Recording Capabilities

Dual recording modes allow filmmakers to simultaneously capture footage in ProRes RAW and H.265 formats. This feature supports efficient workflows, especially during scripted productions or when daily footage needs quick review and sharing. The 4K 60p ProRes RAW and HD 60p H.265 formats ensure high-quality recordings across different formats, catering to both broadcast and cinematic needs.

NDI Technology for Real-Time Networking for Ninja Ultra

The integration of NDI technology enables the Ninja Ultra to function as an NDI 4K source within an NDI network. Other NDI-compatible devices in the local network can recognize and use the Ninja Ultra as a live feed source. This feature is ideal for productions requiring live broadcasts or real-time collaboration between multiple cameras and displays.

Leveraging Wi-Fi 6E for Cloud Workflows

With Wi-Fi 6E, the Ninja Ultra takes advantage of increased bandwidth and lower latency, ensuring faster uploads and smoother connections during cloud-based production. This technology maximizes the performance of Atomos Cloud Studio, making cloud workflows more efficient by reducing interruptions and improving overall data throughput. These advancements give filmmakers a competitive edge, allowing seamless, fast content delivery.

Compatible with Major Editing Software

The Ninja Ultra integrates seamlessly with major editing platforms. It supports over 55 cameras for RAW recording over HDMI, including ProRes RAW up to 8K. By offering broad codec compatibility, it caters to editors working with Adobe Premiere, Final Cut Pro, Avid Media Composer, and other industry-standard programs. This flexibility ensures that post-production processes remain smooth, regardless of the chosen workflow.

High Compatibility Across Cameras

Thanks to close partnerships with major camera manufacturers, the Ninja Ultra ensures flawless compatibility with a growing list of DSLRs, mirrorless cameras, and cinema cameras. From HDMI to SDI, the device supports various input types, making it versatile across multiple platforms and ensuring that filmmakers aren?t restricted by hardware limitations. These partnerships also allow the device to continually expand support for newer camera models.

Flexible Codec Support for Diverse Workflows

Supporting multiple codecs like ProRes RAW, ProRes, DNxHD, and H.265, the Ninja Ultra gives filmmakers control over file formats to suit specific production needs. Whether shooting feature films, commercials, or online content, this flexibility ensures optimal quality while maintaining manageable file sizes for post-production.

Future-Proof Features for Growing Demands

The Ninja Ultra?s robust set of features, including dual recording modes, cloud integration, and NDI technology, ensures that it is equipped to handle both current and future production challenges. Filmmakers can count on the device to keep up with emerging trends, from 8K workflows to real-time collaborative editing, making it a reliable long-term investment for both independent creators and large production houses.

Atomos Ninja Ultra Key Features Summary:

8K, 6K, and 4K ProRes RAW recording
Supports ProRes, DNxHD, and H.265 codecs
12G-SDI, AirGlu wireless, and 4K NDI
Bright 5.2-inch 1000nit HDR display
Wi-Fi 6E and cloud-based workflows
Dual recording: ProRes RAW and H.265
NDI 4K real-time networking integration

To view more Atomos Products

Other Site:

Our Blog

Ninja 5 and Ninja Ultra 5 On-Camera Monitors

Indhu UC added on 03 Oct 2023
MT-SS-5mar24
SS-MC-22Sep24
Indhu-Images Added-7Oct24
IM-AV-23Dec24

Features

Click to rate this post!

[Total: 7 Average: 5]

Lightweight, tough, and reliable monitor recorder with advanced monitoring and recording features.
Capture in ProRes RAW up to 8K 30P, 6K 60P & 4K 120P
Flexible codec choice – ProRes RAW, ProRes, DNxHD & H.265 (HEVC) – all for free.
Dual RAW record for Camera to Cloud workflows – capture 4Kp60 ProRes RAW & H.265 simultaneously
SDI Cine’s new feature for automated matching filenames, timecode, and record triggers from ARRI, Canon, RED, and Sony SDI cameras
New AtomOS 11 improves memory management, boosts responsiveness, and unleashes new features
Publish directly from the cloud with 4K H.265 Camera to Cloud mode
Faster and stronger connectivity with Wi-Fi 6E
Share what’s on your Atomos screen with other Atomos Connect users, as well as with Shogun Connect, iPads, Macs, and Apple TVs wirelessly in the same premises or anywhere in the world with Atomos RemoteView.
An additional advanced industry-leading suite of monitoring tools with a one-touch operation like SegmentPro, EL Zone, and ARRI False Color added in combination with other monitoring tools like Vectorscopes, Zebra, Atomos False Color, Onion Skin, etc.
New monitoring tools to arrange in advance recording and playback with RecordAssist and PlayBackAssist.
Same form factor as NinjaV, all Accessories are compatible with the new Ninja Series (Ninja & Ninja Ultra)

Specifications

Click to rate this post!

[Total: 7 Average: 5]

Physical Specifications

Dimensions (W x H x D mm): 151 x 91.5 x 31mm
Weight: 360g / 12.7oz
Rack height
Mount points: 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom
VESA Mount
Rackmount
Dual Display
Dual Recorder

Environmental

Ambient operating temperature: Up to 40 degrees Celsius
Storage temperature
Relative humidity

Construction & Control

Body: Aluminium with ABS plastic
Cooling: Actively controlled fan and heat sink
Tally light: Rear and front
Control Buttons
Multi-function button: Power/lock screen
AtomXpansion slot: Yes
Master control unit (MCU)

Power

Input voltage: 6.2V to 16.8V
Operating power: 5.8-7.2v (Battery) or min 30W via USB C PD cable
Compatible batteries: NPF L series
Built-in battery: No
Battery voltage
Battery run time Record: 5200mAh – up to 2hrs (monitor & record 4K 60p)
7800mAh – up to 3hrs (monitor & record 4K 60p)
Battery run time Monitor Only
Continuous power
DC in the connector: Via DC jack on battery eliminator
DTAP: Via battery eliminator and optional DTap to DC cable
DC out

Display

Touchscreen: SuperAtom IPS panel (capacitive touch)
Size: 5.2-inch
Resolution: 1920 x 1080
Viewing angle
Screen coating
PPI: 427
Bit depth: 10-bit (8+2 FRC)
Backlight Type: Edge-lit
Brightness (cdm2 / Nits): 1000
Black Level (cdm2 / Nits)
Aspect ratio: 16/9
De-interlace mode
Color Gamut: Rec.709
Calibration support: Atomos Calibrator with Calibrite ColorChecker Display Pro & ColorChecker Display Plus

Color Pipeline

Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,
Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,
JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm
Flog, PQ (HDR10), HLG, Nikon N-Log
Gamut: Bt2020, DCI P3, PDCI p3 65 Sony SGamut / SGamut3 / SGamut3.cine /
Canon Cinema / DCI P3 / DCI P3+ / BT2020
Panasonic V Gamut
Arri Alexa Wide Gamut
Rec709
JVC LS300
Red DragonColor / DragonColor2 / RedColor2 /
RedColor3 / RedColor4 / RedWideGamut
3D LU+A76T Display: .Cube Format
3D LUT Down Stream: Loop out
3DLUT 50/50: Yes
Monitoring Modes: Native / HLG / PQ / 3D LUT
HDR output Conversion: Log / HDR to HLG / PQ / Dolby Vision

Video Input

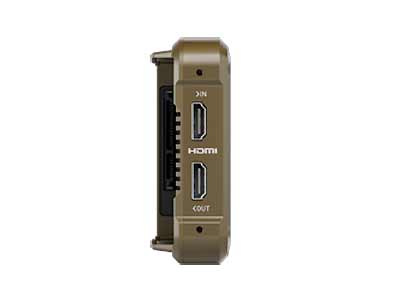

HDMI: 1 x HDMI (2.0) 4Kp60
HDMI RAW: Apples ProRes RAW up to 8Kp30 from compatible cameras
SDI: Optional Via Atomos Connect module
SDI RAW: Optional Via Atomos Connect module
RJ45 / Network
Wi-Fi
USB
Bit Depth: 8/10-bit video / RAW up to 16-bit
Video Chroma Subsampling: 4:2:2
HDCP copy protection: Not supported

Metadata

HDMI: RAW – white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut
SDI: File Naming from ARRI, RED, Sony, and Canon cameras
External input
Closed captioning

Video Output

HDMI: 1 x HDMI (2.0) 4Kp60
SDI loop out
SDI Playout
RJ45 / GigE: Optional Via Atomos Connect module
Wi-Fi 6E: Optional Via Atomos Connect module
Multiview
OS overlays
Video Chroma Subsampling: 4:2:2
Bit Depth: 10-bit video
Pattern Generator

Web Streaming

USB UVC: Optional Via Atomos Nexus 4K or AtomX Cast
RJ45 / GigE: Optional Via Atomos Connect module
RTMP / S: Optional Via Atomos Connect module
RTSP
SRT

Video Signal Conversion

HDMI to SDI: Optional Via Atomos Connect module
SDI to HDMI: Optional Via Atomos Connect module

Audio In/Out

Audio Quality: 24/48kHz
Audio Codec: PCM
HDMI : 8ch 24-bit, input dependent
SDI: 12ch 24-bit, input dependent
Analogue Audio in: 3.5mm 2ch.
Analogue Audio Out
Speakers
Headphone out: 3.5mm 2ch.
Audio input delay: User definable from the menu

Timecode / Sync / Control

Embedded: HDMI and SDI
Time of day: Yes, Time and Date
Reference input
LTC: Optional Via Atomos Connect module
Genlock: Optional Via Atomos Connect module
Wireless AirGlu RF Server and Client: Optional Via Atomos Connect module
Wireless AirGlu BT Server: Optional Via Atomos Connect module

Resolution & Frame Rates (Record, Monitor & Playback)

Supported base resolution & FPS
8K: RAW Only up to 30p via HDMI
6K: RAW Only up to 60p via HDMI
5K
4K DCI: 23.98/24/25/29.9/30/50/59.94/60p
4K UHD: 23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 1080: Optional via AtomX SDI module
Anamorphic: 3.5k: RAW up to 60p (from supported cameras only)
FHD 1920 x 1080 Progressive: 23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsF: Converted to P and looped out PsF
FHD 1920 x 1080 Interlaced: 23.98/24/25/29.9/30/50/59.94/60i
1280 x 720p: 50/59.94/60p
SD PAL / NTSC

Recording CODEC

CDNG
Apple ProRes Raw: ProRes RAW, HQ
Apple ProRes: LT, 422, 422HQ
Avid DNxHD: DNxHD 220x,220,145,36
Avid DNxHR: LB, SQ, HQ, HQX.
H.265: LQ,MQ,HQ,XQ in 8/10Bit, 4 2 2 and 4 2 0
H.264

Playback

Playlist: Yes, Create customer playlists from full or sub clips
Loop: Yes, with user customizable in / out markers
CDNG
Apple ProRes Raw: Yes, recorded clips
Apple ProRes: Yes, with Linear PCM audio
Avid DNx: Yes, with Linear PCM audio
H.265: Yes
H.264

Recording functions

Pre-roll record: Yes (HD 8s, 4K 2s) – Not available in RAW
ISO Record
Switched Program Record
Timelapse: Yes
RAW to Video Record
Simultaneous proxy record: Yes
4k to HD

Multi-Input / Switching

SDI A/B toggle
Dual Input display
Multiple SDI input
Multiple HDMI input: Optional via AtomX Cast
Multiview Display: Optional via AtomX Cast
Multiview Output: Optional via AtomX Cast
Picture in Picture (PIP): Optional via AtomX Cast
Picture and Picture (PAP)
Graphic overlays: Optional via AtomX Cast
Media pool storage
Input transitions: Optional via AtomX Cast
Input Resolution Processing
Input Image processing
Keyer

Supported media

Master Caddy I: Not compatible
Master Caddy II: For 2.5-inch hard drives in MasterCaddy II
Master Caddy III: For 2.5-inch hard drives in MasterCaddy III (needed for Atomos Connect)
SSDmini: Native size and fit
CFAST II: With supported cards via optional SSDmini CFAST II Adaptor
SD
USB
Network
File Naming: Unit Name – Scene/Shot/Take
File System: ExFAT

On-screen tools

MultiScope Analysis View
Waveform: Yes, 3 size / Position
Histogram
RGB parade: Yes, 3 size / Position
Vector scope: Yes, 2 size / Position
1 x Zoom: Yes. 1:1 Pixel mapping for 4k
2 x Zoom: Yes
4 x Zoom
Focus peaking: Colour selected / threshold setting/colour/Mono/edges only
Atomos False color: Yes, with Scale
ARRI False color: Yes
EL Zone: Yes
Zebra: Yes, Adjustable
Isolate color channel: Blue Only
Cine Frame Guides: 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides: 9:16, 1:1, 191:1, 4:5
Onion Skin: Yes
Safe areas: Action and Graphic
Grid markers: 9 grid
Anamorphic de-squeeze: 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
Display Flip: Vertical Only

Onboard Signal Processing

Pulldown removal: 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
4K UHD downscale for HD: Loop out – 4K UHD to FHD
DCI Crop: Loop out – 17:9 to 16:9 Crop

Remote control

HDMI: Auto HDMI Trigger, Supported Protocols – Canon, Sony,
Atomos Open Standard
SDI: SDI trigger camera selectable with Atomos Connect
Serial 2.5mm Jack: LANC control and calibration via optional USB to serial cable
AirGlu BT: Optional Via Atomos Connect module
AirGlu RF: Optional Via Atomos Connect module
USB
RJ45
RS422

External Device Control

Serial 2.5mm Jack: Camera control for supported cameras via Optional USB to Serial Cable
Bluetooth LE: Optional Via Atomos Connect module
Wireless RF: Optional Via Atomos Connect module
USB
RJ45

Supported Applications

XML: Cut tag EDL in FCPX XML
Apple ProRes Raw: Apple FCPX, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.
Video Codecs: All Applications with support for Apple ProRes and Avid DNx in. MOV wrapper

Software included
Optional extras: Accessory Kit 5-inch Vers II, Sunhood, DC to DTap, Power kit, HDMI cables, USB to serial cable,

Compatible with
List product

Warranty

Standard: 1 year. Extended to 2 years on product registration. Atomos Care360 available as a subscription

Target use / User

Mirrorless cameras: Y
Compact Cinema: Y
Cinema: Y
Director monitor: Y
Games Capture: Y
Streaming: Y
Mixer/switcher / ProAV: Y
Rack / OB
DIT / Video Village
Pro Video: Y
Gimbal / Crane: Y
Editor / Colourist
Hobbyist: Y
Wedding: Y

In The Box

Click to rate this post!

[Total: 7 Average: 5]

Ninja Ultra
1 x Battery Eliminator
1 x USB C PD to 2.1mm DC power lead
QuickStart Guide

Delivery Info

Click to rate this post!

[Total: 7 Average: 5]

How to shop TAX free in Singapore

9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme

All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.

Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.

Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.

Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.

Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.

If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)

Reviews (0)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Atomos Ninja Ultra 5-inch HDR Monitor Recorder for Mirrorless cameras
