Description

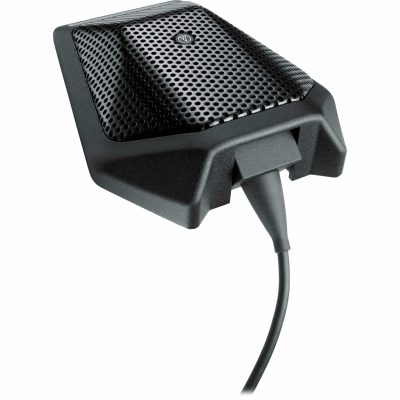

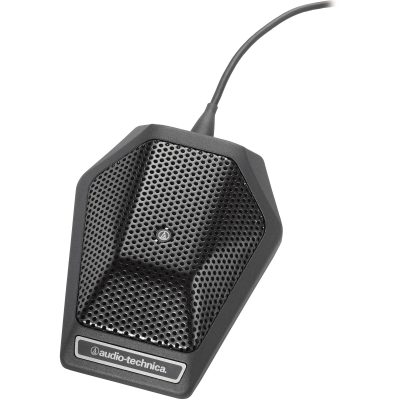

Audio-Technica U851A Cardioid Condenser Boundary Microphone

Offering outstanding Audio-Technica sound for surface-mount applications, the Audio-Technica U851A features a PivotPoint? rotating output connector, UniSteep? filter and UniGuard? RFI-shielding technology. This battery or phantom-powered condenser microphone accepts interchangeable condenser elements available for boundary microphones in cardioid, hypercardioid and omnidirectional polar patterns.

Its heavy die-cast case and silicon foam bottom pads minimize coupling of surface vibration to the microphone. With superior off-axis rejection and maximum gain-before-feedback, this professional microphone sets audio-quality standards in challenging acoustic environments.

Features

Ideal for sound reinforcement, professional recording and conferencing
PivotPoint? rotating output connector
Superior off-axis rejection for maximum gain before feedback
Outstanding rejection of radio frequency interference (RFI)
Small-diameter UniPoint capsule near boundary
Operates on battery or phantom power

Specifications

Element	Polarized condenser
Polar Pattern	Half-cardioid (cardioid in hemisphere above mounting surface)
Frequency Response	30 – 20,000 Hz
Open Circuit Sensitivity	Phantom: -40 dB (10.0 mV) re 1V at 1 Pa Battery: -41 dB (8.9 mV) re 1V at 1 Pa
Impedance	Phantom : 200 ohms – Battery : 270 ohms
Maximum Input Sound Level	Phantom: 133 dB, 1 kHz at 1% T.H.D. – Battery: 123 dB, 1 kHz at 1% T.H.D.
Switches	Off, on-flat, on-roll-off
Dynamic Range	Phantom: 111 dB, 1 kHz at Max SPL Battery: 101 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	72 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 2 mA typical
Battery type	1.5V AA/UM3
Battery Life	0.4 mA / 1200 hours typical (alkaline)
Weight	244 g
Dimensions	4.25″ (108.0 mm) long, 3.31″ (84.0 mm) maximum width, 0.91″ (23.0 mm) height
Output Connector	3-pin XLRM type
Cable	25.0' (7.6 m) long (permanently attached to microphone), 0.13″ (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
Accessories Included	AT8531 power module; battery; soft protective pouch
