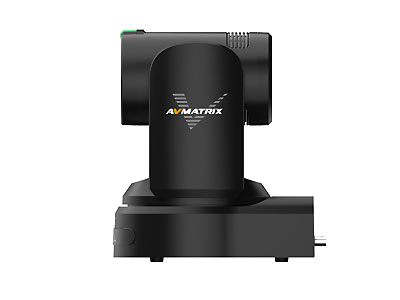

AVMatrix EAGLE P20-12G-NDI Broadcast PTZ Camera

Model: EAGLE P20-12G-NDI

• CMOS Sensor: 1/1.8” CMOS
• Zoom: 20X
• Effective Pixels: 8.3 Megapixels
• Video Format: 2160P60/59.94, 2160P50, 2160P30/29.97, 2160P/25; 1080P60/59.94, 1080P50,
  1080P30/29.97, 1080P25; 1080i60/59.94, 1080i50；720P60/ 59.94,720P50
• Optical Zoom: 20x Optical Zoom
  12X Digital Zoom
• Focus Length: f = 7.1~141.3 mm
• HFOV: 3.6° (T) ~ 59.2° (W)
• Iris: F1.61 ~ F5.19
• Min Illumination: 0.05 lux (F1.61)
• Digital Noise Reduction: 2D & 3D Noise Reduction
• White Balance: Manual/Auto/Indoor/Outdoor/One Push/3000K/4000K/5000K/6500K/ATW
• Focus mode: Manual/Auto/Z-Trigger
• Iris mode: Manual/Auto
• BLC: 1-8/Off
• Picture adjustment: Brightness, hue, saturation, contrast, sharpness

I/O Parameters:

• Video Output Interface: HDMI 2.0, 12G-SDI*2, RJ45, USB 3.0
• Video Compression Format: H.264, H.265, MJPEG
• Control interface: 1X RS232 IN, 1X RS232 OUT, 1X RS422 IN, 1X RS422 OUT, 1X RJ45
• Control Protocol: VISCA/PELCO-D/PELCO-P, VISCA OVER IP, ONVIF, UVC (ONLY FOR USB INTERFACE)
• Baud Rate: 2400/4800/9600/19200/38400 bps
• Audio Input: Dual-channel 3.5mm line input
• Audio Compression: ACC, G711A, G711U
• Network Interface: 1000M Internet Access (10/100BASE-TX)
• Network Protocol: RTSP, RTMP, ONVIF, SRT, GB28181, VPN

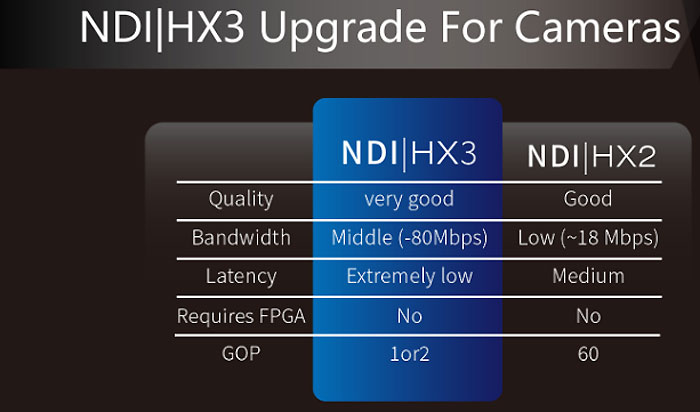

• NDI Protocol: NDI|HX3
• Power Interface: DC-038 Outlet (DC12V) ,

Pan/Tilt Mechanical Parameters:

• Pan Rotation Angle: -175°~ +175°
• Tilt Rotation Angle: -30°~ +90°
• Horizontal rotation speed range: 0.1~100°/s
• Vertical rotation speed range: 0.1~80°/s
• Presets: Max Support 255 Presets

General Parameters:

• Power Adapter: AC100V~AC240V Input, DC12V/2A Output
• Input Voltage: DV12V
• Power Consumption: 15W (Max)
• Storage Environment: -10°C ~ +60°C / 20% ~ 95%
• Working Environment: -10°C ~ +50°C / 20% ~ 80%
• Weight: Net Weight: 2970g, Gross Weight: 3901g (Without Bracket)

• AVMATRIX EAGLE P20-12G-NDI PTZ Camera
• 12V 2A Power Adapter
• USB 3.0 Type-C Cable
• IR Remote Control
• RS-232 Serial Cable
