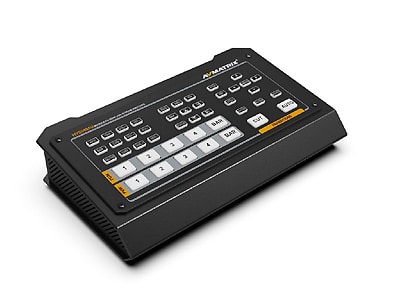

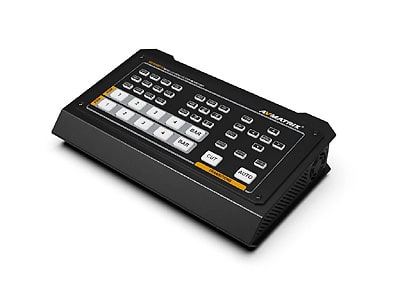

AVMATRIX HVS0401U Micro 4 Channel HDMI/ DP Video Switcher

SGD 546.63 excl. Tax

  • Inputs 1~3: HDMI, Input 4: HDMI/DP
  • Outputs: HDMI PGM×2, HDMI multiview×1, USB type-C×1, LAN×1
  • USB Type-C for video capturing (UVC)
  • PIP function, adjustable size and position
  • Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
  • AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • GPIO interface for live tally system
  • FTB for emergency situation
Weight 6 kg
SKU: HVS0401U Category:
Description
Click to rate this post!
[Total: 6 Average: 5]

AVMATRIX HVS0401U 4-Channel HDMI/DP Multi-Format Video Switcher

AVMATRIX HVS0401U is a 4-Channel HDMI/DP multi-format video switcher with a compact and robust metal housing design for video switching, audio mixing and different conversion effects. The input signal is automatically detected, the PGM output is scalable and compatible with a wide range of devices for convenience and flexibility, and the USB output can be connected directly to a PC for video capture. This cost-effective switcher will be the perfect choice for your live-streaming applications.

  • Inputs 1~3: HDMI; Input 4: HDMI/DP
  • Outputs: HDMI PGM 2, HDMI multiview 1, USB type-C 1, LAN 1
  • USB Type-C for video capturing (UVC)
  • PIP function, adjustable size, and position
  • Audio mixer: 3.5mm MIC/RCA/HDMI embedded audio
  • AUTO/CUT transitions and MIX/FADE/WIPE effects
  • GPIO interface for live tally system
  • FTB for emergency situation

Others AVMATRIX Family Product

Switcher and Multivewer

AVMATRIX PVS0403U Portable 10.1 inch 4-CH SDI & HDMI Video Switcher

AVMATRIX MMV1630 16 Channel 3G-SDI Multiviewer

AVMATRIX MSS0811 1RU 8?8 3G-SDI Matrix Switcher

AVMATRIX MSS1611-S 16?16 Seamless SDI Matrix Switcher

AVMATRIX MSS0811 1RU 8?8 3G-SDI Matrix Switcher

AVMATRIX VS0601U Mini 6-Channel Streaming Switcher

AVMATRIX VS0605U Mini 6-Channel Streaming Switcher

AVMATRIX HVS0401 Micro 4 Channel HDMI/ DP Video Switcher

AVMATRIX HVS0402U Micro 4-channel HDMI Live streaming Video Switcher

AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher

AVMATRIX VC42 4-Channel HDMI PCIE Capture Card

AVMATRIX VS0601U Mini 6-Channel Streaming Switcher

AVMATRIX PVS0613U Portable 6-Channel SDI/HDMI Multi-format Streaming Switcher

AVMATRIX PVS0615U 6-Channel Multi-Format Streaming Switcher

AVMATRIX HVS0401 4-channel HDMI/DP Multi-Format Video Switcher

AVMATRIX Shark H4 Micro 4-Channel HDMI Video Switcher

AVMATRIX SHARK H4 PLUS Portable 4-Channel HDMI Live Stream Video Switcher

AVMATRIX SHARK S4 PLUS 4-Channel SDI & HDMI Video Switcher

AVMATRIX SHARK S4 4-Channel SDI & HDMI Video Switcher

AVMatrix SHARK S6 6-Channel HDMI & SDI Multi-Format Video Switcher

Converter

AVMATRIX FE1121 3G-SDI Fiber Optic Extender Set

AVMATRIX FE1121-12G SDI Fiber Optic Extender Set

AVMATRIX Mini SC1112 3G-SDI to HDMI Mini Conveter

AVMATRIX Mini SC1221 HDMI to 3G-SDI Mini Converter

AVMATRIX MV0430 3G-SDI Quad Split Multiviewer

AVMATRIX PG4K 12G-SDI & 4K HDMI2.0 Pattern Generator

AVMATRIX SC1120 3G-SDI to HDMI Scaling Converter

AVMATRIX SC2030 HDMI/SDI Scaling Cross Converter

AVMATRIX SD2080 2?8 SDI/HDMI Splitter & Converter



Streaming Encoder and Video Capture Card

AVMATRIX SE1117 SDI Streaming Encoder

AVMATRIX SE1217 HDMI Streaming Encoder

AVMATRIX UC1118 SDI to USB3.1 Gen 1 Video Capture

AVMATRIX UC1218 HDMI to USB 3.0 Video Capture

AVMATRIX UC1218-4K HDMI to USB-C 3.1 Video Capture Device

AVMATRIX UC2018 HDMI/SDI to USB3.1 TYPE-C Uncompressed Video Capture

AVMATRIX UC2218-4K HDMI to USB-C 3.1 Video Capture Device

AVMATRIX VC12-4K HDMI PCIE Capture Card

AVMATRIX VC41 4-Channel 3G-SDI PCIE Capture Card

AVMATRIX VC42 4-Channel HDMI PCIE Capture Card

PTZ and Controller



AVMATRIX PTZ1271 Full HD PTZ Camera

AVMATRIX PKC3000 PTZ Camera Joystick Controller

Tally

AVMATRIX TS3019 Wireless Multi-Camera Tally System



Specifications
Click to rate this post!
[Total: 6 Average: 5]

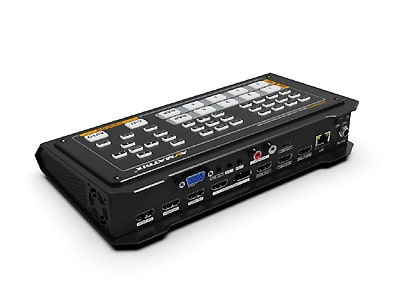

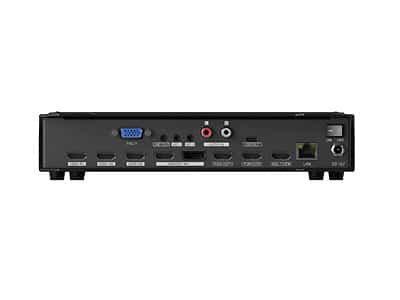

CONNECTION

  • Video In: IN1~IN3: HDMI type-A ×3; IN4: HDMI type-A/ Display Port ×1
  • Video Out
    PGM: HDMI type-A×2
    Multiview: HDMI type-A×1
    USB Capture: USB type-C ×1
  • Audio In
    MIC/ Line ×2 (3.5mm audio)
    RCA(L/R) ×1 (stereo audio)
  • Tally Port: DB-15 ×1
  • Power In: DC 12V IN ×1

FUNCTIONS

  • Functions: Image Still/ Transition Speed/ MUTE/ Audio follows Video/ Audio Mixer
  • Transitions: AUTO/ CUT
  • Effects: WIPE/ MIX/ FADE/ FTB
  • Layouts: PIP, Multiview

STANDARDS

  • HDMI In Format Support
    1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98/23.976
    1080i 50/ 59.94/ 60
    720p 60/ 59.94 /50/ 30/ 25/ 24
    576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
  • PC HDMI/DP Input Format Support: 2560×1600, 2048×1152, 1920×1080,1680×1050, 1600×1200, 1600×900, 1400×1050, 1440×900, 1366×768, 1360×768, 1280×1024, 1280×960, 1280×800, 1280×768, 1280×720, 1280×600, 1152×864, 1024×768, 800×600, 640×480
  • HDMI PGM Out
    1080p 60/ 50/ 30/ 25/ 24
    1080i 60/ 50
  • HDMI Multiview Out: 1080p60
  • HDMI Color Space: RGB/ YCbCr
  • USB Capture Out: MJPG , Up to 1080p60

OTHERS

  • Power: 12V, 1.5A, 18W
  • Dimension (LWD): 238.5×140.4×43.5mm
  • Weight: Net: 785g; Gross: 1500g
  • Temperature: Working: -10℃~60℃, Storage: -30℃~70℃
  • Standard Accessories: Power supply(12V 2A ) ×1, USB cable(type A-C) ×1, Tally connector(DB-15) ×1
  • Optional Accessories: Handbag ×1, Tally cable ×1
