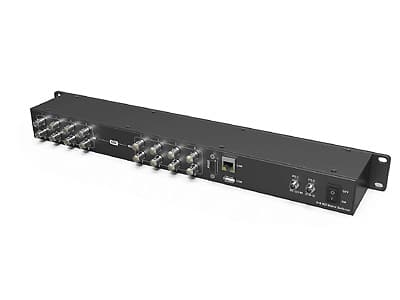

AVMATRIX MSS0811 1RU 8×8 3G-SDI Matrix Switcher

SGD 1,094.63 excl. Tax

  • 8 x 3G-SDI Inputs, 8 x 3G-SDI Outputs
  • SDI Input Auto Detection & Equalization
  • Level A and Level B Signals Supported
  • Pass all ancillary data and embedded audio
  • DVB-ASI Interface Compatible
  • Free PC Software Control: LAN, RS-232
  • Front Panel Button Controls & USB Keyboard
  • Redundant Power Design
Weight 7 kg
SKU: MSS0811 Category:
Description
Click to rate this post!
[Total: 5 Average: 5]

AVMATRIX MSS0811 3G-SDI Matrix Switcher

The compact SDI routing switcher AVMATRIX MSS0811 has 8 inputs and 8 outputs, supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. It’s conveniently control by front panel button, keyboard via USB and PC software via LAN/RS-232.

  • 8 x 3G-SDI Inputs, 8 x 3G-SDI Outputs
  • SDI Input Auto Detection & Equalization
  • Level A and Level B Signals Supported
  • Pass all ancillary data and embedded audio
  • DVB-ASI Interface Compatible
  • Free PC Software Control: LAN, RS-232
  • Front Panel Button Controls & USB Keyboard
  • Redundant Power Design

Applications of MSS0811:

  1. Live Events and Broadcasts: The MSS0811 is an excellent tool for managing video signals in live events and broadcasts. With its ability to switch between eight 3G-SDI inputs and outputs, it can seamlessly route video signals to various displays and recording devices, ensuring a smooth and uninterrupted viewing experience for the audience.
  2. Studio Productions: In studio productions, the MSS0811 can be used to manage multiple camera feeds and switch between them in real time. This is particularly useful in talk shows, news broadcasts, and other studio-based productions where multiple camera angles are required.
  3. Video Conferencing: The MSS0811 can also be used in video conferencing setups to manage multiple video feeds from different participants. This allows for a more dynamic and engaging video conferencing experience, with the ability to switch between different participants’ video feeds as needed.
  4. Digital Signage: For digital signage applications, the MSS0811 can be used to manage multiple video feeds from different sources, such as media players, PCs, and cameras. This allows for a more dynamic and engaging digital signage experience, with the ability to switch between different content sources as needed.

Advantages:

  1. High-Quality Video: The MSS0811 supports 1080p resolution, ensuring high-quality video output. This is essential for professional video production, where image quality is of utmost importance.
  2. Low Latency: The MSS0811 offers low latency, ensuring that there is minimal delay between the input and output signals. This is crucial for live events and broadcasts, where real-time video switching is required.
  3. Remote Control Capabilities: The MSS0811 can be controlled remotely via RS-232, RS-485, or Ethernet, allowing for easy integration into existing control systems. This is particularly useful in studio productions, where the switcher can be controlled from a central location.
  4. Versatility: The MSS0811 supports a wide range of video formats, including 3G-SDI, HD-SDI, and SD-SDI, making it compatible with a variety of video sources. This makes it a versatile solution for managing multiple video signals in different applications.

Related Products:

MSS1611-S 16×16 Seamless SDI Matrix Switcher
MMV1630 16 Channel 3G-SDI Multiviewer

Specifications
Click to rate this post!
[Total: 5 Average: 5]

Connections

  • SDI Video Input: 8×SD/HD/3G-SDI(75Ω BNC)
  • SDI Video Output: 8×SD/HD/3G-SDI(75Ω BNC)
  • Updates and Configuration: LAN(RJ45)
  • Control: Front panel button, USB keyboard, PC software via LAN/RS-2

Standards

  • SDI Format Support
    (2K) 2048×1080p 30/29.97/25/24/23.98
    (2K) 2048×1080PsF 30/29.97/25/24/23.98
    (HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98
    (HD) 1920×1080PsF 30/29.97/25/24/23.98
    (HD) 1920×1080i 60/59.94/50
    (HD) 1280×720p 60/59.94/50
    (HD) 1280×720p 30/29.97/25/24/23.98
    (SD) 625i 50
    (SD) 525i 59.94
  • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
  • SDI Compliance: SMPTE 372M, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, DVB-ASI
  • SDI Color Space and Precision
    RGB 4:4:4 10bit/12bit
    YUV 4:2:2 10bit/12bit
    YUV 4:4:4 10bit/12bit
    XYZ 4:4:4 12b

Power

  • Power Supply: PS-1, PS-2, power redundancy
  • Voltage Range: DC 6-24V
  • Power Consumption: 7W

Physical Specifications

  • Dimension: Standard 19” 1 rack unit
  • Net Weight: 1.1kg
  • Gross Weight: 1.7kg

Environmental Specifications

  • Operating Temperature: -20℃~60℃
  • Storage Temperature: -30℃~70℃
  • Relative Humidity: 0%~90% non-condensing
  • Warranty: 3 Year Limited Manufacturer’s Warranty
In The Box
Click to rate this post!
[Total: 5 Average: 5]
  • Compact 1RU 16×16 3G-SDI Seamless Matrix Switcher
  • DC 12V 5A Power Adapter × 2
