AVMATRIX PKC3000 PTZ Camera Joystick Controller
SGD 615.13 excl. Tax
- Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D
- Control up to total of 255 IP cameras on a single network
- 6 camera quick call up keys, and 6 user-assignable keys to quickly invoke shortcut functions
- Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
- Tactile feel with professional rocker/seesaw switch for zoom control
- Automatically search available IP cameras in a network and assign IP addresses easily
- Multi-color key illumination indicator directs operation to specific functions
- Tally GPIO output for indicating the camera be currently controlled
- Metal housing with 2.2 inch LCD display, 4D joystick, 5 rotation button
- Supports both POE and 12V DC power supplies
| Weight | 4 kg |
|---|
Description
Click to rate this post!
[Total: 7 Average: 4.6]

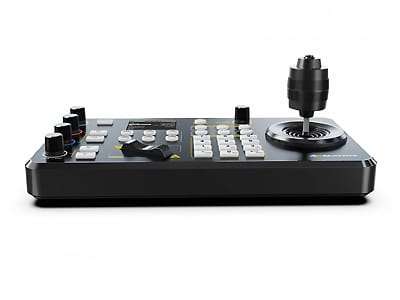

AVMATRIX PKC3000 Professional IP & Serial PTZ Camera Joystick Controller
AVMATRIX PKC3000 is a professional PTZ camera controller that supports RS-422 / RS-485 / RS-232 / IP control, connects up to 255 cameras, provides the ability to control aperture, focus, white balance, exposure, and real-time speed control, and provides more refined camera settings in controlling PTZ cameras, widely used in education, conference, remote medical services, interviews, concert, churches and other live broadcast activities.
- Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D
- Control up to total of 255 IP cameras on a single network
- 6 camera quick call up keys, and 6 user-assignable keys to quickly invoke shortcut functions
- Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
- Tactile feel with professional rocker/seesaw switch for zoom control
- Automatically search available IP cameras in a network and assign IP addresses easily
- Multi-color key illumination indicator directs operation to specific functions
- Tally GPIO output for indicating the camera be currently controlled
- Metal housing with 2.2 inch LCD display, 4D joystick, 5 rotation button
- Supports both POE and 12V DC power supplies
Camera Control Protocol
The PKC3000 has a variety of control interfaces including IP, RS-422/RS-485/RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross protocol mix-control on one controller operating protocol by VISCA, VISCA Over IP, and Pelco P&D, as well as ONVIF. Control multiple different PTZ camera brands simultaneously, including AVMATRIX, HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek.
AVMATRIX PTZ
Specifications
Click to rate this post!
[Total: 7 Average: 4.6]
CONNECTIONS
- Interfaces: IP(RJ45), RS-232, RS-485/RS-422
- Control Protocol: IP Protocol: ONVIF, VISCA Over IP
- Serial Protocol: PELCO-D, PELCO-P, VISCA
- Serial Baud Rate: 2400, 4800, 9600, 19200, 38400 bps
USER INTERFACES
- Display: 2.2 inch LCD
- Joystick: 4D joystick (Pan/Tilt/Zoom/Lock)
- Camera shortcut: 6 channel
- Keyboard: User-assignable keysx6, Rotation buttonx5, Rockerx1,Seesawx1
- Camera Address: Up to 255
- Preset: Up to 255
POWER
- Power: PoE/ DC 12V
- Power Consumption: PoE: 5W, DC: 5W
ENVIRONMENT
- Working Temperature: -20°C~60°C
- Storage Temperature: –40°C-80°C
DIMENSION
- Dimension(LWD): 270mmx145mmx29.5mm/ 270mmx145mmx106.6mm(With joystick)
- Weight: 1181g
