AVMATRIX PKC4000 IP & SERIAL PTZ Camera Controller
Product Highlights:
- 5″ Touch Screen Monitoring Camera in Real Time
- Control Protocol by NDI, VISCA, VISCA-IP Onvif and Pelco P&D
- Track Recording and Playback
- IP/RS-422/RS-485/RS-232 Control
- POE Power Supply
- Quickly Control Camera
- Control Up to 100 IP Cameras and 255 Presets
- Tally GPIO, Switch and Indicate The Camera
Weight | 4 kg |
---|

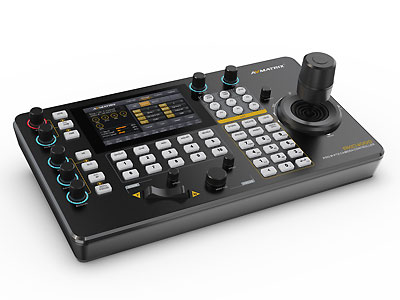

AVMATRIX PKC4000 Touch Screen PTZ Camera Controller
The AVMATRIX PKC4000 professional PTZ camera controller supports RS-422/RS-485/RS-232/IP control, connects up to 100 cameras, provides the ability to control camera pan/tilt/zoom and focus, white balance, exposure, and provides more sophisticated camera settings in controlling PTZ cameras. It is widely used in education, conferences, telemedicine, medical services, and other industries.
PKC4000 Provides 5 Inch Touch Screen Camera Menu Control
The AVMATRIX PKC4000 PTZ camera keyboard controller features a 5-inch touchscreen that enables direct on-screen configuration of common camera menu parameters and monitoring of camera status in real-time.
PKC4000 Controller Supports Real-time Preview of Your Camera
The controller supports decoding under the NDI, RTSP, and ONVIF protocols, which allow simultaneous real-time previews of the camera video streams on the 5-inch screen, and you can adjust your control accordingly.
*NDI Version For Optional
Camera Control Protocol
The controller has a variety of control interfaces, including IP, RS-422/RS-485/RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross-protocol mix-control on one controller operating protocol by ONVIF, VISCA, VISCA-IP, and Pelco P&D, as well as NDI (“NDI For Optional).
PKC4000 Controller Supports Track Recording and Playback
The PTZ camera controller supports a track loop function, which allows you to record the camera path (pan, tilt, zoom) and replay it whenever required without having to control the camera manually.
Sync Controller with Switcher Via GPIO
Equipped with GPIO, the controller can seamlessly integrate with switchers and tally systems, enabling synchronized camera and video selection and simplifying your operations.
- 5″ Touch Screen: Touch to adjust the menu, and support monitoring the camera in real-time
- Camera Setting: Quickly search, add, and call up to 100 cameras divided into 10 camera groups.
- Camera Quick Access Control: Quickly control the camera’s iris, shutter speed, gain, auto exposure, white balance, and black balance for optimal PTZ camera performance.
- Focus and Zoom Adjust: Supports camera autofocus and manual focus, and can also adjust camera zoom and focus speed.
- Menu Knob: Adjust the menu of the controller itself, and can also control the camera menu.
- Assignable Functions & CAM PWR, OSD, PVW: It can store up to 6 user-assignable keys. The other 3 shortcut keys are used to control camera power, open the camera menu, and preview the camera screen.
- 4D Joystick: Use for pan/tilt speed, zoom speed control, and controller’s menu settings.
- Position Setting: Quickly set and wake up to 255 camera positions.
- Multi-function Digital Panel: Used to assist input numbers, letters, etc.
Power-over-Ethernet (PoE)
Control up to a total of 100 IP cameras on a single network with PoE support. You can use not only traditional DC power supply but also POE power supply to set up in various locations.
1x RS-232 & 4x RS-485/422 Control Interfaces
RS-232, RS-422, and RS-485 communication support protocols such as PELCO-D, PELCO-P, and VISCA,. Each serial port can connect up to 7 cameras under the Visca protocol.
IP Control Interface
IP control is a very intelligent and convenient control mode. With IP control, automatically search available IP cameras in the network and assign IP addresses easily. IP control supports NDI, ONVIF, and Visca-IP. PKC4000 enables users to easily control up to 100 IP cameras (10 groups, 10 cameras/group).
Ergonomic Bracket for Optimal Control
The controller is equipped with an ergonomically designed bracket that enhances your control experience and viewing angle of the screen.
Connection Diagram
Adopt RS-232, RS-422, RS-485, and IP (RJ45) multiple interface control signals, up to 100 cameras can be connected. The following application workflow shows how to control multiple cameras through the IP Interface through the PTZ controller
Application Fields
The controller can be widely used in various field events, such as church, concerts, education, interviews, sports live, and other live broadcast activities.
To view more AVMATRIX Products
Related Product:
AVMATRIX PKC3000 PTZ Camera Joystick Controller
Model No.: PKC4000
Connections:
- Interfaces: IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade)
- IP Protocol: ONVIF, VISCA-IP
- Serial Protocol PELCO-D, PELCO-P, VISCA
- Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200bps
- LAN Port: 100M×1 (PoE/PoE+: IEEE802.3 af/at)
User Interfaces:
- Display: 5 Inch Touch Screen
- Joystick: Pan/Tilt/Zoom
- Knob: Quickly control iris, shutter speed, gain, autoexposure, white balance, etc
- Camera Group: 10 (Each group connects up to 10 cameras)
- Camera Address: Up to 100
- Camera Preset: Up to 255
Power:
- Power: PoE+ / DC 7~24V
- Power Consumption: PoE+: < 8W, DC: < 8W
Environment:
- Working Temperature: -20°C~60°C
- Storage Temperature: -20°C~70°C
Dimension:
- Dimension(LWD): 340mm×195mm×49.5mm
340mm×195mm×110.2mm(With joystick) - Weight: 1730g
