Description

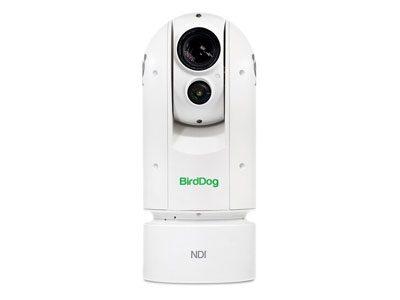

BirdDog Eyes A300 Gen 2 PTZ Camera IP67 (White)

Weatherproof Full NDI PTZ

Designed for fixed outdoor installations such as sports, the IP67 rating and the Wind Load Durability rating equal to that of a category 4 Hurricane, which means A300 can withstand pretty much any weather conditions. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module BirdDog A300 has lightning auto focus, incredibly sharp images, and insanely fast zoom. BirdDog A300 Gen2 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI simultaneously.

NDI & SDI – With NDI and SDI simultaneous outputs BirdDog A300 Gen2 is ready to go live with full NDI today or can be use as a traditional SDI camera.

Sony Sensor – The best pictures come from the best silicon. A300 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI chip to form a match made in silicon heaven. Your productions deserve the best.

Sony Image Module – Lightning auto focus. Insanely fast zoom.Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. A300 uses a true Sony image module to give unparalleled performance, picture quality,and responsiveness.

All weather – With an IP67 rating, external housing corrosion resistance treatment against salt spray,and an -40°C to +60°C operating temperature rating, A200 has been designed to withstand the most extreme elements on earth. It even has a rain wiper to keep water off the lens.

30x Optical zoom – 30x optical zoom makes A300 perfect for outdoor and indoor fixed installations for sports such as football, baseball, hockey, skifields, basketball, soccer, and more.

Nitrogen Filled Housing – Nitrogen filled housing eliminates fog.

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Camera Specifications
IMAGE SENSOR	1 / 2.8 inch CMOS 2.13MP
LENS	4.3-129mm
OPTICAL ZOOM	30x
DIGITAL ZOOM	12x
HORIZONTAL ANGLE OF VIEW	63.7° (W) – 2.3° (T)
APERTURE	F1.6 (W) – F4.7 (T)
MIN. ILLUMINATION	Color: 0.01 lux (F1.6, AGC on ,1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)
SHUTTER SPEED	1/1 – 1/10000s
FOCUS	Auto, Push, Manual
WHITE BALANCE	Auto, Indoor, Outdoor, Manual, OPW, ATW
EXPOSURE	Auto, Manual, Shutter/Iris Priority
BACKLIGHT COMPENSATION	YES
MECHANICAL
Pan Movement	Horizontal: 360° continuous pan (Zoom Adaptive Speed Range: 0.01°〜80°/s)
TILT MOVEMENT	Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.1°〜90°/s)
PRESET POSITIONS	255 (Speed adjustable: Up to 150°/s)
ENVIRONMENTAL	Outdoor/Indoor, IP67, corrosion resistant treated housing, Wind load durability 60m/s, Nitrogen filled housing
Operating Temperature	-40 – +60 (°C)
Operating Humidity	≤80%
ILLUMINATION	IR Laser, illumination up to 500m
VIDEO INTERFACE
VIDEO OUTPUT	NDI/SDI
VIDEO FORMATS	1080p 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50 720p 60, 59.94, 50, 29.97, 25
Audio I/O	3.5mm Audio In (Stereo) 3.5mm Audio Out (Stereo)
CONTROL INTERFACE
IP PTZ CONTROL	NDI Control (auto configuring), VISCA IP
SERIAL PTZ CONTROL	RS422/RS485 Connector
SERIAL CONTROL PROTOCOL	VISCA / PELCO D
POWER & DIMENSIONS
POWER INPUT	AC 24V, PoE 97W (BirdDog PoE 97W Injector, optional)
POWER CONSUMPTION	Min: 36W; Max: 76.68W（Fully loaded operation with heater and IR Laser on）
DIMENSIONS	180x180x423mm
WEIGHT	10.2Kg
NETWORK
VIDEO COMPRESSION	Full NDI – i-frame high quality low latency NDI for production
NETWORK PROTOCOL	NDI – Discovery, configuration and control
WEB CONTROL INTERFACE	Full control via Web/Mobile UI including Scene presets
