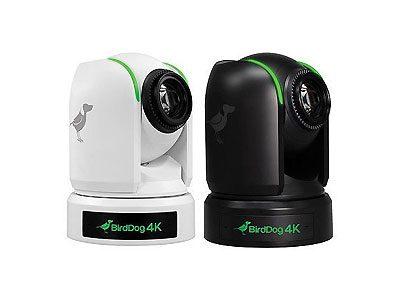

BirdDog P4K Full NDI PTZ Camera with 1″ Sony Sensor
SGD 11,270.99 – SGD 11,501.15 excl. Tax excl. Tax
Product Highlights:
- Full NDI 6G SDI and HDMI 2.0.
- Support both NDI and NDI|HX
- New Codec Engine
- Built with Sony 1” Sensor
- Integrated with Carl Zeiss Vario-Sonnar T lens
- Advanced Colour Controls
Weight | N/A |
---|---|
Choose from Variants |
BDP4KBLACK ,BDPP4KWHITE |
BirdDog P4K 10-Bit Full NDI PTZ with 1″ Sony Sensor
Hello Sony 1” Sensor. Meet NDI
P4K is the real deal. A huge 1” Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes BirdDog P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.
New Codec Engine
A totally rebuilt codec engine brings even lower latency to the P400 and P4K and computationally higher picture quality. Better pictures, less bandwidth, faster.
Tighter Cam Control Integration.
Cam Control 2.0 has been updated to include all the features found in the OSD of P400 and P4K so you can now remotely shade the cameras from the beautiful Cam Control interface.
NDI
In the world of NDI there are two flavours, NDI and NDI|HX. NDI is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. BirdDog P4K is a Full NDI camera.
Sony 1” Sensor. Size does matter.
The best images come from the best sensors and the P4K is built exclusively around the best sensor in its category. The massive 1” Sony Exmor R CMOS backlit sensor delivers truly stunning pictures in all shoot modes and frame rates whether in HD or 4K.
Carl Zeiss Vario-Sonnar T lens. Glass matters.
The glass you use is super important in creating stunning pictures and P4K uses only the best. With precision optics and a T coating lens that reduces Ghost and Flare caused by reflections on the surface of the lens.
More than just a production PTZ.
Shoot true cinematic styles.
P4K is a PTZ designed for the most demanding live production shoots and supports all the traditional frame rates you would expect including 29.97 but now you can use your PTZ as a camera for TVC’s, drama, and shoot 24p for that wonderful cinematic look.
Advanced Colour Controls.
With user selectable gamma settings and black gamma adjustment, fine tuning your shot has never been more flexible in a PTZ. Sony’s legendary sensor technology sets the tone for your next quality production.
FREE Cam Control. Colour match in seconds.
The Cam Control app is the easiest and most user-friendly way to dial in BirdDog cameras. Simply load on a Windows 10 machine on the same network as your BirdDog cameras and access all functions of the camera through a beautiful interface. Quickly dial in the look you like and copy settings across multiple cameras in seconds. And it’s 100% FREE with all BirdDog PTZ cameras.
Superfine Robotics.
P4K’s robotics are super precise and super sensitive. Wind down the panning and tilting speeds to create super professional shots that are dramatic, or crank up the speeds for high action sports to allow you to follow the movements.
Full NDI. 6G SDI. HDMI 2.0.
Full NDI. Two independent 6G SDI outputs and one HDMI 2.0 output, all live all the time to create amazingly flexible workflows.
Genlock
With Genlock you can now synchronise multiple cameras using the Genlock input. Now all your cameras can be hitting your NDI enabled vision mixer at the same time and lets you eliminate the need to add frame buffers.
PTZ Keyboard
Combine P400 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P400 over NDIor by RS422 / RS232 when using in SDI mode.
Read Our Blog:
Demystifying NDI: A Comprehensive Exploration
SS-R-24Nov23
Camera Specifications | |
Image Sensor | 1.0-type back-illuminated Exmor R CMOS sensor |
Number of effective pixels: | 14.2 Megapixels |
Picture elements | 3840 x 2160, 8.29 Megapixels |
Lens | Optical, 12X |
Digital Zoom | Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD |
Horizontal Angle of View Focal Length | 64.6 ̊ (Wide) – 6.1 ̊ (Tele), f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele) |
Min. object distance | 80mm (Wide), 1000mm (Tele) |
APERTURE | F2.8 Constant (W)~(T), 16 Steps |
MIN. ILLUMINATION | 0.5 lx (1/30 sec, 50%, High Sensitivity mode On) 2.0 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On) 0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off) |
SHUTTER SPEED | 1/10000s to 1/8 (59.94/29.97) |
FOCUS | Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit |
WHITE BALANCE | AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto) |
EXPOSURE | Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE |
Features | High Sensitivity, Defog mode, Backlight Compensation, HLC, E-FLIP, Mirror, Flicker Control, Day/Night, Defog |
WDR | YES(130dB) |
ND Filter | YES |
Image Stabilizer | YES |
Color Gain | Yes (15 step) |
Color Hue | Yes (15 step) |
Gamma | Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern |
Gamma Level | Yes (15 step) |
Black Level | Yes (97 step) |
Flicker Cancel | Yes |
Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps), 2D/3D |
S/N Ratio | ≥50db |
MECHANICAL | |
Body Color | Black, White |
Pan Movement | Horizontal: ±175º (Zoom Adaptive Speed Range: 0.05°~100°/s) |
TILT MOVEMENT | Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°~50°/s) |
PRESET POSITIONS | 0~5 Level Adjustable |
PRESET SPEED | 0~5 Level Adjustable |
Preset Memory | YES, ( Picture Profile Preset-Preset Memory for image parameters) |
Quietness | 45db |
Home Position: | Supported |
ENVIRONMENTAL | Indoor |
VIDEO INTERFACE | |
VIDEO OUTPUT | NDI/HDMI/6G-SDI |
4K VIDEO FORMATS | 4Kp 29.97, 25, 24, 23.98, 23.97 |
HD VIDEO FORMATS | 1080p 60, 59.94, 50, 29.97, 25, 24, 23.97 • 1080i 60, 59.94, 50 • 720p 60, 59.94, 50 |
INTERFACE | |
4K Video Output | Main 4K HDMI Type-A (x1) 6G-SDI (x2) or Dual Link 3G-SDI(2SI only) x2 |
HD Video Output | Main HD HDMI Type-A (x1) 3G-SDI x2 |
HDMI Color Space | YCbCr, 4:2:2 RGB, 4:4:4 |
NDI Video Encode | Full bandwidth NDI |
NDI Version | NDI v4.0 (Firmware upgradeable) |
IP Video Stream | UP to 4K/30 and 1080p60 |
Camera Control Interface | RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control |
Control Protocol | NDI, VISCA, VISCA IP |
LAN | RJ45X1(1GbE), NDI/IP video streaming, System upgrade, PoE+ (IEEE802.3at) |
Analogue Audio I/O | 3.5mm audio jack IN (mono) – 3.5mm audio jack OUT (mono) |
Audio Output | Embedded with main HDMI, 24bit Embedded with SDI, 24bit Embedded with NDI |
Tally Light | Front and Back |
ENVIRONMENTAL | |
Mount | Ceiling mount, Wall mount, Tripod |
Operating Temperature | -10 to +40 (°C), 32 to 104 (°F) |
Operating Humidity | ≤80% Suitable for Use |
POWER INPUT | 12V DC, PoE+ (IEEE 802.3at) |
POWER CONSUMPTION | Min: 20W; Max: 25W (PTZ move simultaneously) |
DIMENSIONS | 165x196x247mm |
WEIGHT | 3.4kg |
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
1 review for BirdDog P4K Full NDI PTZ Camera with 1″ Sony Sensor
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Stephen Sun –
BirdDog P4K 10-Bit Full NDI PTZ Camera: Where Precision Meets Innovation
The BirdDog P4K redefines excellence with a massive 1″ Sony Exmor R CMOS backlit Sensor, boasting 14.4 million effective pixels and delivering breathtaking 4K resolution with Full Bandwidth NDI support. Its exceptional light sensitivity makes it an ideal choice for broadcast applications, sports, remote studios, newsrooms, houses of worship, and any setting demanding top-tier quality.
Key Features:
New Codec Engine: A rebuilt codec engine enhances the P4K’s capabilities, reducing latency, elevating computational picture quality, and optimizing bandwidth for superior performance.
Tighter Cam Control Integration: Cam Control 2.0’s upgraded features, mirroring the OSD settings of the P400 and P4K, enable remote shading and control, enhancing user accessibility.
Sony 1″ Sensor: The P4K’s standout imaging prowess owes itself to the superior 1″ Sony Exmor R CMOS backlit sensor, delivering stunning visuals in all shooting modes and frame rates, be it HD or 4K.
Carl Zeiss Vario-Sonnar T Lens: Premium precision optics and T coating lens minimize reflections, ensuring exceptional image quality by reducing Ghost and Flare.
Cinematic Capabilities: Beyond live production, the P4K supports traditional frame rates and cinematic 24p, transforming PTZ shooting into a tool for cinematic-style shoots, TVCs, and dramas.
Advanced Color Controls: User-selectable gamma settings and black gamma adjustment afford unparalleled flexibility in fine-tuning shots, leveraging Sony’s renowned sensor technology.
FREE Cam Control: The Cam Control app offers a user-friendly interface to fine-tune camera settings, allowing quick color matching across multiple cameras, absolutely free with all BirdDog PTZ cameras.
Superfine Robotics: The P4K’s precise and sensitive robotics offer customizable panning and tilting speeds, catering to diverse shooting styles, from dramatic, slow movements to high-action sports tracking.
Flexible Outputs: Full NDI support, dual 6G SDI outputs, and an HDMI 2.0 output provide comprehensive live output options for highly adaptable workflows.
Genlock & PTZ Keyboard: Genlock support allows synchronization across multiple cameras, while the PTZ Keyboard provides comprehensive remote control for up to 255 PTZ cameras, scaling effortlessly for complex installations.
User Experience:
Users praise the BirdDog P4K for its unparalleled imaging quality, versatility in shooting styles, and the seamless integration of advanced color control through the Cam Control app, ensuring swift adjustments and uniformity across multiple cameras.
Conclusion:
The BirdDog P4K 10-Bit Full NDI PTZ Camera stands as a pinnacle of precision and innovation. With its state-of-the-art sensor, comprehensive color control, cinematic capabilities, and adaptable output options, it’s a game-changer for professionals seeking top-notch quality in diverse production environments.
