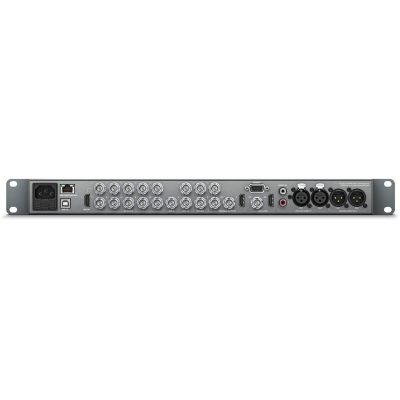

Connections:
|
|
Total Video Input
|
10
|
|
Total Video Output
|
8
|
|
SDI Video Input
|
10 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
|
|
HDMI Video Input
|
1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
|
|
Analog Audio Output
|
2 x XLR
|
|
SDI Audio Output
|
2 Ch embedded into SDI output.
|
|
Audio Input
|
2 x XLR. 2 x RCA.
|
|
Sync Input
|
Tri-Sync or Blackburst
|
|
Internal Frame Synchronizers
|
10. All inputs.
|
|
SDI Program Output
|
2 x 10-bit SD/HD/Ultra HD 4K switchable.
|
|
HDMI Program Output
|
1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
|
|
Down Converted SDI Program Output
|
1 x 10-bit HD (Ultra HD 4K to HD)
|
|
SDI Preview Output
|
1 x 10-bit SD/HD/Ultra HD 4K switchable.
|
|
SDI Aux. Output
|
3 x 10-bit SD/HD/Ultra HD 4K switchable.
|
|
Quantity of Multi Views
|
2
|
|
Outputs per Multi View
|
1 x SDI and 1 x HDMI
|
|
Control Panel Connection
|
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
|
|
Tally Output
|
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
|
|
Computer Interface
|
1 x USB 2.0 port.
|
|
Standards:
|
|
SD Format Support
|
625/25 PAL 4:3 and 16:9, 525/29.97 NTSC 4:3 and 16:9
|
|
HD Format Support
|
720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080i50, 1080p50, 1080i59.94, 1080p59.94.
|
|
Ultra HD 4K
|
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97.
|
|
Control Panel Included
|
ATEM Software Control Panel included free for Mac OS X 10.7.2 or 10.8 Mountain Lion and Windows 7 64-bit or Windows 8 32-bit or 64-bit.
|
|
Color space Conversion
|
Hardware based real time.
|
|
Processing Delay
|
< 2 Lines.
|
|
SDI Compliance
|
SMPTE 259M, 292M.
|
|
Video Sampling
|
4:2:2
|
|
Color Precision
|
10-bit
|
|
Software Updates
|
Using USB 2.0 connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
|
|
Audio Mixer
|
12 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
Analog outputs may be used for separate monitoring.
|
|
Color Space
|
REC 601, REC 709, REC 2020
|
|
HDMI Input Resolutions for
Computers
|
720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz.
|
|
Configuration
|
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.rdware based real time.
|
|
4K to HD Down Conversion
|
Yes, program x 1
|
|
Product Specifics
|
|
Total Number of Layers
|
8
|
|
Upstream Keyers
|
4
|
|
Downstream Keyers
|
2
|
|
Linear/Luma Keyers
|
7
|
|
Chroma Keyers
|
4
|
|
Pattern Generators
|
7
|
|
Color Generators
|
2
|
|
Transition Keyer (Stinger/DVE)
|
1 and 1
|
|
DVE with 3D Borders & Drop Shadow
|
1
|
|
Control Panel Compatibility
|
ATEM 1 M/E Broadcast Panel preferred. Compatible with ATEM 2 M/E Broadcast Panel. Includes ATEM Software Control Panel.
|
|
Display
|
|
Interface
|
Minimum monitor resolution of 1366 x 768
|
|

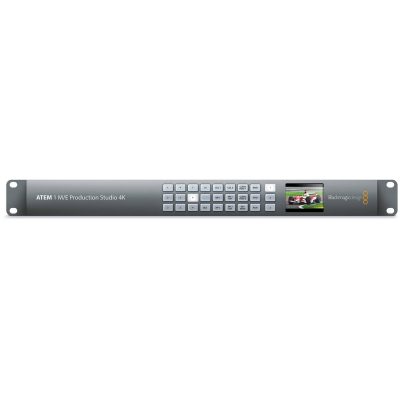

Front panel
|
Built in LCD monitor for video and 27 LED buttons for Aux switching.
|
|
Media Player
|
|
Media Players
|
2
|
|
Channels
|
Fill and key for each Media Player.
|
|
Media Pool Still Image Capacity
|
32 with fill and key.
|
|
Media Pool Clip Capacity
|
2 with fill and key.
|
|
Maximum Clip Length in Ultra HD 4K
|
180 frames
|
|
Maximum Clip Length in 1080
|
720 frames.
|
|
Maximum Clip Length in 720p
|
1600 frames.
|
|
Maximum Clip Length in NTSC/PAL
|
3600 frames.
|
|
Media Pool Still Image Format
|
PNG, TGA, BMP, GIF, JPEG and TIFF.
|
|
Media Pool Video File Format
|
TGA Sequence.
|
|
Media Pool Audio File Format
|
WAV, MP3 and AIFF.
|
|
Multi View Monitoring
|
|
Number of Windows
|
1 x 10
|
|
Routable Windows
|
8
|
|
Tally
|
Red for program and green for preview indication.
|
|
Windows Source Labels
|
Yes
|
|
Software:
|
|
Operating Systems
|
Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later.
Windows 7 64-bit or Windows 8 32-bit or 64-bit.
|
|
General:
|
|
Physical Installation
|
1 Rack Unit Size
|
|
Input Voltage
|
110-240 V AC
|
|
Power Usage
|
60 Watts
|
|
Dimensions (WxHxD)
|
19 in x 9.25 in x 1.73 in
|
|
Weight
|
5.73 lbs
|
|
Operating Temperature
|
0? to 40? C (32? to 104? F)
|
|
Storage Temperature
|
-20? to 60? C (-4? to 113? F)
|
|
Relative Humidity
|
0% to 90% non-condensing
|
|
What’s Included
|

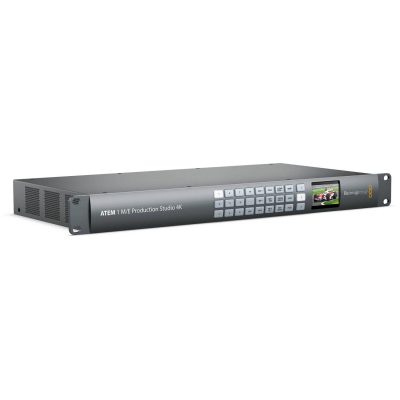

ATEM 1 M/E Production Studio 4K
Software CD
|
