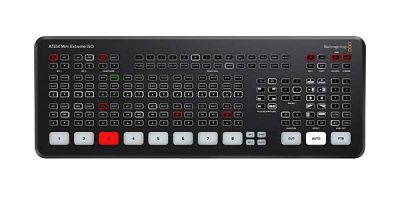

Blackmagic ATEM Mini Extreme ISO
Blackmagic ATEM Mini Extreme ISO
Click to enlarge
Home » Shop » Video » Switcher and Encoder » Video Switcher with Encoder » Blackmagic ATEM Mini Extreme ISO Live Production Switcher
Blackmagic ATEM Mini Extreme
Blackmagic ATEM Mini Extreme Live Production Switcher SGD 1,285.00 excl. Tax
Back to products
Blackmagic Pocket Cinema Camera Pro EVF
Blackmagic Pocket Cinema Camera Pro EVF for 6K Pro SGD 632.00 excl. Tax

Blackmagic ATEM Mini Extreme ISO Live Production Switcher

SGD 1,673.00 excl. Tax

Product Highlights

  • 8 HDMI inputs and 4 HDMI outputs
  • Built-in SuperSource feature for creating picture-in-picture and multi-box effects with up to 4 independent DVEs and keys
  • Advanced chroma keying with green and blue screen options
  • Stream and record up to 1080p60 video in H.264 or H.265
  • Recording of all inputs as separate video files for later editing
  • DaVinci Resolve project file for automatic editing and color correction
  • 6-band parametric EQ and compressor for advanced audio control
  • Range of audio mixing and processing tools, including 2-band EQ and dynamics processing
  • 3.5mm audio input for connecting a microphone or other audio source
  • HDMI, USB, and Ethernet connections for flexible setup and control.
Weight 4 kg
Blackmagic Design
SKU: SWATEMMINICEXTISO Categories: ,
Description
Our Score
Click to rate this post!
[Total: 5 Average: 5]

Blackmagic ATEM Mini Extreme ISO Live Production Switcher

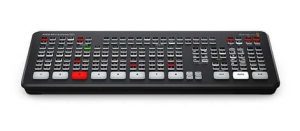

Blackmagic ATEM Mini Extreme ISO
The Blackmagic Design ATEM Mini Extreme ISO is a powerful and versatile live production switcher that offers a wide range of features for professional live streaming and production. The device features 8 HDMI inputs, 2 HDMI outputs, and one program output, and includes advanced features such as built-in streaming, ISO recording, and multi-view output.

One of the standout features of the ATEM Mini Extreme ISO is its ability to stream live to multiple platforms, such as YouTube, Facebook, and Twitch, directly from the device. This feature allows users to easily stream their event without the need for a separate streaming software or device. The device also allows users to record all inputs and the program output to a computer via USB, which is useful for later editing and broadcasting.

The ATEM Mini Extreme ISO also offers advanced video processing capabilities, including a built-in DVE (Digital Video Effects) for adding professional-quality transitions and effects to live production.

Additionally, the device includes a built-in audio mixer for adjusting audio levels and adding sound effects. The device also supports multi-view output, which allows users to see all of their video sources on one screen, making it easy to monitor and switch between sources during live production.

The ATEM Mini Extreme ISO also offers a wide range of connectivity options. It supports HDMI, SDI, and USB connections, which means it is compatible with a wide range of professional video equipment, including cameras, decks, and recorders. Additionally, the device includes a built-in talkback feature, which allows users to communicate with their camera operators while they are recording.

In terms of drawbacks, It is a bit more expensive than other live production switchers in its class. Additionally, it is a bit larger and heavier than other devices, making it less portable than some other options.

Overall, this model is a powerful and versatile live production switcher that is perfect for professional live streaming and production. Its advanced features, such as built-in streaming, ISO recording, and multi-view output, make it an excellent choice for anyone looking for a high-quality live production switcher. The device’s wide range of connectivity options, including HDMI, SDI, and USB, make it compatible with a wide range of professional video equipment, and the built-in talkback feature allows users to communicate with their camera operators while recording. The device is a bit expensive and less portable, but if you are looking for a high-end professional live production switcher, the ATEM Mini Extreme ISO is an excellent choice.

ATEM Mini Family product

ATEM Mini Multi-Camera Live Production Switcher

ATEM Mini Pro Multicamera Live Production Switcher

ATEM Mini Pro ISO Live Production Switcher

ATEM Mini Extreme Live Production Switcher

ATEM Streaming Bridge Switcher and Converter

Other Reading Material

ATEM Mini Family Products: Affordable Multi-camera Live Production Switcher

Indhu UC added on 27 Jan 2023
M by Sankari 27 Feb23
Ind H-6/3/23

Specifications
Our Score
Click to rate this post!
[Total: 5 Average: 5]
Connections
Total Video Inputs 8
Total Outputs 4
Total Aux Outputs 2
Total Audio Inputs 2 x 3.5mm stereo mini jack.
Total Audio Outputs 1 x 3.5mm stereo mini jack.
Timecode Connection None
HDMI Video Inputs 8 x HDMI type A, 10-bit HD switchable. 2-channel embedded audio.
Video Input Re-Sync On all 8 HDMI inputs.
Frame Rate and Format Converters On all 8 HDMI inputs.
HDMI Program Outputs 2
Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection.
Computer Interface 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection.
Standards
HD Video Input Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards None
Video Sampling 4:2:2 YUV
Color Precision 10-bit
Color Space Rec 709
HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz
Colourspace Conversion Hardware-based real-time.
Product Specifics
Upstream Keyers 4
Downstream Keyers 2
Advanced Chroma Keyers Up to 4
Linear/Luma Keyers Up to 4
Transition Keyer DVE only.
Total Number of Layers 9
Pattern Generators 5
Color Generators 2
DVE With Borders and Drop Shadow 2
Interface Minimum monitor resolution of 1366 x 768.
Audio
Audio Mixer 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak Metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input Unbalanced stereo
Analog Input Delay Up to 8 frames
Input Impedance 1.8k
Max Input Level +6dBV
Mic Plug-In Power Available on both 3.5mm mini jack connections.
Streaming
Direct Streaming ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording
Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video Recording 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio Recording 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2-channel audio inputs and 8 x HDMI 2-channel embedded audio inputs.
Switching Program switching recorded as a DaVinci Resolve project .drp file.
Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi View Monitoring
Multi View Monitoring Configurable to 16, 13, 10, 7, or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status, and Audio Meters.
Multi-View Video Standard HD
Media Player
Media Players 2
Channels Fill and key for each Media Player.
Media Pool Still Image Capacity 20 with fill and key.
Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG, and TIFF.
Control
Control Panel Built-in control panel. Software control panel with camera control included. Supports optional hardware panel.
Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet is used for direct connection between the panel and chassis or via a network. ATEM Mini Extreme ISO also supports a direct USB‑C connection. Ethernet or USB‑C is used for updating the software.ATEM Mini Extreme also supports a direct USB‑C connection. Ethernet or USB‑C is used for updating the software.
Control Panel Compatibility Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel, and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using the Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel Included ATEM Software Control Panel is included free for Mac 10.14, Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later, and Windows 10 64-bit only.
Software
Software Updates Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating Systems Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit.
Power Requirements
Power Supply 1 x External 12V power supply.
Power Usage 36W
Physical Specifications
Dimensions (W x H x D) 370mm x 39.6mm x 136.6mm
Environmental Specifications
Operating Temperature 5° C to 40° C (41° – 104° F)
Storage Temperature -10° to 60° C (14° to 140° F)
Relative Humidity 0% to 90% non-condensing
Warranty 12 Months Limited Manufacturer’s Warranty.
In The Box
Our Score
Click to rate this post!
[Total: 5 Average: 5]
  • ATEM Mini Extreme ISO
  • External 12V DC power supply with international socket adapters
