Blackmagic ATEM Mini Extreme Live Production Switcher

Blackmagic ATEM Mini Extreme Professional Live Production and Streaming Switcher

The Blackmagic ATEM Mini Extreme is a top-tier video switcher crafted for professional live production and streaming. It elevates the capabilities of its predecessor, the ATEM Mini Extreme, by integrating a range of advanced features, rendering it ideal for intricate, high-quality broadcasts. This device holds utmost significance for individuals seeking to enhance their live production setup, spanning broadcasting, live events, streaming, and corporate presentations.

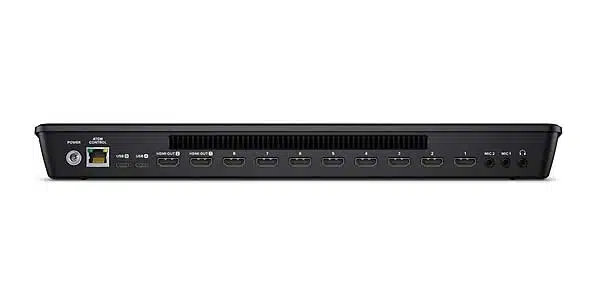

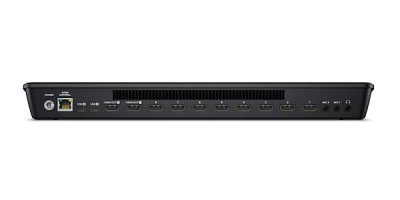

The ATEM Mini Extreme is a state-of-the-art switcher designed for true professionals. It encompasses all the features of the ATEM Mini Pro, plus boasts 8 HDMI inputs, 2 distinct HDMI outputs, 2 USB ports, and a headphone connection. Additionally, it offers 4 chroma keyers, 6 picture-in-picture DVEs, 2 media players, and a multiview with up to 16 viewpoints.

Atem Mini Extreme Accelerated video production and live streaming:

Live production presents the quickest path to a polished program, enabling simultaneous streaming to a global audience via platforms like YouTube. Blackmagic ATEM Mini Extreme models incorporate an integrated hardware streaming engine, compatible with any streaming software, facilitating direct streaming via Ethernet to popular social media platforms. Depending on the model, up to 8 HDMI inputs allow for multiple camera angles, such as wide shots and close-ups of each performer. Connect to a computer for PowerPoint slideshows, websites, or gaming consoles, all switching in real-time, enabling live streaming to platforms such as YouTube, Facebook, Twitch, and more.

Comprehensive Broadcast Quality Switcher:

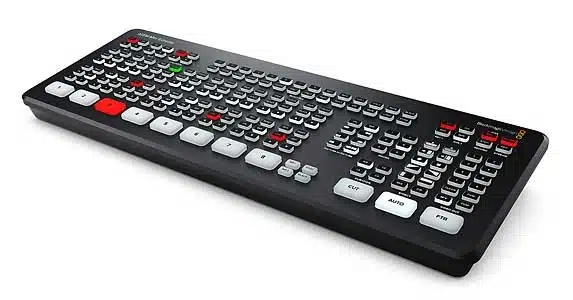

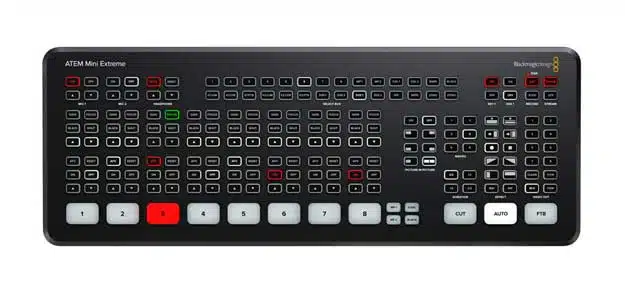

ATEM Mini Extreme’s compact, all-in-one design incorporates both a control panel and connections. The front panel features user-friendly buttons for source selection, video effects, and transitions. Large source buttons allow tactile operation, enabling the presenter to manage switching. There are also buttons for audio mixing, recording, streaming control, and output selection, allowing you to switch video output between cameras, programs, and multiviews. The rear panel houses HDMI connections for cameras, computers, or gaming consoles, additional microphone inputs, USB for webcam output, and an HDMI “aux” output for program video.

User-Friendly and Quick to Master:

No switcher has been simpler to operate; just press any of the input buttons labeled numerically on the front panel to switch between video sources. Choose between cut or effect transitions by selecting the cut or auto buttons. The auto button signals ATEM Mini to use a video effect when switching inputs, with transitions like dissolve or more dramatic effects such as dip to color, DVE squeeze, and DVE push. Add a DVE effect for picture-in-picture effects with custom picture positions and backgrounds. There are also “media players” acting as a still store for titles and graphics loaded via external software control.

ATEM Mini Extreme Supports Live Interviews Streaming:

Blackmagic ATEM Mini Extreme excels in interview settings, accommodating multiple cameras for close-ups of the host or interviewee, as well as wide shots. Its compact size allows the host to switch, even in small studios. ATEM Mini Extreme’s built-in streaming supports live streaming to YouTube, Facebook, and more.

Enhanced Business Presentations via Skype:

Elevate your business presentations on Skype, as ATEM Mini Extreme is recognized as a webcam by Skype settings. Use one camera for close-ups, another for wide shots, and a computer for PowerPoint presentations. The presenter can even utilize picture-in-picture.

Live Streaming eSport Competitions:

Stream eSport competitions to Twitch by connecting multiple gaming consoles and a camera for the presenter. Blackmagic ATEM Mini Extreme operates at up to 60 frames per second for rapid gameplay, allowing for picture-in-picture commentary. Titles can even be downloaded directly from Photoshop.

Kickstarter and Investor Presentations:

Increase the professionalism of Kickstarter or investor presentations to fund your new product idea. Connect a camera for the presenter, another for product close-ups, and a computer for business plan slides. Present live via Skype or Zoom, and post recordings for investors to view later.

Education and Training:

The ATEM Mini Extreme is ideal for educational videos. Setup is fast and easy, allowing for travel to various locations to record live multi-camera video productions on a broad range of educational topics. Connect computers and cameras and use the ATEM Software Panel to load titles and perform video effects.

Connect Up to 8 independent cameras:

Depending on the model, connect multiple cameras with 4 or 8 HDMI inputs for various views. Video cameras with HDMI outputs provide superior quality compared to simple webcams, using higher-quality lenses and offering better low-light sensitivity. All video sources will re-sync to the switcher if they operate at different video standards, ensuring seamless connectivity. Cameras with HDMI often support interchangeable lenses, allowing wide-angle lenses for wide shots and zoom lenses for close-ups. Utilize the low light capability of better cameras for theater productions, weddings, school concerts, and music videos.

HDMI Video and USB Webcam Outputs:

All ATEM Mini Extreme models feature a USB that functions as a simple webcam source, ensuring maximum compatibility. Connect to a computer and work with any video software, with the software perceiving the ATEM Mini Extreme as a regular webcam but functioning as a live production switcher, ensuring full compatibility with any video software and in full resolution 1080HD quality. Choose any software like Zoom, Microsoft Teams, or Skype for professional multi-camera broadcast-quality presentations. The ATEM Mini Extreme webcam output also works with streaming software like Open Broadcaster, XSplit Broadcaster, and more.

Live Stream via Ethernet:

Blackmagic ATEM Mini Extreme includes a built-in hardware streaming engine for live streaming via Ethernet connections without requiring a computer. Stream to YouTube, Facebook, and Twitch in superior quality, without dropped frames, and with simpler settings. Select the streaming service and enter the streaming key. ATEM Software Control provides palettes for streaming setup, with streaming status displayed in the multiview. The data rate indicator shows the internet speed required for the video format in use, making streaming status easy to understand. If you are technically inclined, update streaming profiles in an XML settings file to load new services.

Connect 5G or 4G phones for mobile data:

For on-location live production, connect an Apple or Android smartphone to the USB port to use mobile data. It’s a great backup for the main Ethernet connection. Phone tethering supports the latest high-speed 5G phones and common 4G phones. The ATEM Mini Extreme switcher will automatically detect when a phone is connected to the USB port and switch its internet connection to use it, eliminating the need to change settings. When connected, the phone will draw power from the USB port, remaining charged from the switcher. Using phone tethering and mobile data, ATEM Mini switchers become the perfect mobile production solution.

Record directly to USB Flash Disks:

ATEM Mini Extreme supports direct recording of streaming data to USB flash disks, offering extended recording times in H.264 video files with AAC audio. This allows direct uploads to online video sites like YouTube or Vimeo. Recording to multiple disks is supported via a USB hub or Blackmagic MultiDock, enabling continuous recording when a disk fills. Record settings and disk selection are configured in ATEM Software Control, with record status viewable in the built-in multiview. You can even remotely trigger recording on connected Blackmagic Pocket Cinema Cameras.

Add exciting video effects:

One of ATEM Mini Extreme’s advantages is the professional production values achievable with the built-in video effects. The cut button ensures an immediate cut when switching between sources, while the auto button enables video effect transitions. Duration buttons allow for 0.5, 1, 1.5, and 2-second settings for video effects. Choose the desired effect type, including mix for smooth transitions between sources and dip, which fades via a color during transitions. Fun DVE effects move the image offscreen when transitioning between sources.

Work with Professional Microphones:

With two independent 3.5mm stereo audio inputs, connect desktop and lapel microphones or even a music player for introductory music before the program starts. The additional stereo audio inputs ensure a host and guest both have lapel microphones during interviews. All audio inputs feature panel buttons for adjusting audio levels and enabling inputs into the audio mixer. All models come with a Fairlight audio mixer, connecting all HDMI inputs and both microphone inputs to the audio mixer, allowing for live mixing from all audio sources. The ATEM Mini Extreme adds a headphone output.

Automatically Convert Any HDMI Input Format:

Each HDMI input has its own dedicated standards converter, enabling automatic conversion of 1080p, 1080i, and 720p sources to the switcher video standard. By default, the switcher sets its video format automatically, though you can also set the switcher to any video standard. The HDMI outputs function as true “aux” outputs, allowing clean switching of each HDMI input to the output. For low latency eSport productions, “direct” switch input 1 to the HDMI output. The HDMI output can display a full multiview, showing all inputs, programs, previews, and streaming statuses on a single monitor.

Secret Broadcast Features Built In:

Despite its ease of use, ATEM Mini Extreme conceals powerful broadcast features. Ideal for training in the television industry, ATEM Mini Extreme features ATEM Advanced Chroma Key, Fairlight audio mixer, DVE, still storage for graphics, and more. Run the free ATEM Software Control app on Mac or Windows while connected via USB or Ethernet to access ATEM Mini’s extended features. With some experimentation, produce broadcast-quality live productions. Only the ATEM Mini Extreme offers a true broadcast switcher in a compact, affordable design.

ATEM Mini Extreme Includes Free ATEM Software Control Panel:

The ATEM Software Control app unlocks ATEM Mini Extreme’s hidden power, granting access to every feature in the switcher. ATEM Software Control presents a visual switcher user interface with parameter palettes for quick adjustments. Connect via USB, or multiple users can connect using separate copies of ATEM Software Control on different computers when connected via Ethernet. The software allows for full audio mixing with effects, still frame loading, and advanced macro programming. Save the switcher state as an XML file. Control HyperDeck disk recorders via Ethernet for clip playback.

ATEM Mini Extreme Digital Video Effects Processor:

ATEM Mini Extreme’s digital video effects processor, DVE, allows picture-in-picture effects and impressive DVE transitions. The DVE includes a wide range of push, squeeze, and swoosh transitions. Position picture-in-picture effects with customizable 3D borders, shadows, and lighting. Choose from pre-set positioning or precisely set the DVE via the included ATEM Software Control.

ATEM Mini Extreme Provides Professional Broadcast Transitions:

ATEM Mini Extreme provides a selection of built-in transitions, including cut, mix, dip, and exciting SMPTE wipes. Each transition features parameters for customizing duration, border color, border width, position, and direction. Create unique effects with border and color controls to make transitions match the program’s style. Add dip transitions by fading to black, white, or any color before transitioning to the next source. Use logos or sponsor graphics loaded into the media players for dips. The wipe transition creates over 100 patterns like circles, diamonds, squares, and more.

ATEM Mini Extreme Includes Built-In Graphics with Photoshop Plug-In:

ATEM Mini Extreme includes a built-in media player for titles, motion graphics, and stingers. It supports popular formats like PNG, TGA, BMP, GIF, JPEG, and TIFF. Load media from ATEM Software Control, including a Photoshop plug-in that enables direct download of graphics from Photoshop to the switcher. This is perfect for fast changes to live on-air graphics, ideal for news and sports. ATEM Mini Extreme features 2 media players and 20 still image capacities, making it perfect for high-end work.

Includes New ATEM Advanced Chroma Key

For news or on-set presentation work, ATEM SDI is perfect as it features the powerful ATEM Advanced Chroma Key for green screen keying effects. The chroma keyer is incredibly powerful and features a color picker to sample background colors for the automatic generation of the key parameters. You get precise controls for edge and flare, and there is even a foreground color corrector so you can match the foreground and background layers for seamless compositions. You can even use it for title overlays by creating graphics with a green or blue background. Plus the ATEM SDI Extreme includes a massive 4 separate ATEM Advanced Chroma Keyers, for a keyer per camera, allowing virtual set production.

Software Control App Included:

ATEM Software Control app allows external control of ATEM Mini from a computer or tablet via USB or Ethernet. The app provides a visual user interface for fast adjustments, enabling live production with ease.

Integrate into larger facilities:

The ATEM Mini Extreme models can control up to 8 external cameras via the HDMI connection. Blackmagic Pocket Cinema Camera 4K and 6K models work with ATEM Mini, integrating camera control, tallying, and recording triggering. Adjust iris, gain, white balance, shutter speed, focus, and zoom control, offering complete camera control from the switcher. Use color correction for creative looks, and control camera settings like gain and white balance. The camera control panel in the software allows for comprehensive color balance adjustments, ensuring professional-grade production quality.
