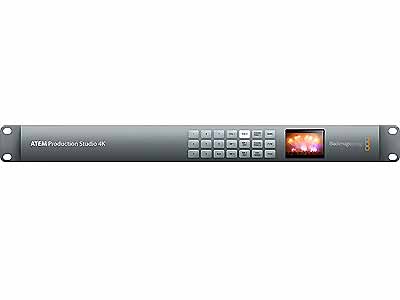

Blackmagic ATEM Production Studio 4K Live Production switchers
SGD 2,502.99 excl. Tax
Product Highlights:
- Advanced Live Production switchers
- Connect up to 8 SD, HD, or Ultra HD 4K video cameras, disk recorders
- Dual Media Players Large graphics memory
- Support up to 32 Ultra HD RGBA still frame graphics
- ATEM software control panel for both Mac and Windows
| Weight | 6 kg |
|---|
This product has been discontinued.
Description
Click to rate this post!
[Total: 4 Average: 4.8]
Blackmagic ATEM Production Studio 4K The World’s Most Advanced Live Production switchers
The Blackmagic ATEM Production Studio 4K lets you connect up to 8 SD, HD, or Ultra HD 4K video cameras, disk recorders, and computers to do true broadcast-quality work. Chroma key, transitions, media pools, downstream keyers, audio mixers, multi-view, and the first 6G-SDI and HDMI 4K video connections in the world are all included in this professional switcher.
Dual Media Players Large graphics memory
ATEM production switchers include media pool memory that lets you download still frames and graphics for keying using the two built-in media players. All popular image formats are supported, or you can direct download from Photoshop CC with the included plug-in. ATEM Production Studio 4K models support up to 32 Ultra HD RGBA still frame graphics, while ATEM 4 M/E Studio 4K supports 64 Ultra HD RGBA still frame graphics and 180 frames of real-time Ultra HD video or 720 frames of real-time 1080 HD video.
Add the Speed and Power of an ATEM Hardware Panel
ATEM Production Studio 4K has a wide range of control panel options with 3 models of ATEM Advanced Panels available. ATEM Advanced Panels feature an industry standard, familiar M/E style layout. Each panel has built?in LCDs for menus, high-quality buttons with customizable illumination color, a DVE joystick plus a T?bar fader. You can even set up and trigger Macros. All rows of M/E buttons include integrated LCDs for dynamic input button labeling. The 1 M/E model features a single M/E row with 10 input buttons. The 2 M/E model features 2 M/E rows with 20 input buttons. The massive 4 M/E model features 4 M/E rows with 40 input buttons per row and 4 independent system control LCD screens.
Software Control Panel
Included free with every ATEM live production switcher is the beautifully designed ATEM software control panel for both Mac and Windows. With a full visual switcher control panel and parameter palettes for quick switcher adjustments, you can load graphics into the media pool, adjust the audio mixer, control, and balance cameras, update switcher settings, and more. For the ultimate in portability, you can use the ATEM software on a laptop, so you can work easily in small spaces with full control of all the switcher?s features.
ATEM Live Production Switchers:
ATEM 1 M/E Production Studio 4K
ATEM 2 M/E Production Studio 4K
M by Sankari 27 Feb23
Add-R-Ind-05.12.23
Specifications
Click to rate this post!
[Total: 4 Average: 4.8]
| Connections | |
| Total Video Inputs | 8 |
| Total Video Outputs | 6 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G. |
| Total Audio Inputs | 2 x XLR. 2 x RCA. |
| Total Audio Outputs | 2 x XLR Program. |
| Timecode Connections | None |
| SDI Video Inputs | 4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio. |
| HDMI Video Input | 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio. |
| SDI Audio Outputs | 2 channels are embedded into SDI output. |
| Reference Input | Tri-Sync or Black Burst. |
| Video Input Re-Sync | On all 8 inputs. |
| SDI Program Outputs | 1 x 10-bit SD/HD/Ultra HD 4K switchable. |
| HDMI Program Outputs | 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. |
| Down Converted SDI Program Outputs | 1 x 10-bit HD (Ultra HD 4K to HD). |
| SDI Aux. Output | 1 |
| Total Multi Views | 1 |
| SDI Multi View Outputs | 1 |
| HDMI Multi View Outputs | 1 |
| Control Panel Connection | Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 1080i50, 1080i59.94 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| HDMI Input Resolutions for Computers |
720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz, 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz |
| Colorspace Conversion | Hardware-based real-time. |
| Processing Delay | 1 Line. |
| Audio Mixer | 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring. |
| 4K to HD Down Conversion | Yes, program x 1. |
| Product Specifics | |
| Upstream Keyers | 1 with Chroma/Linear/Luma key. |
| Downstream Keyers | 2 |
| Chroma Keyers | 1 |
| Talkback Support | None |
| Mix-Minus Support | None |
| Linear/Luma Keyers | 3 |
| Transition Keyer (Stinger/DVE) | None |
| Total Number of Layers | 4 |
| Pattern Generators | 3 |
| Color Generators | 2 |
| DVE with 3D Borders & Drop Shadow |
None |
| Display interface | Minimum monitor resolution of 1366 x 768. |
| Number of Windows | 1 x 10 |
| Routable Windows | 8 |
| Tally | Red for the program and green for preview indication. |
| Windows Source Labels | Yes |
| Control Panel | Software or optional hardware panel. |
| Media Player | |
| Media Player | 2 |
| Media Pool Still Image Capacity | 20 with fill and key. |
| Media Pool Clip Capacity | None |
| Media Player Clip Length in 720 HD | None |
| Media Player Clip Length in 1080 HD | None |
| Media Player Clip Length in Ultra HD | None |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG, and TIFF. |
| Media Pool Video File Format | None |
| Media Pool Audio File Format | None |
| Channels | Fill and key for each Media Player. |
| Multi View Monitoring | |
| Multi View Monitoring | 1 x 10 Views. |
| Multi-View Video Standard | HD |
| Display | |
| Interface | Minimum monitor resolution of 1366 x 768. |
| Front Panel | Built-in LCD monitor for video and 42 LED buttons for Aux switching. |
| Software | |
| Control Panel Included | ATEM Software Control Panel included free for Mac 10.10 Yosemite, Mac 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit. |
| Tally Output | Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.) |
| Software Updates | Using USB connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility |
| Configuration | Set via ATEM Software Control Panel,excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to the chassis. |
| Operating Systems | Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10. |
| Power Requirements | |
| Power Supply | 1 x Internal 100 – 240V AC. |
| Power Usage | 60W |
| Physical Specifications | 482 mm X 147 mm X 44 mm |
| Weight | 1.7 Kg |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 95% non-condensing |
| Warranty | |
| Warranty | 12-Month Limited Manufacturer’s Warranty. |
In The Box
Click to rate this post!
[Total: 4 Average: 4.8]
- ATEM Production Studio 4K
- Welcome wallet with QR code for software download
Delivery Info
Click to rate this post!
[Total: 4 Average: 4.8]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
Reviews (1)
1 review for Blackmagic ATEM Production Studio 4K Live Production switchers
Clear filters
Only logged in customers who have purchased this product may leave a review.
Related products
SGD 4,443.65 excl. Tax
SGD 11,254.55 excl. Tax
SGD 7,829.55 excl. Tax
Product Specialist –
Elevate Your Broadcasting Game with the Blackmagic ATEM Production Studio 4K
Embarking on a recent investment in the Blackmagic ATEM Production Studio 4K has proven to be a transformative experience for my approach to live productions. This professional-grade switcher has not only met but exceeded expectations, offering a comprehensive array of features that cater to the diverse needs of broadcasters.
One of the standout aspects of the ATEM Production Studio 4K is its remarkable versatility, allowing seamless connection to up to 8 SD, HD, or Ultra HD 4K video sources. This capability alone positions it as an invaluable tool for a wide range of broadcasting scenarios, providing the user with the flexibility needed to tackle various production requirements.
The inclusion of Chroma key, transitions, media pools, downstream keyers, and audio mixers ensures that the resulting work is of true broadcast quality. The addition of the world’s first 6G-SDI and HDMI 4K video connections further solidifies its status as a game-changer, guaranteeing unparalleled video quality and setting a new standard in the industry.
Delving into its creative capabilities, the ATEM Production Studio 4K boasts dual media players and a substantial graphics memory. This feature set enables users to seamlessly integrate still frames and graphics into their productions. Supporting all popular image formats and facilitating direct downloads from Photoshop CC through the included plug-in, the switcher provides a user-friendly and efficient workflow for incorporating visual elements into broadcasts. The ability to support up to 32 Ultra HD RGBA still frame graphics is particularly noteworthy, making it a suitable choice for productions with demanding visual requirements.
For those seeking an even higher level of control, the option to incorporate an ATEM hardware panel is a strategic move. The ATEM Advanced Panels, available in three models, offer an industry-standard M/E style layout. Each panel is equipped with built-in LCDs for menus, high-quality buttons with customizable illumination color, a DVE joystick, and a T‑bar fader. The 4 M/E model, in particular, stands out with 40 input buttons per row and 4 independent system control LCD screens, providing an unprecedented level of control and flexibility.
Complementing the hardware options is the included software control panel, available for both Mac and Windows. Its thoughtful design provides a full visual switcher control panel and parameter palettes for quick adjustments. This software enhances the overall user experience by allowing the loading of graphics into the media pool, audio mixer adjustments, camera control and balancing, switcher settings updates, and more. The added bonus of portability, with the ability to use the software on a laptop, ensures that users can work efficiently in constrained spaces without compromising on control.
In conclusion, the Blackmagic ATEM Production Studio 4K stands as a formidable powerhouse for those serious about achieving professional broadcast-quality results. Its advanced features, versatile connectivity options, and the availability of optional hardware panels set it apart in the realm of live production switchers. This product comes highly recommended for individuals and organizations seeking to elevate their broadcasting endeavors to new heights.
