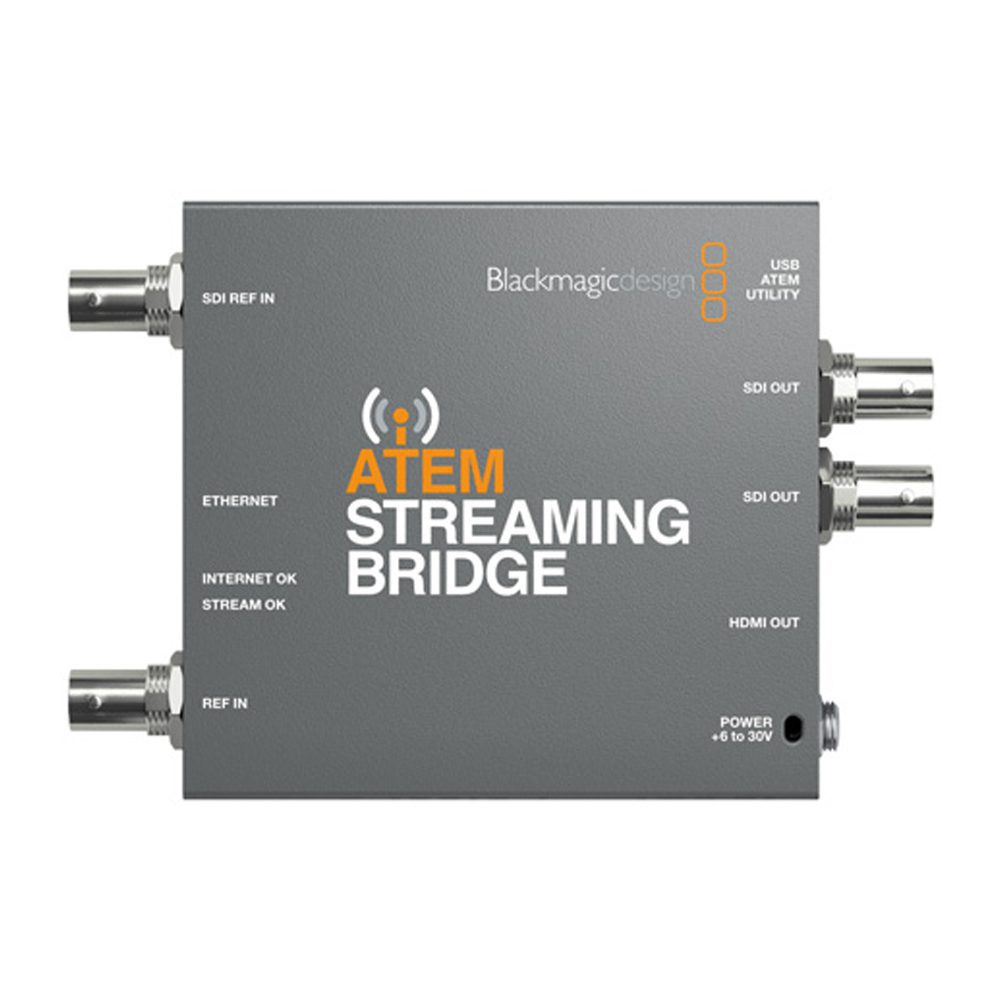

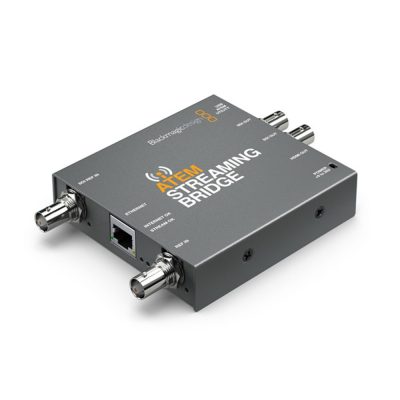

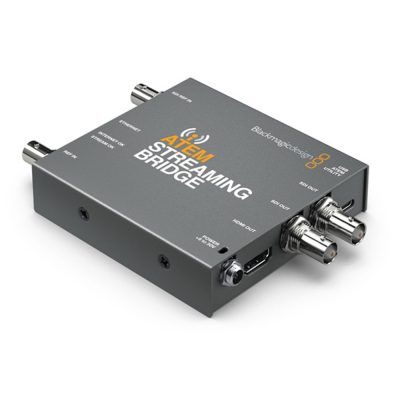

Blackmagic ATEM Streaming Bridge Switcher and Converter

SGD 339.00 excl. Tax

Product Highlights

  • Connects ATEM Mini Pro, ATEM Mini Pro ISO, or ATEM Mini switchers to streaming platforms
  • Transmits video to up to 16 devices simultaneously over Ethernet
  • Supports resolutions up to 1080p60
  • H.264 video compression for efficient streaming
  • Remote control of ATEM switchers using the ATEM Software Control application
  • Low latency video transmission for real-time monitoring and control.
Weight 1 kg
Blackmagic Design
SKU: SWATEMMINISBPR Category:
Description
Our Score
Click to rate this post!
[Total: 4 Average: 5]

Blackmagic ATEM Streaming Bridge

ATEM Streaming Bridge

The Blackmagic Design ATEM Streaming Bridge is a powerful device that allows users to bridge multiple ATEM switchers together, creating a larger, more advanced live production setup. It connects to multiple ATEM switchers via Ethernet and allows users to control them remotely, making it easy to switch between multiple video sources and adjust settings.

One of the standout features of the ATEM Streaming Bridge is its ability to connect multiple ATEM switchers together, allowing users to expand their live production setup. This feature allows users to switch between multiple video sources, such as cameras and decks, and create advanced video effects and transitions.

The device also supports RTMP and RTMPS protocols, which means it can be used to stream to custom streaming platforms, such as a private streaming server.

The ATEM Streaming Bridge also offers advanced video processing capabilities, including the ability to adjust video resolution, bitrate, and frame rate. Additionally, the device includes a built-in audio encoder, which allows users to stream audio in high quality. The device also supports closed captioning, which is useful for compliance with accessibility regulations.

The ATEM Streaming Bridge also offers a wide range of connectivity options. It supports Ethernet connections, which means it is compatible with a wide range of ATEM switchers. Additionally, the device includes a built-in web interface, which allows users to configure and control the device remotely.

In terms of design, the ATEM Streaming Bridge is a compact and lightweight device that can be easily mounted on a rack. Its simple, user-friendly interface makes it easy for even novice users to configure and control the device. The device is also power efficient, which means it can be used for extended periods of time without worrying about power consumption.

In terms of drawbacks, the ATEM Streaming Bridge is a bit more expensive than other similar devices in its class., but it is worth the value when it works with Atem Switcher

Overall, the Blackmagic Design ATEM Streaming Bridge is a powerful device that allows users to bridge multiple ATEM switchers together, creating a larger, more advanced live production setup. Its ability to connect multiple ATEM switchers, advanced video processing capabilities, and wide range of connectivity options make it an excellent choice for anyone looking to expand their live production setup. The device’s high cost and requirement of multiple ATEM switchers to work are downsides, but its advanced features, ease of use, and compatibility with a wide range of equipment make it a great option for professional live streaming and production.

If you already have multiple ATEM switchers and looking to expand your setup, the ATEM Streaming Bridge is an excellent choice.

ATEM Mini Family product

ATEM Mini Extreme Live Production Switcher

ATEM Mini Multi-Camera Live Production Switcher

ATEM Mini Pro Multicamera Live Production Switcher

ATEM Mini Pro ISO Live Production Switcher

ATEM Mini Extreme ISO Live Production Switcher

Other Site

ATEM Streaming Bridge

Other Reading Material

ATEM Mini Family Products: Affordable Multi-camera Live Production Switcher

Indhu UC added on 27 Jan 2023
M Steven 27/Feb23
Ind H-6/3/23

Specifications
Our Score
Click to rate this post!
[Total: 4 Average: 5]
Connections
SDI Reference Inputs 1 x 3G-SDI
SDI Video Outputs 2 x 3G-SDI
SDI Audio Outputs 2 Channels embedded in HD-SDI.
HDMI Video Output HDMI type A out.
HDMI Audio Outputs 2 Channels embedded in HDMI.
SDI Rates 1.5G, 3G.
Reference Input Black burst and Tri-Sync.
Ethernet Ethernet supports 10/100/1000 BaseT.
Updates and Configuration 1 x USB Type-C for software configuration and software updates.
Standards
SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
SDI Video Sampling 4:2:2
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 10-bit
SDI Color Space YUV
Streaming
Streaming Input ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini Pro and ATEM Mini Pro ISO.
Software Internal software upgrade via updater application.
Operating Systems Mac 10.14 Mojave, Mac 10.15 Catalina, or later. Windows 8.1 and 10, both 64-bit.
Settings Control Mini Switches or setup utility software when connected by USB.
Power Requirements
Power Supply +12V universal power supply included with international socket adapters for all countries.
Power Consumption 6W max.
Operational Voltage Range 6 – 30V DC.
EMC Certifications
Power Supply EMC, FCC, CE, and KCC.
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non‑condensing
Warranty 1-Year Limited Manufacturer’s Warranty.
In The Box
Our Score
Click to rate this post!
[Total: 4 Average: 5]
  •  ATEM Streaming Bridge
  • 12V universal power supply with international socket adapters
