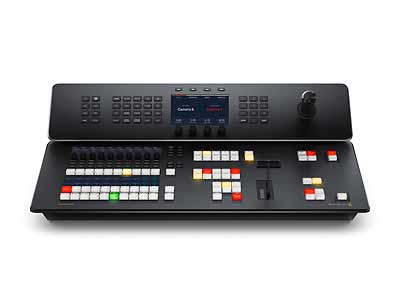

Name: Blackmagic ATEM Television Studio 4K8 Live Production Switcher
Brand: Blackmagic
SKU: ATEM Television Studio 4K8
Rating: 5 (5 reviews)

Description

Click to rate this post!

[Total: 5 Average: 5]

Blackmagic ATEM Television Studio 4K8 All-in-one Advanced Ultra HD live Streaming Production switcher

The Blackmagic ATEM Television Studio 4K8 is an advanced Ultra HD live production switcher that integrates a built-in broadcast control panel, making it a comprehensive solution for live video production. This switcher is designed to provide a full-featured broadcast-quality production studio, ideal for a variety of live production scenarios.

Key Features of Blackmagic ATEM Television Studio 4K8:

1. Integrated Broadcast Control Panel:

Combines a switcher and control panel into a single, portable unit.
Front panel buttons for source selection, transitions, and video effects setup.
High-end controls are similar to those found on expensive broadcast switchers.

2. Video Inputs and Outputs:

8 12G-SDI inputs allow the connection of multiple cameras, supporting various video standards and automatic re-syncing.
10 12G-SDI aux outputs for external recorders and stage monitors.
SDI inputs are equipped with dedicated standard converters for seamless integration of 720 HD, 1080 HD, or 2160 Ultra HD sources.

3. Built-in Features:

Streaming and Recording: The built-in hardware streaming engine supports live streaming on platforms like YouTube, Facebook, and Twitch. Recording can be done directly to USB flash disks or optional internal M.2 flash storage.
Audio Mixer: Fairlight audio mixer with channels for all SDI inputs, XLR, RCA, and MADI inputs. Features 6-band parametric EQ, compressor, limiter, expander, noise gate, and level and pan controls.
Multiview: Professional multiview output on SDI or HDMI, supporting up to 16 views simultaneously with custom labels and tally indicators.
USB Webcam Support: Emulates a webcam over USB for compatibility with any video software in 1080HD quality.
Media Pool: Supports 20 HD or Ultra HD stills and motion graphics clips for animations and stingers, stored in broadcast-quality RGB colorspace with an alpha channel.

4. Advanced Video Effects:

T-bar fader and auto button for smooth transitions.
SMPTE wipes and DVE effects for dynamic transitions.
Joystick for precise DVE positioning and picture-in-picture effects, with full 3-axis control and customizable animated moves.

5. Chroma Keying and SuperSource:

Chroma Keying: 4 ATEM Advanced Chroma Keyers for green screen effects, featuring a color picker for automatic key parameter generation and precise edge and flare controls.
SuperSource: multi-layer processor with 4 extra DVE layers plus a background layer, ideal for multi-picture-in-picture displays.

6. Connectivity and expandability:

4-port 10G Ethernet switch for high-speed connectivity.
Optional internal network shared storage is accessible over local Ethernet for collaborative post-production.
ATEM Microphone Converter for audio input expansion via the MADI port, supporting daisy-chaining of units.

Applications:

The Blackmagic ATEM Television Studio 4K8 is versatile and suitable for a wide range of live production scenarios, including:

Compact Broadcast Vans: Eliminates the need for extensive racks, making it perfect for compact setups.
Broadcast Studios: High-quality live broadcasting with multiple camera inputs and professional audio mixing.

Live Events: Seamless integration and setup on location with robust video effects and chroma keying for dynamic presentations.
Live Sports: The simple design makes it suitable for use by community volunteers, capturing multiple angles with up to 8 cameras.
Podcasting and Web Streaming: Built-in streaming and USB webcam support make it ideal for podcasters and live streamers needing professional-grade production.
Educational Institutions: Perfect for media training and live event coverage with its user-friendly interface and powerful feature set.
Corporate Presentations: High-quality video production for conferences, webinars, and corporate training sessions.

Software and Control:

The ATEM Software Control app is a powerful tool that enhances the functionality of the ATEM Television Studio 4K8. It provides:

Visual Switcher Interface: An intuitive user interface for live switching, audio mixing, and media management.
Parameter Palettes: Adjust settings and parameters for video effects and transitions.
Macro Support: Build and execute complex macros to automate production workflows.
Camera Control: Color correction and camera settings adjustments directly from the software.

Overall, the Blackmagic Design ATEM Television Studio 4K8 is a versatile and powerful switcher designed to meet the needs of modern live production. Its comprehensive feature set, including advanced video effects, professional audio mixing, and robust streaming capabilities, makes it an excellent choice for various live production environments. Whether for a professional broadcast, educational content creation, or live sports coverage, the ATEM Television Studio 4K8 provides all the tools necessary for high-quality live production.

To view more Blackmagic Products

Related Products:

ATEM Production Studio 4K

ATEM Television Studio 4K Pro

ATEM Television Studio Pro HD

Blackmagic ATEM Television Studio HD Switcher

Blackmagic ATEM Television Studio HD8 Live Production Switcher

Blackmagic ATEM Television Studio HD8 ISO Live Production Switcher

Blackmagic ATEM Microphone Converter

Add-R-Ind-05.12.23

Indhu UC added on 29 May 2024

Features

Click to rate this post!

[Total: 5 Average: 5]

All-in-one switcher and control panel design.
Supports connecting up to 8 x 12G-SDI cameras.
Internal media for stills and motion graphics.
8 x standards converted 12G-SDI inputs.
9 x 3G-SDI program video outputs and 10 x 12G-SDI aux outputs.
4 port 10G Ethernet switch.
Audio mixer supports limiter, compressor, 6 bands EQ, and more.
16-way multiview for monitoring all cameras on a single monitor.
Live stream via Ethernet or mobile phones via USB.
USB output operates as a webcam and supports all video software.
Records to USB flash disks or optional internal cloud storage.
Supports remote internet-connected cameras on ISO model.
Includes free ATEM Software Control for Mac and Windows.
Localized for 13 popular languages.

Specifications

Click to rate this post!

[Total: 5 Average: 5]

Connections
SDI Video Inputs	8
SDI Video Outputs	12
SDI Rates	1.5G, 3G, 6G, 12G
HDMI Video Outputs	1
Total Audio Inputs	2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total Audio Outputs	4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
SDI Audio Inputs	4 Ch embedded audio on all SDI inputs.
SDI Audio Outputs	16 assignable channels.
Timecode Connections	1 x BNC In, 1 x BNC Out.
Reference Input	1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video Input Re-Sync	On all 8 inputs.
Frame Rate and Format Converters	On all 8 inputs.
SDI Aux Outputs	10
SDI Program Outputs	1
Webcam Output	2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views	1 x 12G-SDI 1 x HDMI 2.0
Remote	RJ12 supports RS-422
Control Panel Connection	Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator	Yes
Talkback	RJ45 for 3rd party talkback systems.
Tally Output	Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet	4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T.
Computer Interface	2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards
SD Video Standards	None
HD Video Input Standards	720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Input Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance	SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
Video Sampling	4:2:2
Color Precision	10-bit.
Color Space	REC 709, REC 2020
SDI Auto Switching	Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
Product Specifics
Number of Mix Effects Rows	1
Direct Cross Points	10
Shifted Cross Points	20
Crosspoint Button Type	Tri-Color LED
Crosspoint Label	6 rows 24 character LCD
Preview Transition	1
Source Select Bus	1
Dedicated Macro Buttons	10 plus shift 10
Transition Type Buttons	5
Transition Rate	Set via system LCD menu display
Key Buttons	8
AUX Buttons	12
Fader Bar	1
Record Buttons	2
Stream Buttons	2
DSK Transition Selectors	6
Fade to Black Buttons	1
System LCD Displays	1
Numeric Keypad	1
3 Axis Joystick	1
Upstream Keyers	4
Downstream Keyers	2
Advanced Chroma Keyers	4
SuperSource	1
DVEs	2
Linear/Luma Keyers	7
Transition Keyer (Stinger/DVE)	1 Stinger, 1 DVE.
Total Number of Layers	8
Pattern Generators	7
Color Generators	2
Control Panel	Integrated panel with full control of switching and settings.
Routable Windows	16
Windows Source Labels	Yes
Tally	Red for program and green for preview indication.
Talkback Support	Yes
Mix Minus Support	Yes
Streaming
Direct Streaming	Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Recording
Direct Recording Video and Audio	Direct recording to optional internal M.2 flash memory or to external media via USB-C expansion ports.
Video Recording	Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio.
Media Format	Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi View Monitoring
Multi View Monitoring	1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters.
Multi View Video Standard	HD or Ultra HD
Display Minimum Resolution	1366 x 768
Media Player
Media Players	2
Channels	Fill and key for each media player.
Media Pool Still Image Capacity	20
Media Pool Still Image Format	PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Clip Capacity	2 x up to 1080p60.
Media Player Clip Length in 720 HD	720 frames.
Media Player Clip Length in 1080 HD	360 frames.
Media Player Clip Length in 2160 HD	90 frames.
Media Pool Video File Format	TGA sequence.
Media Pool Audio File Format	WAV, MP3 and AIFF.
Processing
Processing Delay	< 10 lines when genlocked and in the same format as the switcher.
Audio Mixer	58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera Control	When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down Conversion	1 x multi view
Software
Control Panel Included	ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11.
Software Updates	Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
Operating Systems	Mac 12.0 Monterey, Mac 13.0 Ventura or later, Windows 10 and 11.
Power Requirements
Power Supply	1 x Internal 100 – 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power Usage	TBA
Physical Installation
Physical Installation	Desktop or in-desk mount.
Environmental Specifications
Operating Temperature	0° to 40° C (32° to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non-condensing
Warranty
Warranty	12 Months Limited Manufacturer’s Warranty.

In The Box

Click to rate this post!

[Total: 5 Average: 5]

ATEM Television Studio 4K8
Welcome wallet with QR code for software download
