Blackmagic ATEM Television Studio Pro HD Live Production Switcher

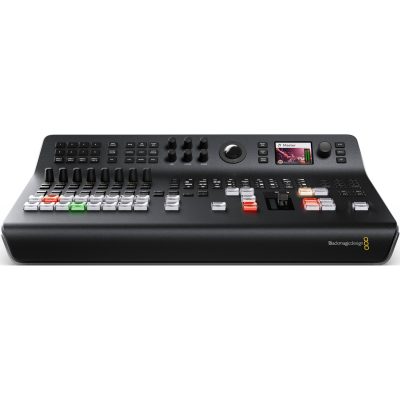

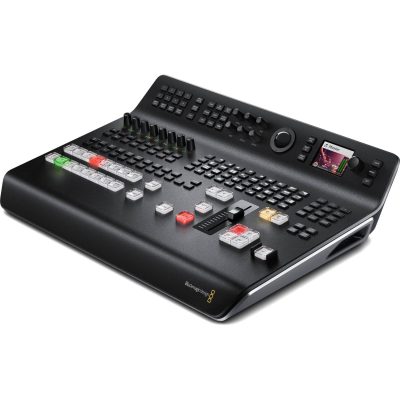

Blackmagic ATEM Television Studio Pro HD is a portable live production switcher for broadcast, professional, and AV users which have been extremely popular because it had powerful features such as 8 inputs, re-sync in each input, built-in DVE, aux out, support for talkback, chroma key, flash-based media store and also a control panel on the front. It is a true professional switcher that is incredibly small and portable, making it suitable for use anywhere. Now, Blackmagic released the new ATEM Television Studio Pro HD, which has all of the same professional features but is integrated inside a professional desktop-mounted control panel. You can now get all those ATEM Television Studio HD features built right into a professional control panel.

This model now has a new incredibly powerful Fairlight audio mixer that includes pro audio features such as 6 band parametric EQ, compressor, limiter, expander/noise gate, pan, audio channel split to dual mono, stereo simulator on analog and mic inputs, and an audio delay on analog inputs. Plus, you get a full CCU control area on the top of the control panel so you can control cameras for doing amazing multi-camera live work. This works with all Blackmagic Studio Camera and URSA Mini cameras that can be controlled via the SDI.

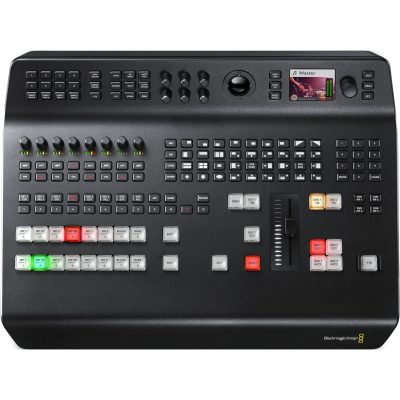

The control panel on this model is extremely high quality. It uses the same high-quality buttons that our highest-end switchers use, plus there are a lot more buttons for transition selection, keying, and more. It adds an integrated hardware control panel which is great for more complex, fast-paced live events. It features 4 HDMI and 4 SDI inputs so you can work in all formats up to 1080p60. It will be perfect for all kinds of work from a professional studio or live sports broadcasts to internet talk shows, concerts and seminars, and more.

Related Products

ATEM Production Studio 4K

ATEM Television Studio HD

Other Site

ATEM Television Studio Pro HD

M by Indhu 27 Feb23

Specifications

Our Score

Click to rate this post!

[Total: 4 Average: 5]

Connections
Total Video Inputs	8
Total Outputs	8
Total Aux Outputs	1
SDI Rates	270Mb, 1.5G, 3G.
Total Audio Inputs	2 x XLR.
Total Audio Outputs	None, embedded audio only.
SDI Video Input	4 x 10-bit SD/HD switchable. 2 channel embedded audio.

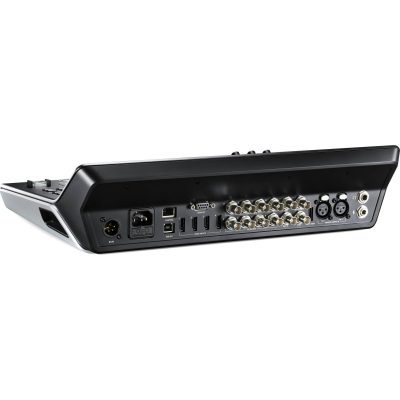

HDMI Video Inputs	4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio.
Reference Inputs	Tri-Sync or Black Burst.
Video Input Re-Sync	On all 8 inputs.
SDI Program Outputs	5 x 10-bit SD/HD switchable.
SDI Audio Outputs	2 Ch embedded into SDI output.
Multi View Monitoring	1
Multi View Video Standard	1 x HD-SDI and 1 x HDMI.
Standards
SD Video Standards	525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
HD Video Standards	720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94
SDI Compliance	SMPTE 259M, 292M and 424M.
Video Sampling	4:2:2 10-bit
Color Precision	4:2:2 10-bit
Color Space	4:2:2 YUV
HDMI Input Resolutions for Computers	720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.
Colorspace Conversion	Hardware based real time.
Processing Delay	6 Lines.
Audio Mixer	10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.
Product Specifics
Upstream Keyers	1
Downstream Keyers	2
Chroma Keyers	1
Linear/Luma Keyers	3
Talkback Support	Built in, uses aviation headset.
Mix Minus Support	Yes, on 4 camera PGM outputs.
Transition Keyer (Stinger/DVE)	DVE only.
Total Number of Layers	5
Pattern Generators	2
Color Generators	2
DVE with 3D Borders & Drop Shadow	1
Interface	Minimum monitor resolution of 1366 x 768.
Number of Windows	1 x 10
Routable Windows	8 routable and 2 fixed for Program and Preview.
Tally	Red for program and green for preview indication.
Tally Output	Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
Windows Source Labels	Yes.
Multi View Monitoring
Multi View Monitoring	1 x 10 Views.
Multi View Video Standard	HD
Media Player
Media Players	2, with non volatile flash memory.
Channels	Fill and key for each Media Player.
Media Pool Still Image Capacity	20 with fill and key.
Media Pool Still Image Format	PNG, TGA, BMP, GIF, JPEG and TIFF.
Control
Control Panel	Built in with camera control. Software panel included. Supports optional broadcast panel.
Control Panel Compatibility	Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.
Control Panel Included	ATEM Software Control Panel included free for Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra or later and Windows 8.1 64-bit or Windows 10 64-bit.
Software
Software Updates	Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration	Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Power Requirements
Power Supply	1 x Internal 110 – 240V AC. 4 pin 12V DC.
Power Usage	40W
Environmental Specifications
Operating Temperature:	5? C to 40? C
Storage Temperature:	-20? to 60? C (-4? to 140? F)
Relative Humidity:	0% to 90% non-condensing
What’s Included
What’s Included	ATEM Television Studio Pro HD SD card with software and manual
Warranty
Warranty	12 Months Limited Manufacturer’s Warranty.
