Blackmagic Camera Fiber Converter Extend up to 2 km

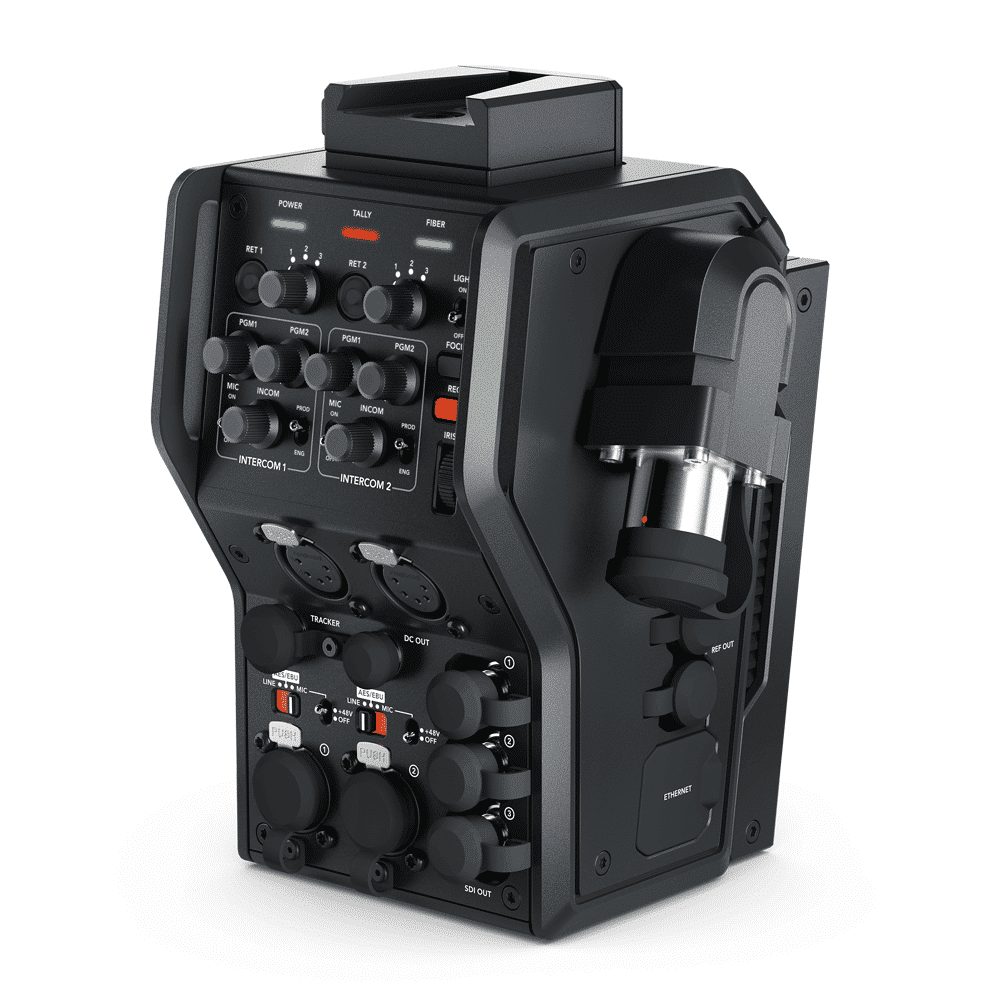

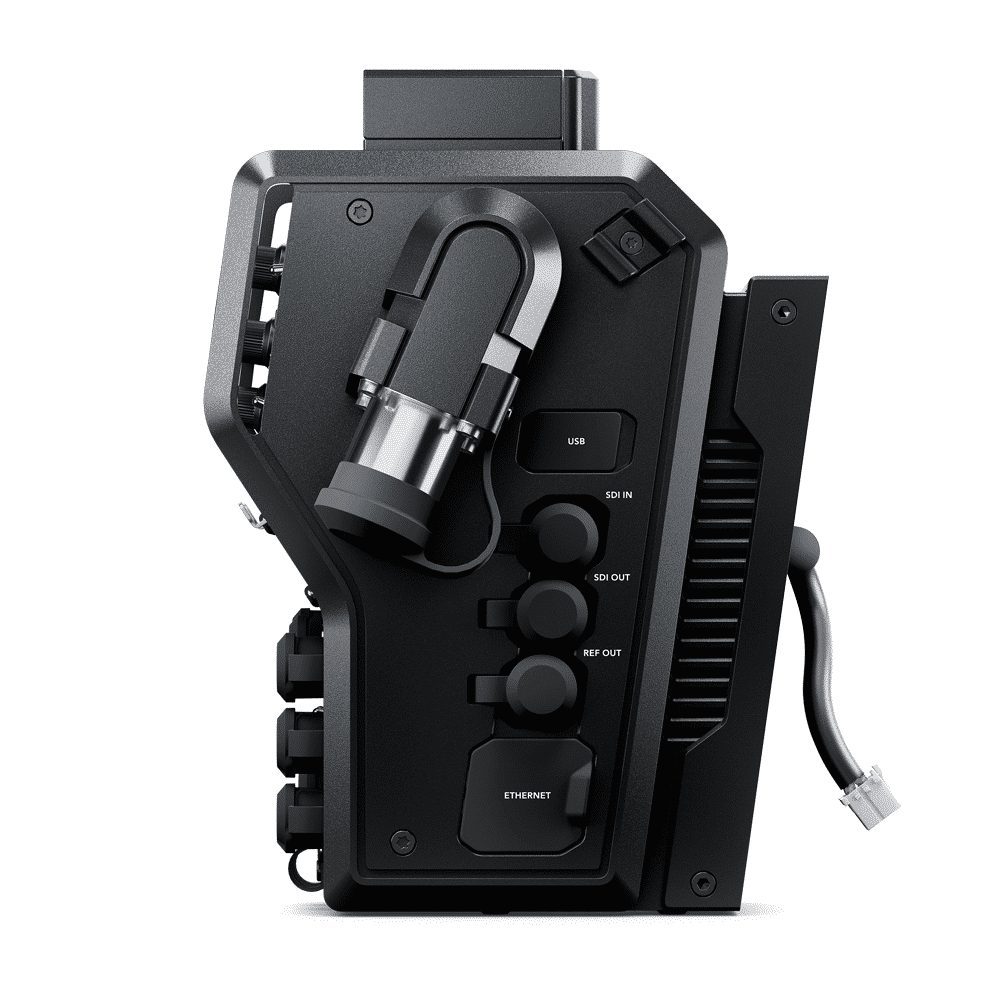

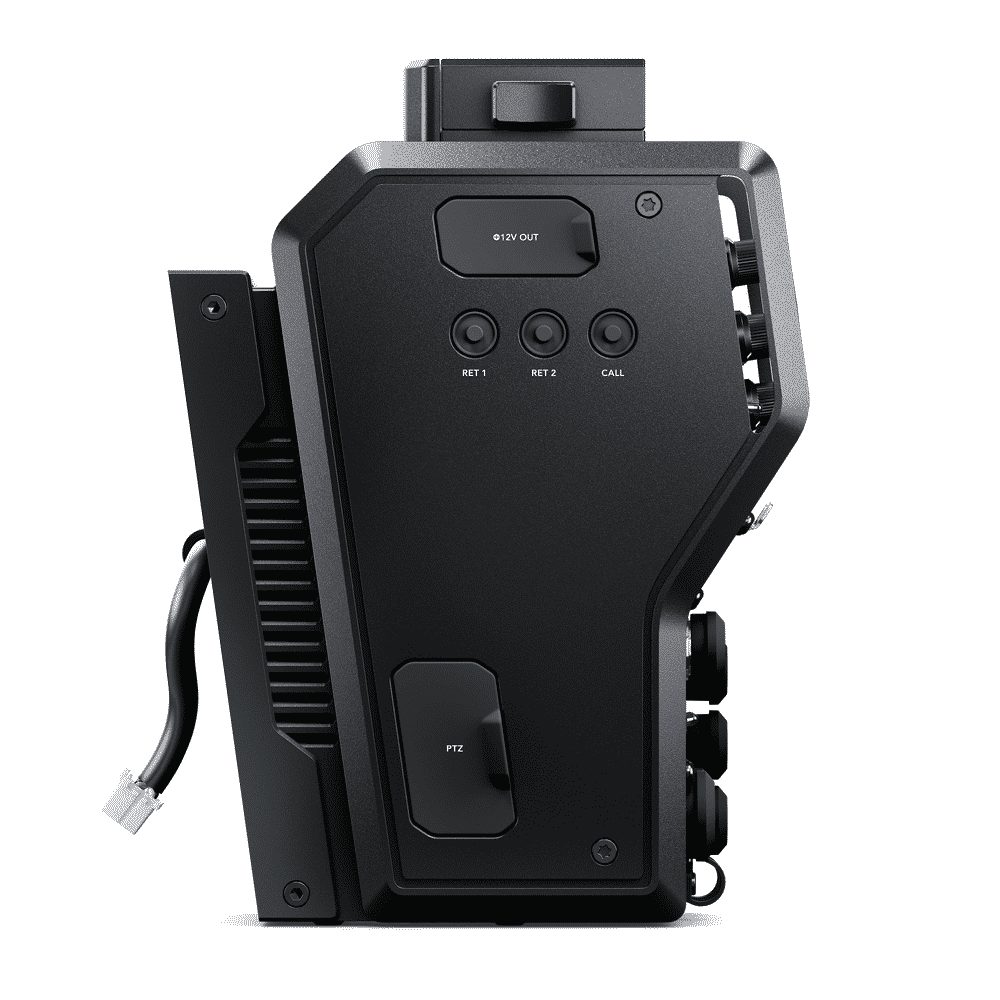

Blackmagic Camera Fiber Converter

Blackmagic Camera Fiber Converter Extend and fully power cameras up to 2 km away using an open standard SMPTE fiber cable, attaches to the back of your URSA Mini or URSA Broadcast camera.

In addition to converting all of the audio, video, camera control, and talkback into fiber, it also adds professional studio camera controls to the back of your camera. You get control for return feeds, dual intercom controls with the ability to mix in program audio, record, focus and iris controls, headset connectors, audio, and more.

The camera converter also includes a V-Lock mount plate on the top for attaching accessories such as a professional Blackmagic Studio Viewfinder.

The Blackmagic Camera Fiber Converter has connections for your Ultra HD camera feed, 3 HD return feeds, full remote camera control, PTZ, multiple channels of talkback, tally, and more.

Dual Channel Talkback Intercoms with Backup

The Blackmagic Fiber Converter and Blackmagic Studio Fiber Converter provide 2 dual channel digital talkback connections that are compatible with professional 5-pin XLR talkback headsets. The camera converter even has convenient controls for mixing in program return audio with your talkback headset so you can adjust the volume as needed while talking to the rest of the crew.

The talkback intercoms can be used for both production and engineering. In addition, there is a backup channel available for troubleshooting in case the fiber link is down. This backup talkback channel automatically switches over and uses the data pair in the SMPTE cable if the fiber is not working. It also includes a standard 10-pin connection for tracker talkback, which is perfect when both headset connections are in use and you need to feed an additional talkback connection through to your crane operator.

Designed for High-End Broadcast

Durable metal design, high-end components, and professional connections

The Blackmagic Fiber Converter features an extremely durable all-metal design that perfectly matches URSA Broadcast, URSA Mini cameras, or any camera that supports a standard battery plate.

It’s built to withstand the harsh demands of outdoor field production and 24/7 operation. It features full-size standard television industry connections with dust caps, along with an integrated VLock mount plate on top for adding a studio viewfinder.

The Blackmagic Studio Fiber Converter is designed so that you can fit two of them side by side in a standard equipment rack using the optional rack mount kit.

The optical fiber connector on the Blackmagic Studio Fiber Converter is conveniently located on the front panel, right next to the built-in 5-inch LCD, so you can plug remote cameras in and instantly see the feed!

10G Ethernet for IP Video Super fast, low latency ethernet link for video, audio, and control

The fiber Converter and the Blackmagic Studio Fiber Converter use IP video because the SMPTE fiber connection is an open standard 10G Ethernet link. That means all of your video and return feeds are IP video-based using high-end, lossless broadcast quality 10-bit video encoding and decoding.

All other connections such as talkback, tally, camera control, and lens control are also converted to low latency IP so you get incredibly reliable performance and high quality.

Using IP video means the fiber converters are future-proof and ready for customization using high-speed Ethernet infrastructure in the future.
