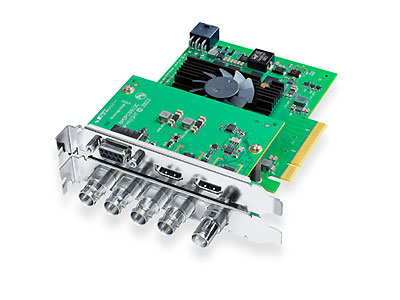

Blackmagic DeckLink 8K Pro G2 12G-SDI Ultimate Professional 8K PCIe Capture and Playback Card
Blackmagic DeckLink 8K Pro G2 includes four bi-directional 12G-SDI plus HDMI 2.1 connections to support all SD, HD, Ultra HD, 4K, and 8K standards, making it the ultimate professional 8K PCIe capture and playback card designed for feature film production. You can also use the free DeckLink SDK to configure up to 4 video streams in any direction, format, or frame rate up to 4K DCI 60p for true multi-channel capture and playback. DeckLink 8K Pro G2 supports 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color. In addition, you can work at up to 120 frames per second in HD and 4K, and up to 60 frames per second in 8K. The four 12G-SDI connections support up to 64 channels of embedded audio. DeckLink 8K Pro G2 is perfect for the next generation of high resolution, high frame rate, and high dynamic range workflows!
Perfect for Post Production Works with all file formats up to 8K DC
Work with any video format and resolution that you need! DeckLink cards let you capture from cameras, decks, and live feeds directly into editing, effects, and design software applications such as DaVinci Resolve. Depending on the model you choose, DeckLink cards support the complete range of formats used in today?s high-end film, television, and commercial post-production. You get 12-bit RGB support and 4:4:4 image quality for deep color and high dynamic range work, high frame rate support of up to 60 frames per second, stereoscopic 3D, and more! There are DeckLink models to support either file- or tape-based workflows for perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions, and even digital cinema projectors.
Highest Quality Connections
Every DeckLink card features high-quality connections, so you get pristine video and audio along with compatibility for working with the widest range of professional SDI equipment. DeckLink 8K Pro G2 includes Quad Link 12G-SDI, while other models feature single and dual link 6G and 12G?SDI, or single link 3G-SDI. In addition, some DeckLink cards include a professional analog component, S-video, and composite connections, along with 2 channels of AES/EBU and 4 channels of balanced analog audio in and out.
All models include Black Burst/Tri-sync reference and serial deck control. The 6G and 12G-SDI cards feature multi-rate connections that automatically detect and switch speeds for working with all SD, HD, and Ultra HD formats.
DeckLink 8K Pro G2 Compatible with Various Software Applications
- Mac: No other capture and playback cards are supported by more software applications for Mac. Get drivers that work with fantastic editing software such as DaVinci Resolve, Avid Media Composer, Final Cut Pro X, Premiere Pro, and News Cutter. For visual effects, get full compatibility with Fusion, Nuke, After Effects, and Photoshop. For audio, DeckLink cards work with Fairlight audio in DaVinci Resolve, ProTools, Nuendo, and Cubase. For streaming, you can use OBS, Wirecast, and Livestream Producer.
- Windows: Get access to a massive range of Windows software! DeckLink supports WDM, DirectShow, and QuickTime, so you can use applications such as DaVinci Resolve, Avid Media Composer and News Cutter, Premiere Pro, Sony Vegas Pro, and more. For visual effects, use Fusion, After Effects, and Photoshop. Audio software supported includes Nuendo, Cubase, and more. When streaming, you get compatibility with OBS, Xsplit Broadcaster, Wirecast, and Livestream Procaster.
- Linux: DeckLink cards are open standard capture cards and are perfect for the development of Linux-based video applications. They?re designed to work perfectly with DaVinci Resolve for editing, color correction, and professional audio. There?s also a free, well-documented SDK that makes it easy for you to develop specific solutions to meet your needs. Blackmagic?s Design Media Express is also available for capture and playback when using DeckLink with Linux operating systems.
To view more Products Blackmagic
Specifications
Click to rate this post!
[Total: 1 Average: 5]
Connections:
- SDI Video Inputs: 4 x bi-directional 12G‑SDI
Supports SD/HD/2K/4K/8K, single, dual link, and quad link 4:2:2/4:4:4. 2D/3D switchable. - SDI Video Outputs: 4 x bi-directional 12G‑SDI
Supports SD/HD/2K/4K/8K, single, dual link, and quad link 4:2:2/4:4:4. 2D/3D switchable. - SDI Audio Inputs: 16 Channels Embedded in SD/HD/2K.
64 channels embedded in 4K/8K. - SDI Audio Outputs: 16 Channels Embedded in SD/HD/2K.
64 channels embedded in 4K/8K. - HDMI Video Inputs: 1 x HDMI 2.1
- HDMI Video Outputs: 1 x HDMI 2.1
- HDMI Audio Inputs: 8 Channels embedded in TMDS.
32 Channels embedded in FRL. - HDMI Audio Outputs: 8 Channels embedded in TMDS.
32 Channels embedded in FRL. - Sync Input: Tri-Sync or Black Burst.
- Remote Control: 1 x RS‑422 Out
- Computer Interface: PCI Express 8-lane generation 3, compatible with 8 and 16-lane PCI Express slots.
- Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.
Software:
- Software Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility, and Blackmagic driver on Linux.
- Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
- Physical Installation: PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows, and Linux. Requires 2 PCI slots plus connection to the computer power supply. Please check the Support pages to see the full system requirements.
- Software Applications: DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Autodesk Flame, and Adobe Photoshop.
- Other supported applications include Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, Zoom.
These are third-party applications and support may vary, check with your software vendor.
SDI Video Standards:
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 - 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI - Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
- 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
- 8K DCI Video Standards: 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI
- 3D SDI Video Standards: 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120 - SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
- Audio Sampling: Television standard sample rate of 48 kHz at 24‑bit.
- SDI Video Sampling: 4:2:2, 4:4:4
- SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes.
- Color Space: REC 601, REC 709, REC 2020.
- HDR Support: HDR static metadata packing, HLG, and PQ transfer characteristics.
- Multiple Rate Support: SDI video connections are switchable between SD/HD/2K/4K and 8K.
HDMI 2.1 Video Standards:
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95, 1080p96, 1080p100, 1080p119, 1080p120
1080i50, 1080i59.94, 1080i60 - Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48 2160p50, 2160p59.94, 2160p60, 2160p95, 2160p96, 2160p100*, 2160p119*, 2160p120*
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95 DCI, 4Kp96 DCI, 4Kp100 DCI*, 4Kp119 DCI*, 4Kp120 DCI*
- 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50*, 4320p59.94*, 4320p60*
- 8K DCI Video Standards: 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI*, 8Kp59.94 DCI*, 8Kp60 DCI*
- HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
- HDMI Video Sampling: 4:2:2, 4:4:4 and 4:2:0*
- HDMI Color Precision: 8, 10 and 12-bit*
- *Supported video sampling and color precision are dependent on connected HDMI device capabilities, video resolution, and frame rate.
- HDMI Color Space: REC 601, REC 709, REC 2020.
- HDR Support: Dolby Vision (up to Ultra HD and 4K DCI 60p), HDR static metadata packing, HLG and PQ transfer characteristics.
- HDMI Configuration: HDMI 2.1 supports Deep Color and HDR. Automatically configures to connected display.
- Multiple Rate Support: HDMI video connections are switchable between SD/HD/UHD and 4K.
- Copy Protection: HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before the capture or distribution of content.
Processing:
- Colorspace Conversion: Hardware-based real-time output.
- 3D Processing: Left eye/right eye dual stream capture and playback (SDI only).
- Real-Time Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating Systems:
- Mac 13.0 Ventura,
- Mac 14.0 Sonoma or later.
- Windows 10, 64-bit.
- Windows 11.
Power Requirements:
- Power Consumption: 30 W
Environmental Specifications:
- Operating Temperature: 5° to 50° C (41° to 122° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non‑condensing
- Warranty: 3 Year Limited Manufacturer’s Warranty.
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- DeckLink 8K Pro G2
- HDMI 2.1 mezzanine card
- External power cable
- Spacers and screws
- Welcome wallet with QR code for software download
