Product Highlights:
- 4 independent mini 3G-SDI connections,
- low profile, multi-channel PCI Express capture and playback card
- Supports all SD and HD formats up to 1080p60
- Perfect for media play-out systems, multi-screen digital signage servers
| Weight | 1 kg |
|---|
Description
Click to rate this post!
[Total: 3 Average: 5]

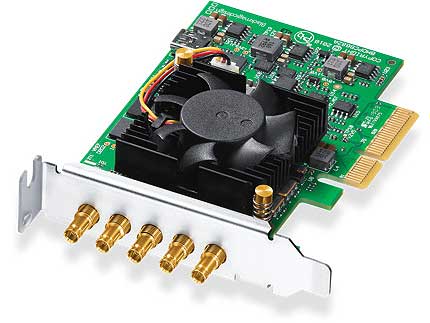

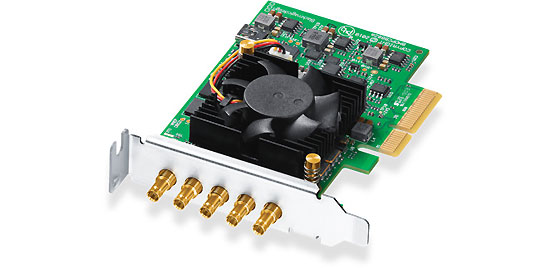

Blackmagic Decklink Duo 2 Mini Low profile PCIe capture and Playback Card
Blackmagic Decklink Duo 2 Mini Featuring 4 independent mini 3G-SDI connections, DeckLink Duo 2 Mini is a low profile, multi-channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60. You get the flexibility of 4 separate capture or playback cards in one. Plus, it?s completely customizable so it?s perfect for media play-out systems, multi-screen digital signage servers, real-time multi-channel capture systems, and more.
Key Features:
Support for Industry-Standard Formats
Equipped with compatibility for popular compressed video formats, the DeckLink Duo 2 Mini facilitates seamless integration into existing workflows. It supports ProRes, AVCHD, XDCAM, and DNxHD formats, offering flexibility for users who work across various systems. The ability to utilize these conventional formats leads to easily editable files compatible with leading software applications.
Compatibility with Major Operating Systems
The DeckLink Duo 2 Mini offers broad compatibility with systems running macOS, Windows, and Linux. This ensures that users can effectively incorporate the card into their preferred environments without issues. The included drivers and utility software on an SD card simplify setup and streamline the installation process.
Cross Conversion and Color Space Support
This capture and playback card includes advanced features such as hardware cross-conversion. Users can convert between 720p and 1080p during playback, enhancing versatility in media presentations. Moreover, the DeckLink Duo 2 Mini supports Rec. 601 and Rec. 709 color spaces, ensuring accurate color reproduction across HD and SD resolutions.
Downconversion and Upconversion Capabilities
The card’s ability to perform HD to SD downconversion and SD to HD upconversion ensures that users can work with various resolutions. This feature is particularly beneficial when adapting media for different display formats or broadcast standards.
Supported Software Applications
The DeckLink Duo 2 Mini is compatible with a wide array of professional software applications, making it a versatile choice for media professionals. Notable applications include:
- DaVinci Resolve
- Adobe Premiere Pro CC
- Avid Media Composer
- Final Cut Pro X
- Fusion
- Adobe After Effects CC
Additionally, it supports audio production software such as Avid Pro Tools and Steinberg Nuendo, making it a suitable choice for both video and audio workflows.
Other Supported Applications
The DeckLink Duo 2 Mini expands its functionality through support for many other applications, enhancing its overall utility. This includes:
- Grass Valley EDIUS
- Sony Catalyst Production Suite
- Adobe Flash Media Live Encoder
- Telestream Wirecast
- Resolume Arena
- CyberLink PowerDirector
The extensive list of supported software underscores the card’s adaptability and proficiency within various production environments.
To view more Blackmagic Products
Other Site:
Blackmagic Design Decklink Duo 2 Mini Capture and Playback card
Indhu-Content Added-7/Oct24
Specifications
Click to rate this post!
[Total: 3 Average: 5]
| Connections: | |
| SDI Video Inputs | 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. |
| SDI Video Outputs | 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. |
| SDI Audio Inputs | 16 channels embedded in SD and HD. |
| SDI Audio Outputs | 16 channels embedded in SD and HD. |
| Sync Input | Tri-Sync or Black Burst. |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, |
| DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, | |
| Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, | |
| Uncompressed 10-bit 4:2:2, Uncompressed 10?bit 4:4:4 | |
| Software: | |
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic |
| driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. | |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, |
| Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. | |
| Please check the Support pages to see the full system requirements. | |
| Video Standards: | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 | |
| 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 | |
| 1080i50, 1080i59.94, 1080i60 | |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Colour Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| 12-bit RGB 4:4:4 only supported in playback. | |
| SDI Video Sampling | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| 12-bit RGB 4:4:4 only supported in playback. | |
| Colour Space | REC 601, REC 709 |
| Processing: | |
| Colourspace Conversion | Hardware based real time. |
| HD Down Conversion | Built in, high quality software down converter on playback and capture. |
| Down converted SD selectable between letterbox and anamorphic 16:9 styles. | |
| HD Up Conversion | Built in, high quality software up converter from SD to 720HD or 1080HD on input. |
| Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom. | |
| Cross Conversion | Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback. |
| Real Time Effects | DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury |
| Playback Engine effects. Avid Media Composer internal effects. | |
| Physical: | |
| Length | 3.94in |
| Weight | 88g (3.09oz) |
| Operating Systems | Mac OS 10.13 High Sierra, Mac OS 10.14 Mojave or later |
| Windows 7, 8.1 and 10, all 64-bit | |
| Linux | |
| Power Requirements: | |
| Power Consumption | 10 Watts |
| EMC Certifications | FCC, CE and C-Tick |
| Environmental Specification: | |
| Operating Temperature | 5? to 40?C (32? to 104?F) |
| Storage Temperature | -20? to 45?C (-4? to 113?F) |
| Relative Humidity | 0% to 90% non-condensing |
