Blackmagic Micro Converter BiDirectional SDI/HDMI 12G
SGD 218.00 – SGD 233.00 excl. Tax excl. Tax
Blackmagic Micro Converter HDMI to SDI 12G
SGD 166.00 – SGD 176.00 excl. Tax excl. Tax
Product Highlights:
- Extremely small design for portable operation.
- Supports upgrading software via USB connection.
- Includes 3D LUT for monitoring on SDI to HDMI model.
- Includes support for HDR via SDI and HDMI.
- Supports 12G-SDI and HDMI timecode standards.
- Features 12G-SDI technology with built-in SDI re-clocking.
- Includes camera control features for Blackmagic ATEM switchers.
- Supports all video standards in NTSC, PAL, 720 HD, 1080 HD, and 2160 Ultra HD.
- Can be purchased with or without a power supply.
| Weight | N/A |
|---|---|
| Choose the Product Variant |
Micro Converter HDMI to SDI 12G ,Micro Converter HDMI to SDI 12G wPSU |
Description
Click to rate this post!
[Total: 5 Average: 4.8]

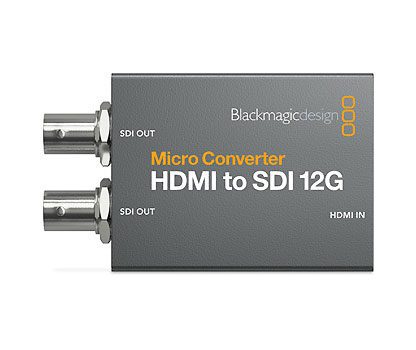

Blackmagic Micro Converter HDMI to SDI 12G with built-in SDI re‑clocking
The Blackmagic Micro Converter HDMI to SDI 12G is a compact, professional-grade device that converts HDMI signals to SDI. It supports resolutions up to 2160p60 and provides one HDMI input and one 12G-SDI output. This allows you to convert HDMI signals from cameras, computers, or other devices into SDI signals for use with professional video equipment such as switchers, routers, and monitors.
12G-SDI Output
The 12G-SDI output supports both SMPTE ST-2082 and ST-2081 standards, making it compatible with a wide range of professional video equipment that supports 12G-SDI. This allows for high-bandwidth, high-resolution video signals to be transmitted over a single SDI cable, eliminating the need for multiple cables and reducing clutter in your setup.
Powered by USB
The Micro Converter HDMI to SDI 12G is incredibly small and lightweight, making it easy to transport and set up on location. It is also powered via USB, meaning it can be powered from a computer or other USB power source, making it even more portable.
Built-in re-clocking
One of the key features of the Blackmagic Micro Converter HDMI to SDI 12G is its built-in re-clocking. This ensures that the SDI output signal is always locked to the HDMI input signal, even if the HDMI signal is unstable or has a low bitrate. This is essential for ensuring that the SDI output signal is always of the highest quality and is free from distortion or artifacts.
Auto video format detection
Another important feature of the Blackmagic Micro Converter HDMI to SDI 12G is its ability to automatically detect and switch between different video standards. This means that the converter can automatically detect whether the HDMI input signal is in 720p, 1080i, or 1080p format and switch the SDI output signal to match. This eliminates the need for manual adjustments and ensures that the output signal is always in the correct format.
Built in Audio embedder
The Blackmagic Micro Converter HDMI to SDI 12G also includes a built-in audio embedder, allowing you to embed audio into the SDI output signal. This is useful for applications such as live events or television broadcasts, where audio is an essential part of the production.
In addition, the Micro Converter HDMI to SDI 12G also includes a built-in down converter, allowing you to convert the SDI output signal to a lower resolution if needed. This is useful in situations where the SDI output signal needs to be sent to a display or monitor that supports a lower resolution.
Powerful Device
Overall, the Blackmagic Micro Converter HDMI to SDI 12G is a powerful and versatile device that is essential for any professional video production setup. Its compact size, built-in re-clocking, automatic detection of video standards, and built-in audio embedder make it a highly flexible and dependable tool for converting HDMI signals to SDI.
Whether you are working in live events, television studios, or post-production facilities, the Blackmagic Micro Converter HDMI to SDI 12G is a must-have tool for ensuring high-quality, reliable video signal conversion.
Compact in Size
The Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere. You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD, and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies. Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications and can be updated to new standards in the future.
Professional HDMI to 12G-SDI
Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment. You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full-size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, and 2160p rates, including 4Kp24/47.95/48 DCI. You can power it over USB from a laptop or a mobile phone charger.
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment. You get two 12G-SDI outputs for connecting to SD, HD, or Ultra HD equipment. When working in HD it supports 3G-SDI levels A and B. This model also supports film standards including 4Kp24, 4Kp47.95, and 4Kp48.
To view more Blackmagic Products
Another Website
Read Our Blog:
Blackmagic Broadcast Converters: Micro, Mini, and Teranex Mini Series Explained
M by Indhu 27 Feb23
Add-R-Ind-29.11.23
Add-H-SS-20Feb24
IM-AV-19Dec24
IM-AV-26Dec24
IM-UT-20Jan25
Specifications
Click to rate this post!
[Total: 5 Average: 4.8]
| Connections | |
| SDI Video Outputs | 2 Automatically matches the HDMI input. |
| HDMI 2.0 Video Outputs | 1 x type A. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| Multi Rate Support | Auto-detection of SD, HD, 2K, Ultra HD and 4K. |
| Updates, Configurations and Power | USB Type‑C. |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 |
| SDI Video Rates | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
| SDI Colour Precision | 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. |
| SDI Colour Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI. |
| HDMI Video Standards | 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
| HDMI Colour Precision | 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. |
| HDMI Colour Space | YUV |
| Copy Protection | HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capturing or distribution of content. |
| Settings Control | Via MacOS and Windows software utility connected by USB. |
| Operating Systems | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit. |
| Software | Internal software upgrade via USB. |
| Power Requirements | |
| Power Consumption | 4W max. |
| Operational Voltage Range | 4.4V to 5.25V DC |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3-Year Limited Manufacturer’s Warranty. |
In The Box
Click to rate this post!
[Total: 5 Average: 4.8]
- Micro Converter HDMI to SDI 12G
Delivery Info
Click to rate this post!
[Total: 5 Average: 4.8]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
Reviews (1)
1 review for Blackmagic Micro Converter HDMI to SDI 12G
Clear filtersOnly logged in customers who have purchased this product may leave a review.
You may also like…
SGD 812.00 excl. Tax
SGD 2,589.00 excl. Tax
SGD 1,097.00 excl. Tax
SGD 651.00 excl. Tax
SGD 218.00 – SGD 233.00 excl. Tax excl. Tax
SGD 90.00 – SGD 104.00 excl. Tax excl. Tax
Blackmagic Design Micro Converter SDI to HDMI 3G Includes 3D LUT for monitoring on SDI to HDMI model
SGD 81.00 – SGD 90.00 excl. Tax excl. Tax
Related products
SGD 2,678.35 excl. Tax
SGD 1,615.23 excl. Tax
Product Specialist –
The Blackmagic Micro Converter HDMI to SDI 12G is a true powerhouse in the realm of signal conversion. This compact device manages to pack a punch, effortlessly transforming HDMI signals into pristine SDI output suitable for professional video equipment.
The support for resolutions up to 2160p60 speaks volumes about its capabilities, catering to the demands of high-quality video production. With a single HDMI input and a 12G-SDI output, this converter becomes a bridge between various devices, from cameras to computers, and professional video equipment like switchers and monitors.
The adherence to SMPTE ST-2082 and ST-2081 standards for the 12G-SDI output opens the door to compatibility with a broad spectrum of professional video gear. This not only facilitates high-bandwidth transmission but also simplifies setups by using a single SDI cable, minimizing clutter.
Its compact and lightweight design is a boon for those on the move. Transporting and setting up becomes a breeze, and the USB-powered feature adds another layer of portability, drawing power from computers or USB sources.
The built-in re-clocking is a standout feature, ensuring a locked SDI output signal regardless of the stability or bitrate of the HDMI input. This dedication to signal integrity is crucial, guaranteeing a high-quality output free from distortions or artifacts.
Automatic detection and switching between different video standards demonstrate a commitment to user convenience. No more manual adjustments—let the converter seamlessly adapt to the HDMI input signal, ensuring the output is always in the correct format.
Audio is not neglected in this device’s repertoire. The built-in audio embedder allows for seamless integration of audio into the SDI output signal, perfect for live events or television broadcasts where sound is a vital component.
Adding to its versatility, the built-in down converter lets you adjust the SDI output signal to a lower resolution when needed. This flexibility proves invaluable, especially when interfacing with displays or monitors that support lower resolutions.
In summary, the Blackmagic Micro Converter HDMI to SDI 12G is an indispensable tool for any professional video production setup. Its combination of compact design, re-clocking prowess, automatic video standard detection, and audio embedding capabilities make it a reliable and flexible choice. Whether you’re navigating live events, television studios, or post-production facilities, this converter stands as a must-have, ensuring top-notch, dependable video signal conversion.
