Blackmagic Multiview 16 Monitor
Blackmagic Multiview 16 Monitor
Click to enlarge
Home » Shop » Projector and Display » Monitor and Display » MultiView » Blackmagic Multiview 16 Monitor up to 16 sources on a single screen
Blackmagic Teranex Mini – Quad SDI to 12G-SDI Converter
Blackmagic Teranex Mini - Quad SDI to 12G-SDI Converter USD 530.15 excl. Tax
Back to products
Blackmagic Mini Converter SDI to Analog
Blackmagic SDI to Analog Mini Converter USD 209.93 excl. Tax

Blackmagic Multiview 16 Monitor up to 16 sources on a single screen

USD 1,526.40 excl. Tax

Weight 2.6 kg
Blackmagic Design

Available on backorder

Add to wishlist
41 People watching this product now!
SKU: HDL-MULTIP6G/16 Category: MultiView
Share:
  • Description
  • Specifications
  • Delivery Info
  • Reviews (1)
Description

Blackmagic Multiview 16 Monitor

Blackmagic MultiView 16 is the world’s first multiviewer that operates natively in Ultra HD, which allows you to use an Ultra HD monitor or television for twice the image sharpness, even if you are not even using Ultra HD in your facility yet! Now you can connect up to 16 different SD, HD and Ultra HD SDI sources into one display for monitoring!

Blackmagic MultiView 16 allows 4, 9 or 16 views to be selected and each input includes a full frame re-synchronizer so you can have any combination of SD, HD and Ultra HD SDI sources connected, all at the same time!

Incredibly Sharp Monitoring

With the availability of Ultra HD consumer televisions, now it’s possible to use the extra resolution these displays have to build incredibly sharp multi view monitoring at low cost. Imagine having big screen televisions in your facility with high resolution monitoring of each view! That’s twice the resolution of a normal multi view!

Blackmagic MultiView 16 is incredibly flexible as it allows you to choose from 2×2 layout for 4 sources, 3×3 layout for 9 sources and 4×4 layout for 16 simultaneous sources, all from the front panel. Each of the inputs can be any combination of SD, HD and Ultra HD, all at the same time so it’s just like having 16 independent broadcast monitors on the single display!

Studio or Live Use!

Multi view monitoring is ideal whether you’re building a massive control room with lots of incoming feeds or are working on location in tight spaces that don’t have room for multiple monitors. Blackmagic MultiView 16 can be used for live production, on set, in control rooms, post facilities and more! With Blackmagic MultiView 16 you don’t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources!

Simply plug your cameras, decks, switchers, routers and feeds into the SDI connections and you can see everything with amazing clarity and detail on a single Ultra HD monitor!

Works with an Ultra HD monitor so you get twice the sharpness

MultiView 16 works with both regular HD as well as the latest Ultra HD displays, so you get maximum compatibility with your existing HD equipment but have the choice to use an Ultra HD monitor for incredible sharpness. That’s four times the number of pixels in each view so your video will look sharper and clearer than ever before possible. Using an Ultra HD monitor means you get an incredible 1920 x 1080 full resolution HD in each view when running 2×2 for 4 views.

Even if you’re running 4×4 for 16 views, each view will still display an amazing 960 x 540 pixels! You get both 6G-SDI and HDMI outputs so you can connect direct to televisions, video projectors and broadcast monitors.

Easy to use, interactive design for real time use!

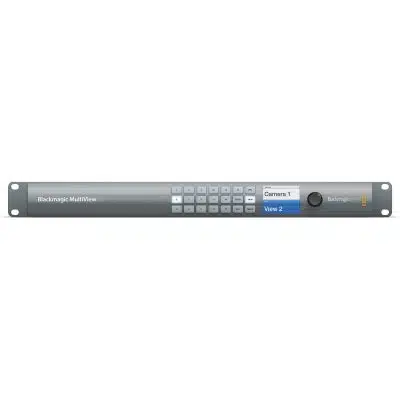

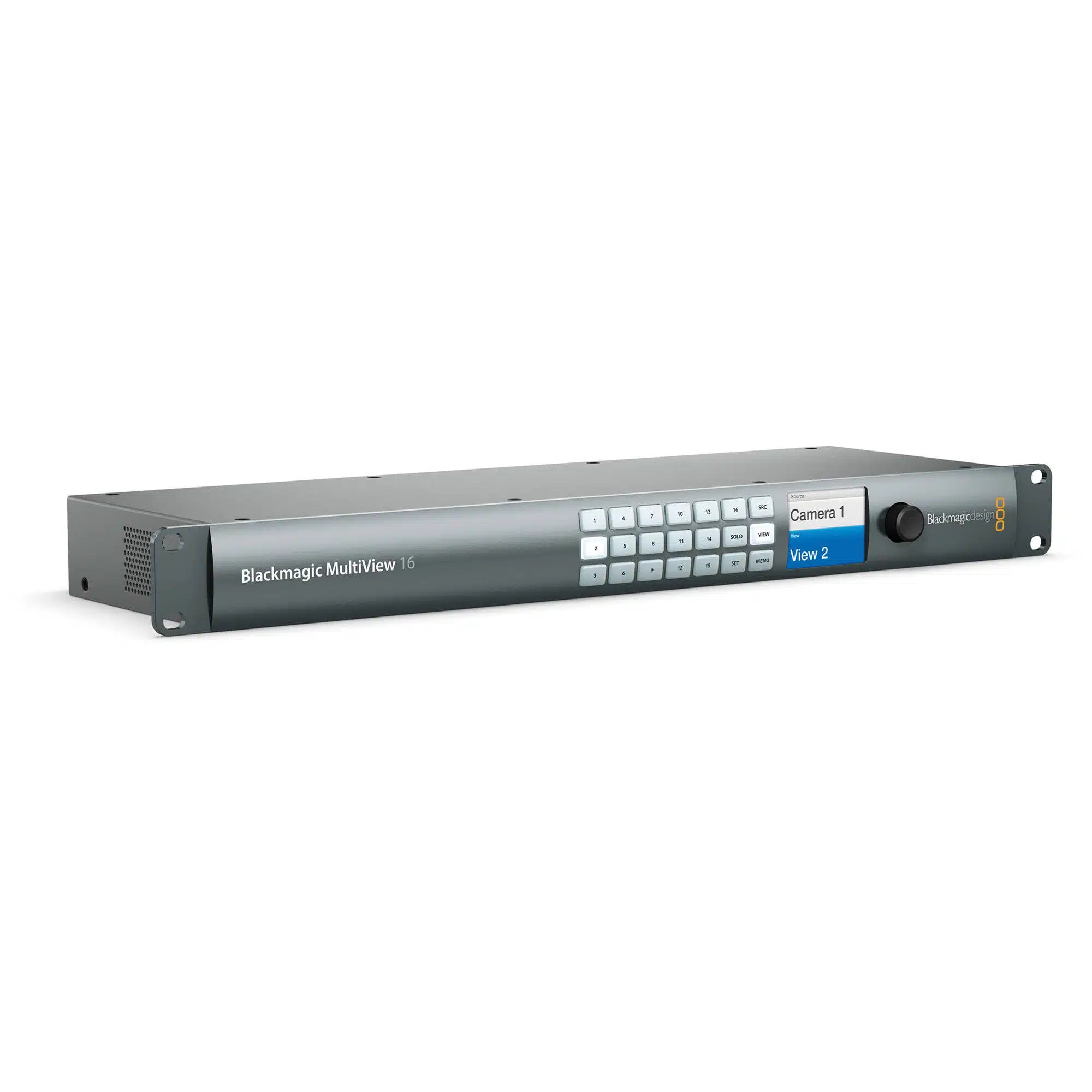

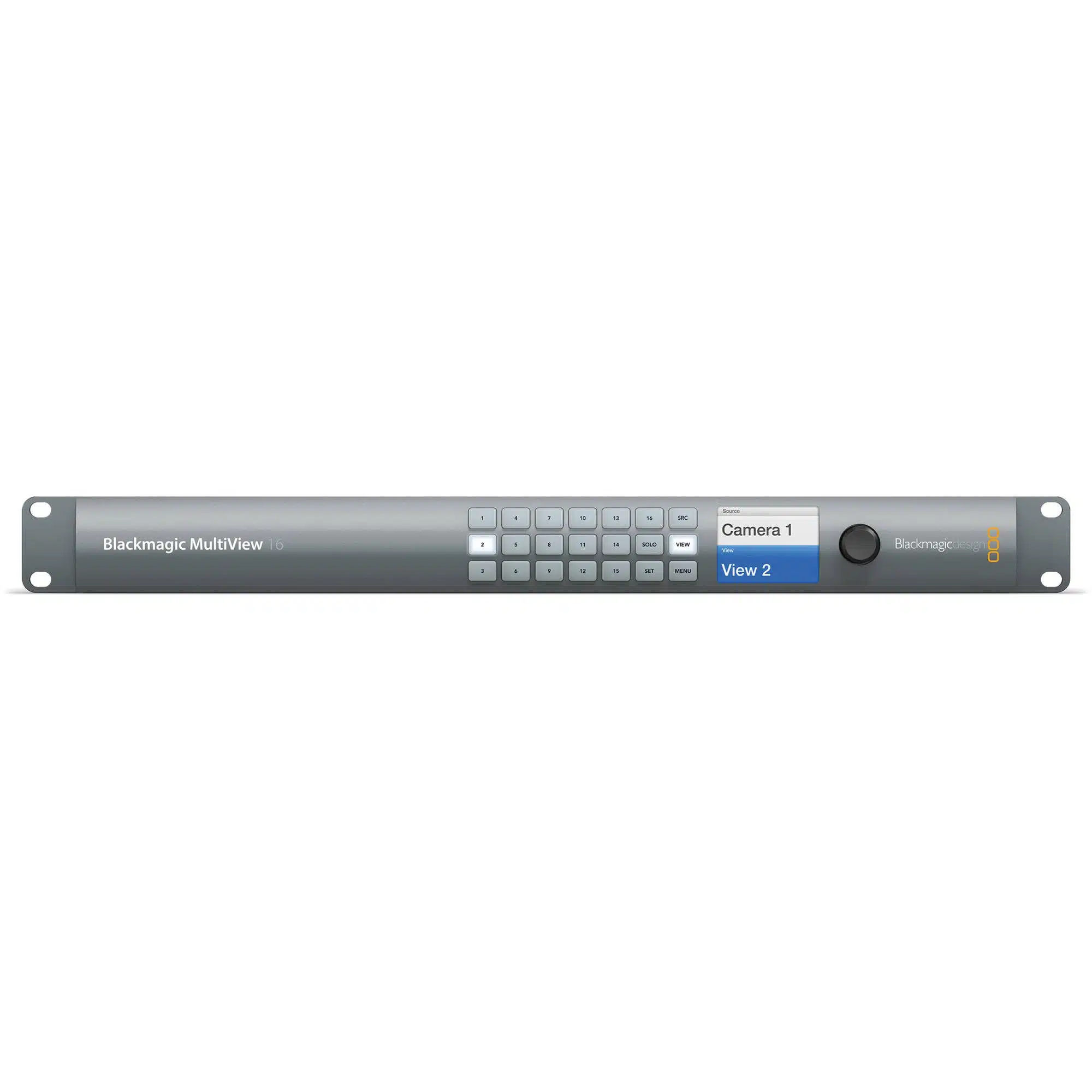

Featuring a compact, machined metal single rack unit design, MultiView 16 is incredibly easy to use because it has dedicated buttons on the front panel for quickly selecting any source into any of the views. Once selected, video can be routed to any position on the grid at the push of a button or you can simply use the spin knob control so it works just like a video router. Use the SOLO button for instant full screen monitoring of any source at any time!

MultiView 16 also features a built in multi voltage AC power supply and professional broadcast 6G-SDI input connections with loop through so it integrates easily into any facility.

6G-SDI Multi Rate SDI Connections

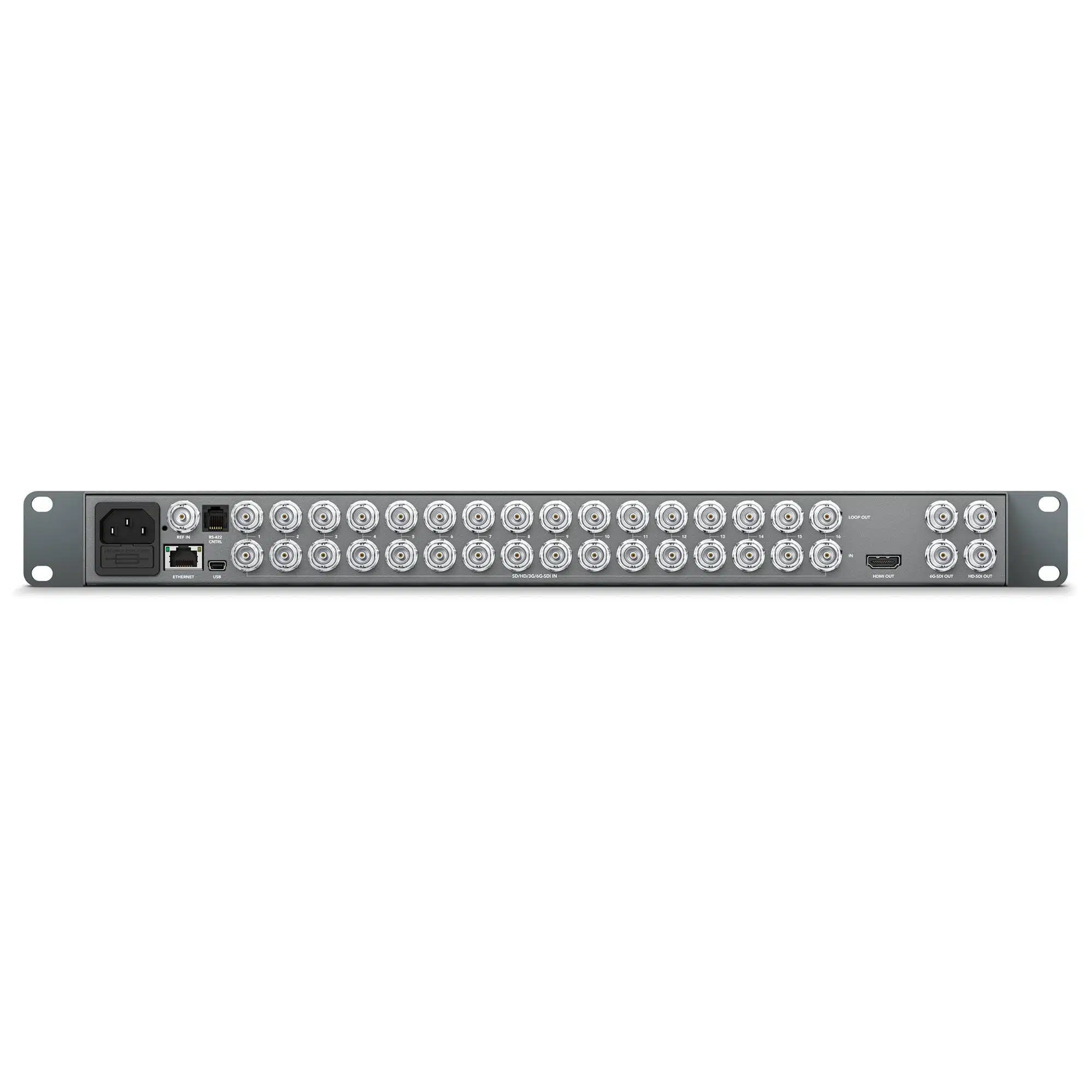

MultiView 16 includes sixteen multi rate 6G-SDI inputs with separate loop thru that are compatible with all of your existing SD, HD and Ultra HD equipment. It does not matter what video standard each input connection is running as each input view will act as an independent video monitor, so you can even have up to 16 different video standards connected all at the same time!

All inputs feature automatic re-sync so you can even mix and match non referenced SD, HD, and Ultra HD sources! The reference input is included if you want to connect the Blackmagic MultiView 16 to other studio equipment.

Supports Videohub router protocol for easy external control!

MultiView 16 includes Ethernet which emulates a Blackmagic Videohub router protocol so you get full compatibility with all of the external Videohub software and hardware control panels for routing any of the inputs onto any of the monitoring views. Blackmagic MultiView 16 can also be controlled via the included software utility on Mac or Windows computers so that you can quickly change settings remotely if access to the front panel is restricted! You can even add on screen labels and other settings remotely!

Specifications
Connections:
SDI Video Input
16 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Loop Output
16 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
Multi View Outputs
4 x SDI plus 1 x HDMI (2 x HD, 2 x 6G-SDI, 1 x HDMI), able to be used concurrently.
SDI Video Multi View Outputs
2 x 10-bit HD-SDI, 2 x 10 bit 6G-SDI.
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.
Reference Input
Black burst and Tri-level Sync for SD, HD and 4K.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.
Updates
USB or Ethernet.
Control
16 buttons for local control of MultiView 16. 5 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Configuration
Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
RS-422 Control
1 x input for configuring layouts.
Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
Standards:
SD Format Support
625/25 PAL, 525/29.97 NTSC.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2K Format Support
2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25.
4K Format Support
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Extras:
Displays
Built-in 1.5″ LCD for menu settings.
Software Control
Multi view software included free for Windows™ and Mac OS X™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
Power Fail Protection
MultiView 16 settings preserved and restored instantly at power on.
Power Supply
IEC power cable required. 2x 90 -240V AC input
Product Warranty
3 Year Limited Manufacturer’s Warranty.
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Dimensions
19 in x 6.03 in x 1.75 in
Weight
4.62lbs
What’s Included
Blackmagic MultiView 16
Software CD
Delivery Info

How to shop TAX free in Singapore

8% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme


All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.

Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.

Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.

Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.

Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.

If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)

Reviews (1)

1 review for Blackmagic Multiview 16 Monitor up to 16 sources on a single screen

  1. Felix – February 25, 2021

    This takes on all signals i’ve throwen at it so far, Looks great using HDMI to SDI converters. Not sure why other reviewer was saying it looked soft. Picture was nice a sharp, all signals i’ve used were from Nvidia graphic cards.
