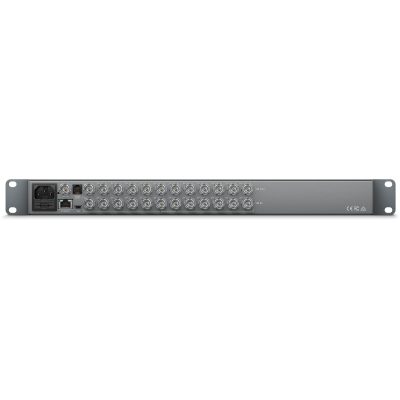

Connections
|
SDI Video Input
|
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
|
SDI Video Output
|
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
|
Reference Input
|
Black burst and Tri-Sync for SD, HD and 4K.
|
Multi Rate Support
|
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
|
Updates
|
USB or Ethernet.
|

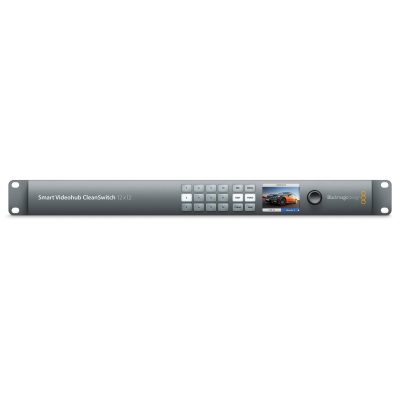

Front Panel Router Control
|
12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
|
Router Configuration
|
Via front panel LCD or RJ45 Ethernet.
|
RS-422 Router Control
|
1 x input for controlling router crosspoint switching.
|
Reclocking
|
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
|
Standards
|
SD Format Support
|
625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
|
HD Format Support
|
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
|
2K Format Support
|
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25
|
4K Format Support
|
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30
|
SDI Compliance
|
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, SMPTE 425M Level A, ITU-R BT.656 and ITU-R BT.601.
|
SDI Video rates
|
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
|
SDI Video Sampling
|
4:2:2 and 4:4:4
|
SDI Audio Sampling
|
Television standard sample rate of 48kHz and 24 bit.
|
SDI Color Precision
|
4:2:2 and 4:4:4 10 bit.
|
SDI Color Space
|
YUV or RGB.
|
SDI Auto Switching
|
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
|
SDI Metadata Support
|
Video payload identification ancillary data as per SMPTE 352M.
|
Software
|
Software Control
|
Router control included free for Windowsâ„¢ and Mac OS Xâ„¢.
|
Internal Software Upgrade
|
Via included updater application.
|
Display
|
Displays
|
Built-in LCD for video and menu settings.
|
Physical Installation
|
1 rack unit size. Less than 6 inches deep.
|
Power Requirements
|
Power Fail Protection
|
Router connections preserved and restored instantly at power on.
|
Power Supply
|
IEC power cable required. 90 – 240V AC input.
|
Environmental Specifications
|
Operating Temperature:
|
0° to 40° C (32° to 104° F)
|
Storage Temperature:
|
-20° to 45° C (-4° to 113° F)
|
Relative Humidity:
|
0% to 90% non-condensing
|
What’s Included
|

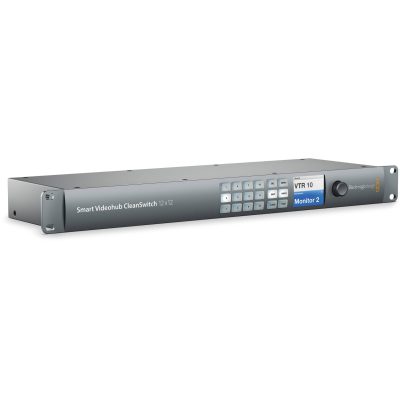

Smart Videohub CleanSwitch 12×12
Software SD card
|
Warranty
|
12 Month Limited Manufacturer’s Warranty.
|
