Blackmagic SmartView 4K G3 Ultra HD Broadcast Monitor

Blackmagic SmartView 4K G3: World’s First Ultra HD Professional Broadcast Monitor

Blackmagic SmartView 4K G3 is the first Ultra HD broadcast monitor with both 12G-SDI and SMPTE-2110 IP video inputs. SmartView 4K G3 connects directly to IP-based broadcast systems as well as a range of 12G-SDI professional video equipment up to 2160p60, making it perfect for broadcast and live production. It includes AC and 12V DC power connections, 3D LUTs, and monitoring controls such as focus peaking, H/V delay, blue only, and framing guides.

The Perfect Video Monitoring Solution

• Broadcast: SmartView 4K is ideal for broadcast as it supports both 12G-SDI and 2110 IP up to 2160p60. Switch between SDI and IP at the push of a button. SmartView 4K follows the video input so will switch between all SD, HD, or Ultra HD standards automatically.
• Live Production: For live production, it’s vital to get a solution with features to accurately monitor cameras. Powerful camera features include focus peaking, zoom, aspect ratio markers, and tally. Plus, the 4K display lets you see incredibly fine camera image detail.
• Fly Away Kits: Flyaway kits need to be portable and tough. SmartView 4K is lightweight aluminum, so it’s light; it’s only a few inches deep, so it allows great rack ventilation via natural convection. Plus, it has lots of cameras and technical monitoring features.

Bright High-Resolution Display

The LCD used on SmartView 4K features an extremely high resolution, so it will display every pixel in an Ultra HD image. That means you get an incredibly clean image with deep color fidelity. To avoid messy fingerprints on the LCD screen, SmartView 4K has a row of buttons along the bottom of the screen so you can adjust all the monitor controls without touching the screen. SmartView 4K is designed for broadcast, so it will instantly lock to a new video source, which is very common when the monitor is connected to a router and the input can change constantly to different timed sources. Unlike TVs, the video is not over-scanned, so you get all image pixels right to the edge of the LCD.

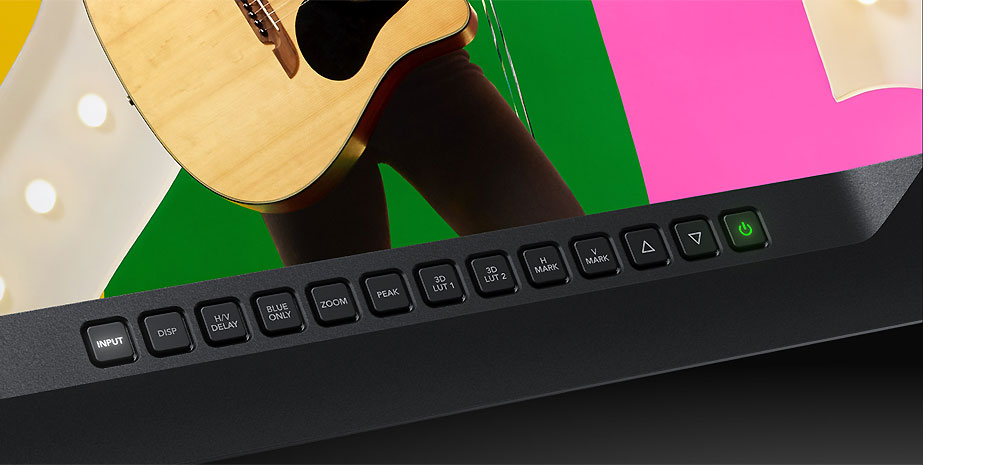

Front Panel Buttons for Monitor Control

The SmartView 4K front panel includes a wide range of monitoring controls. The input button selects between the two 12G-SDI video inputs and the 2110 IP video input. The display button allows you to adjust display brightness. The H/V display is a traditional broadcast monitor function that lets you look into the image blank. Blue only is great for checking hue from SD archive content. The zoom button lets you zoom the image in to adjust camera focus. Peaking highlights sharp image detail and is also perfect for adjusting camera focus. The 3D LUT buttons let you enable and switch between 3D LUTs. The H and V marker buttons let you display and adjust up to 4 on-screen markers.

Includes Frame Guides and Focus Peaking

When you’re working with cameras, SmartView 4K has everything you need to assist in framing and focus with its on-screen graphic overlays. Overlays include safe areas and safe title markers. Plus, there are 4 separate frame guides, 2 vertical and 2 horizontal, which can be displayed simultaneously and are perfect for social media and feature film framing. The markers are all individually adjustable so you can create any aspect ratio you like. You also get on-screen focus peaking, which can be turned on and off with a dedicated front panel button. Focus peaking is perfect when using SmartView 4K for remote camera monitoring, as you can ensure your remote camera has perfect focus at all times.

Get Color Accurate Monitoring with 3D LUTs

Broadcasters and feature film productions often work with SDI sources that are encoded with log film gamma or an HDR profile. This means the images can look washed out or have incorrect colors. SmartView 4K solves this problem because it includes support for 3D LUTs. This means you can use a 3D LUT to re-map the SDI or 2110 input colorspace to the SmartView 4K screen. Plus, you could also use 3D LUTs for exciting creative looks. 3D LUTs are easy to use and are uploaded using the SmartView utility. You can also export DaVinci Resolve color grades as custom 3D LUTs. Because DaVinci Resolve can be downloaded for free, it costs absolutely nothing to start creating a library of exciting 3D LUTs.

Connect Directly to SMPTE 2110 IP Networks

Now you can build modern IP video systems because SmartView 4K fully conforms to the SMPTE-2110 standard for IP video with both optical fiber and copper 10G Ethernet connections. SMPTE‑2110 specifies the transport, synchronization, and description of video, audio, and ancillary data over IP networks for broadcast. This includes support for SMPTE‑2110-20 uncompressed video, the Blackmagic IP codec for high frame rate Ultra HD, as well as SMPTE‑2110-21 traffic shaping and timing, SMPTE‑2110-30 audio and SMPTE‑2110-40 support for ancillary data. Plus, the selected video input can be sent out via the 10G Ethernet SMPTE‑2110 IP connection with full support for multicasting out to multiple destinations.

Includes NMOS Protocol for Virtual Routing

SmartView 4K supports the NMOS interface specifications so all your 2110 IP video devices can operate together as a large virtual router. Plus Videohub Smart Control can route sources to destinations on 2110 IP networks because it can act as an NMOS controller. The NMOS interface specification describes how SMPTE 2110 devices are discovered and controlled on IP networks. SmartView 4K supports IS-04 for discovery and registration of IP video devices and IS-05 for connection management between IP video devices. This means you can make connections between sources and destinations just like a traditional SDI router.

Built-in Tally Border for On Air Status

When you’re working with live production, SmartView 4K supports the Blackmagic SDI Tally Protocol and illuminates a colored border around the image, in red for on-air or green for preview. This SDI tally standard is used on all ATEM live production switchers, so you can simply connect the monitor to the switcher SDI outputs to get the image and the tally with a single BNC cable. This means that a director can cut between cameras and the tally information will be sent back to the SmartView 4K via the SDI video feed. This eliminates complex cabling, and the Blackmagic SDI Tally Protocol helps you set up for jobs much faster.

Remote Control Software for Mac and Windows

When you need to change settings or update the software on your SmartView 4K, then you can simply download and run the SmartView Utility software, which is available free of charge on the Blackmagic Design support site. This software is available for both Mac and Windows computers, and it connects via the USB connection or Ethernet when you have the SmartView 4K Ethernet connected. You can use the utility to change the monitor’s custom name for identifying monitors in larger systems. You can also select between 3G-SDI level A and level B formatting. To protect against unauthorized network access, Ethernet is disabled by default but can be enabled when connecting via USB.

Flexible and Redundant Power

The all-in-one design of SmartView 4K includes a built-in power supply, so you don’t have to carry around an external power brick. Simply plug it into any AC mains outlet and start live production. The international power supply automatically works from 100 to 240V AC, so you can use it anywhere in the world. Plus, for safety, SmartView 4K includes both AC and 12V DC power connections. The mini converter-style 12V DC power connection is perfect for backup power or for running on batteries. Running on batteries means you can use it in extremely remote locations. Plus, if the internal power supply should ever malfunction, then you can connect a DC power supply to keep running.
