Blackmagic Videohub 120×120 12G Zero Latency Video Router

Blackmagic Videohub 120×120 12G

Blackmagic Videohub 120×120 12G is an advanced zero-latency video router that supports any combination of SD, HD, and Ultra HD on the router at the same time. The 12G-SDI inputs feature LEDs on each BNC that indicate an SDI signal, plus there are 12G-SDI outputs, redundant power, and reference connections in a four-rack unit design. The large HD LCD lets you see video before routing and displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking and external Ethernet control and supports all SDI video standards up to 2160p60.

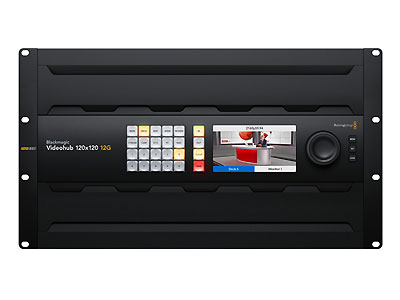

Elegantly Designed Front Panel for the Videohub 120×120 12G Router

The Blackmagic Videohub 120×120 12G built-in front control panel lets you route video, so you get the perfect solution for live production racks that don’t have the space for extra hardware panels. The front panel is similar to a Videohub Master Control Pro, and it features a spin knob for browsing, direct entry buttons for speed, and an LCD for displaying labels. However, because the panel is built into the router, you can also see live video on the LCD! The LCD also has menus, so it lets you change router settings.

Change Router Crosspoints Visually

With a built-in LCD, Blackmagic Videohub 12G can show you live video of all your router inputs! This means you can see all router inputs as live video before you change a route. There are also labels displayed below the live video to make it easy to identify the input you are viewing. What this means is you can scroll up and down the router sources in alphabetical order and see each input as live video, even if the inputs are different video standards. Imagine scrolling through your connections while viewing them as live video on the LCD. Plus, in portable equipment racks where space is limited, visual routing means you can see video inputs without adding an external SDI monitor.

Advanced 12G-SDI for SD, HD, and Ultra HD Routing

In the Blackmagic Videohub 120×120 12G model, you could route up to 120 different video signals to 120 outputs at the same time. 12G-SDI gives you a high frame rate Ultra HD via a single BNC connection that also plugs into all of your regular HD equipment! With 12G-SDI, you get future-proof technology that connects to the equipment you have now and in the future!

Videohub 120×120 12G Router Includes Full SDI Re‑Clocking

Videohub includes built-in SDI re-clocking on every 12G-SDI input. SDI re-clocking regenerates the video signal for maximum video quality. This is extremely important because longer video cables degrade the signal. Expensive premium “digital” cables can help a little, but still cannot eliminate signal integrity loss due to cable lengths getting longer. With SDI re-clocking, all of the SDI devices in your studio receive a regenerated signal with improved jitter performance. That means longer cable lengths and no dropouts in your video.

Add External Hardware Control Panels

All Blackmagic Videohub routers can be remotely controlled, which is vital in large broadcast studios where the equipment connected to the router is located in different areas of the building. There are 2 different types of hardware panels available. The Videohub Master Control Pro is similar to the front panel and has a spin knob, LCD, and shortcut buttons. The Videohub Smart Control Pro model features all buttons and is generally programmed so the panel controls a single router output with each button programmed to a router input. Then you can just cut along the panel buttons to change the router output instantly. It works best when you install a smart panel below each video monitor.

Includes Videohub Setup Utility

When you first purchase Blackmagic Videohub 12G, all the video inputs and outputs will have simple default labels; however, you can customize them to match the equipment you have connected! That’s why the Blackmagic Videohub 12G installer includes Videohub Setup software, which lets you customize the router input and output labels. You can even enable the take button to be used when changing sources, plus the take button can be enabled for each specific video output. The Videohub Setup also lets you program the buttons on the front panel, update the router software, or configure external hardware panels. The software supports Mac and Windows and can be connected via Ethernet or USB.

Customize Router Control with the Developer SDK

Videohub includes a free software development kit so developers and system integrators can easily add protocol support for integration into broadcast automation systems. Plus, all Videohub routers use a simple text-based protocol that’s easy to learn. This makes it very simple to create custom control solutions from all computer platforms and even embedded hardware such as Raspberry Pi and Arduino. The protocol can even be used with a Telnet app so you can experiment with controlling the router before you start coding. Plus, the protocol is the same one used for the Videohub Software Control, so it’s well-tested and includes all the features needed for complex control apps.

Localized for 13 Popular Languages

Blackmagic Videohub 12G supports multiple languages, so you can customize it to the language you prefer. You get support in English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish, and Ukrainian. Simply go into the setup menu to set the language, or you can change at any time in the future. Once a language is selected, the menus and the display on the LCD will change to the selected language. However, independent of the language you set, the input and output labels are always Unicode, so you can customize the labels to a mix of multiple languages! Multiple languages mean you can work anywhere in the world and with any local crew.

Videohub Features

Better Image Quality Supports Multiple Formats

When you need to work on global events, then you need to stay updated with the latest technology and television standards. Videohub gives you support for all 525SD and 625SD, 720HD and 1080HD, and the Ultra HD video standards. Plus, you can connect multiple video standards simultaneously.

Embedded Audio for Audio and Video

The SDI standard includes up to 32 channels of embedded audio included with the SDI video signal. The advantage of embedded audio is that it all connects with a single BNC cable and all audio remains perfectly synchronized to the video. Plus, all modern SDI equipment supports embedded SDI audio.

Deeper Bit Depth and Color Precision

Videohub is designed to support the highest quality video. 10-bit is the most commonly used standard, as colors can be represented more accurately than 8-bit video. You can route 4:2:2 8-bit or 10-bit video in any standard, and it even works with 4:4:4 12-bit SDI up to 2160p30 for feature film.
