Blackmagic Videohub 20×20 12G-SDI Video Router
SGD 3,111.00 excl. Tax
Product Highlights:
- Zero latency 12G-SDI supports SD, HD, and Ultra HD up to 2160p60.
- Built-in control panel with direct entry buttons and spin knob control.
- LCD monitor with live video and labels for visual routing.
- SDI re-clocking on all 12G-SDI inputs.
- Works with Videohub Master Control Pro and Videohub Smart Control Pro control panels.
- Supports Videohub Software Control for Mac, Windows, and iPad.
- Includes free SDK for integration into broadcast automation systems.
- Ethernet for remote control from external hardware or software control panels.
- Localized for 13 popular languages.
| Weight | 6 kg |
|---|
Description
Click to rate this post!
[Total: 3 Average: 5]

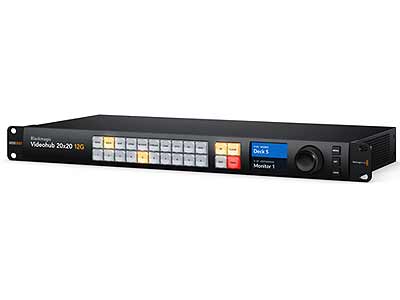

Blackmagic Videohub 20×20 12G-SDI Zero Latency Video Router
Blackmagic Videohub 20×20 12G is an advanced zero latency video router that supports any combination of SD, HD, and Ultra HD on the router at the same time. It has 20 12G-SDI inputs and 20 12G-SDI outputs, plus reference connections, in one-rack unit size. The front panel LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, and external Ethernet control, and supports all SDI video standards up to 2160p60.
Change Router Crosspoints Visually
With a built-in LCD, Blackmagic Videohub 12G can show you live video of all your router inputs. This means you can see all router inputs as a live video before you change a route. There are also labels displayed below the live video to make it easy to identify the input you are viewing.
Advanced 12G-SDI for SD, HD, and Ultra HD Routing
All models of Blackmagic Videohub 12G feature advanced 12G-SDI connections which are multi rate so they support any SD, HD, and Ultra HD video format up to 2160p60 and will connect to any SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI equipment. Plus, Blackmagic Videohub 12G also supports routing any video standard on the same router at the same time.
To view more Blackmagic products
View more Routing and Distribution Products
Read Our Blog:
Blackmagic Videohub 12G for Professional and Broadcast Video Distribution
Specifications
Click to rate this post!
[Total: 3 Average: 5]
| Connections | |
| SDI Video Inputs | 20 |
| SDI Video Outputs | 20 |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. |
| Video Input Re-Sync | None |
| SDI Reclocking | On all SDI outputs. |
| Reference Inputs | Tri-Sync or Black Burst. |
| Reference Outputs | Reference terminating loop output. |
| Ethernet | Supports 10/100/1000 BASE‑T. |
| Computer Interface | USB‑C |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24-bit. |
| SDI Video Sampling | YUV 4:2:2 and RGB 4:4:4 |
| SDI Color Precision | 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. |
| SDI Color Space | REC 601, REC 709, REC 2020 |
| SDI Auto Switching | Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard. |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M. |
| Control | |
| Built-in Control Panel | 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display. |
| External Control Panel | Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. |
| Control Panel Connection | Ethernet |
| Software | |
| Software Control | Router control is included free for Windows and Mac |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | Mac 12.0 Monterey, |
| Mac 13.0 Ventura or later. | |
| Windows 10, 64-bit. | |
| Windows 11 | |
| Display | |
| Displays | Built in 2.2 inch LCD for video and menu settings. |
| Power Requirements | |
| Power Supply | 1 x Internal 100 – 240V AC 50/60Hz. IEC power cable required. |
| Power Fail Protection | Crosspoint connections preserved and restored instantly at power on. |
| Power Usage | 27.5 W max. |
| Physical Installation | 1 rack unit height. |
| Physical Specifications | 482mm x 236.14mm x 44.2mm |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3-Year Limited Manufacturer’s Warranty, and 12 Month Warranty on the front panel. |
In The Box
Click to rate this post!
[Total: 3 Average: 5]
- Blackmagic Videohub 20×20 12G
- Welcome wallet with QR code for software download
