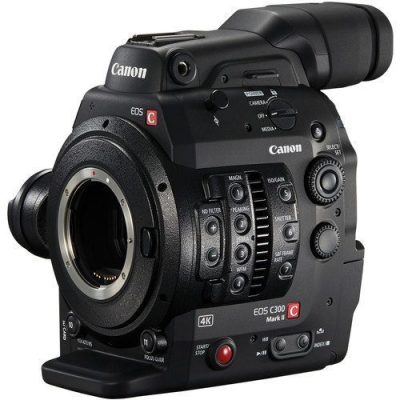

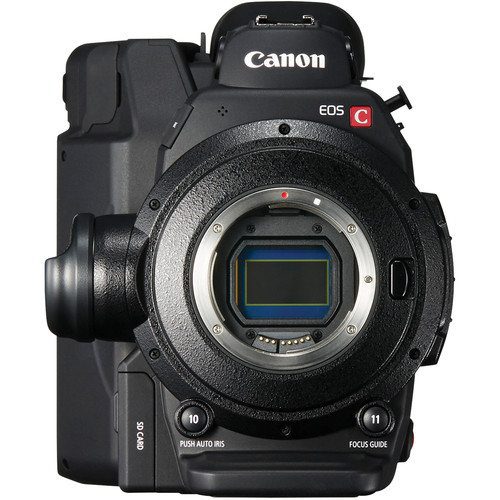

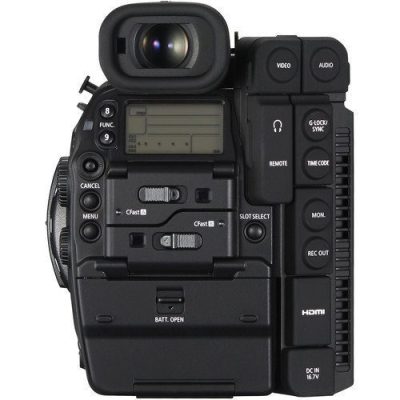

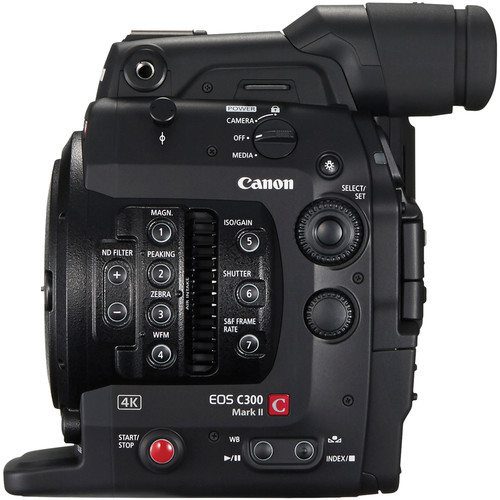

Canon EOS C300 Mark II Super 35mm CMOS sensor 4K / UHD 2K / FHD Camcorder

The Canon EOS C300 Mark II delivers high image quality and a wide dynamic range in a compact and ergonomically designed body that has improved operability, ruggedness and options for expansion. Its in-built advance focusing functions that assist professionals for manual focusing stems from the next evolutionary step in DAF engineering

Newly developed 4K (DCI/QFHD) 8.85-megapixel sensor and Wider Dynamic Range of 15 Stops
Canon has developed a new sensor that supports 4K (DCI) recording with a maximum 4096 x 2160 resolution, producing footages with high image quality. Also, 2K/HD recording (Over Sampling HD processing) that utilizes the information yielded from the 4K sensor to the full more than satisfactorily supports multi-purpose production needs.

When users have selected the Canon Log 2 gamma, the dynamic range changes from 200% to 1600% when ISO 100 to ISO 800 is selected, and a wide dynamic range of 1600% is achieved for ISO800 at the base sensitivity and higher. This enables the details of the highlights and shadows to be adjusted, and it extends the scope of color grading.

Engineering advancement in focus functions
AF speed tuning has now been implemented. The focusing area has been expanded to approximately 80% (vertically) x 80% (horizontally) of the image display on the screen. The focusing area can also be moved using the 4-direction key for AF shooting using the framework of the user’s choice.

This truly innovative UI applies the phase difference AF technology of Dual Pixel CMOS AF to deliver information that includes even the pre-focus and post-focus states of the focusing position, greatly improves user friendliness and efficiency in operation. This removes some of the obstacles to focusing in 4K shooting which demands extreme focusing accuracy.

Pursuing further excellence in operability, expand ability?and ruggedness
The new handle bracket has multiple threaded holes that are the same size as those on the accessories provided so that many different accessories can be mounted. This increases the degree of freedom in shooting as well as enhances user friendliness and rigging possibilities.

A ND filter expansion mode of 8 and 10 stops, on top of the current 2, 4 and 6 stops is also supported. This enables the aperture to be opened even in bright outdoor environments to capture shots with a shallow depth of field.

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Image Sensor
Sensor	Super 35mm type CMOS
System	RGB primary colour filter (Bayer array)
Total Pixels	9.84 megapixels
Effective Pixels	Approx. 8.85 megapixels when 4096 x 2160 / 2048 x 1080 resolution selected Approx.8.29 megapixels when 3840 x 2160 / 1920 x 1080 resolution selected
Dynamic Range	With Canon Log gamma: 800% With Canon Log2 Gamma 1600% (ISO 850 or above / gain 2.5dB or more)
Horizontal Resolution	Up to 1800 TV lines or more depends On shooting resolution and on lens used.
Minimum Illumination	59.94Hz Mode 0.3 Lux [F1.2 lens, 24dB, PF29.27 mode, shutter speed 1/30] 50Hz Mode 0.25 Lux [F1.2 lens, 24dB, PF25, shutter speed 1/25]
Lens
Lens Mount	Canon EF Mount. EF with Cinema Lock or PL mount available (optional upgrade)
Peripheral Illumination Correction	YES (dependent on lens used)
ND Filter	6 glass filters in camera body: 2 stops; 4 stops; 6 stops, 8 stops, 10 stops*1. Operate via body, wireless control or via RC-V100 Remote Control Unit.
Focus Control	Via lens, wireless control or wired remote (dependent on lens used) One shot AF with EF Lenses including Cine Servo lens range*2. (Not available with Manual Focus, CINEMA Zoom or Prime lenses).
Iris Control	Via body, grip, wireless control or wired remote. Push AI available with EF lens (Not available with CINEMA lenses) 1/2-stop, 1/3-stop or FINE control. Possible to maintain constant F-number during zoom.
Image Stabilization System	Depends on lens used
Image Processor
Type:	Dual DIGIC DV5
System
LCD
Size	4″ (10. cm diagonal) color wide-screen LCD with 16:9 aspect ratio
Dots	Approx. 1.23 million dots (854 x RGB x 480), 100% field of view coverage
Image Quality Adjustments	Super High, High or Normal can be selected as the luminance adjustment. Others are same as for the viewfinder.
Adjustability	Yes
Waveform Monitor	Yes
Focus Assist	Yes
Peaking	Yes
Zebra	Yes
Markers	Yes
EVF
Size	0.46″ (1.18cm on the diagonal), color organic EL display with a wide-screen 16:9 aspect ratio
Type	Organic LED
Dots	Approx. 1770,000 dots (1024 x RGB x 576)
Image Quality Adjustments	Adjustment of the viewfinder brightness, contrast, color, sharpness and luminance boosting (on / off) can be performed (using menu settings).
Adjustable	Yes
Correction Lens	+2.0 to -5.5 diopter
Inputs / Outputs
Audio in	Yes: 2x XLR input on monitor unit, 3.5mm input on Camera Body
Headphone output	Yes Output impedance 50Ω or less, Reference signal output level 50Ω or less Reference signal output level -∞ to -12 dBV (with 16Ω load, volume from MIN to MAX)
Video/Audio output	MON., REC OUT terminals: BNC Jack Video[HD]: SMPTE 292, SMPTE 274 [3G]: SMPTE 424, SMPTE 425 Audio[HD]: SMPTE ST 299-1 [3G]: SMPTE ST 299-2 Output impedance 75Ω, Output signal level 0.8Vp-p
HDMI	HDMI terminal (type A) Complies with HDMI specifications. Video/Audio output
IEEE 1394 (Firewire)	No
USB	No
Time code	BNC jack (input/output)
Genlock	BNC jack (also serves as the SYNC OUT terminal) Signal level 1.0Vp-p, Input impedance 10KΩ
Synch	BNC jack (also serves as the SYNC OUT terminal) Signal level 1.0Vp-p, Input impedance 10KΩ
LCD Monitor Input/Output	VIDEO terminal Canon’s proprietary specifications (special 13-pin jack) AUDIO terminal Canon’s proprietary specifications (special 13-pin jack)
Component out	No
AV terminal	No
DC input	Yes
Remote Control Terminal	2.5mm mini jack
Wireless Control Terminal	Via optional Wi-Fi adaptor
Colour Bars	EBU, SMPTE, ARIB
White Balance
Auto	Yes
Kelvin Range	2000 – 15000K, 100K intervals, Default 5500K
Preset	Daylight / Tungsten
White Balance Shift	Yes, -9 to +9 (Daylight or Tungsten Preset selected)
Black Balance
Black Balance Adjustment	Yes
Time Code
Countup system	Regen, RecRun, FreeRun, External, Hold (Drop frame available for NTSC Mode)
Start value setting	“00:00:00:00”, Set / Reset selectable
Audio
Recording	16-bit 2ch (48kHz) linear PCM
Control	Independent limiters and auto/manual settings
Microphone attenuation	Yes
Microphone level meter	Yes
Battery
Battery Type	BP-A30 (included), BP-A60 (optional)
Input Power Supply	14.4 V DC (battery pack), 16.7 V DC (DC IN)
Miscellaneous
Dimensions	Thumbrest attached:	Approx. 5.9 x 7.2 x 7.2in. (149 x 183 x 183mm)
	Grip attached:	Approx. 7.5 x 7.2 x 7.4in. (190 x 183 x 187mm)
	Grip, bracket and handle attached:	Approx. 7.5 x 10.4 x 8.9in. (190 x 265 x 226mm)
	Grip, bracket, handle and monitor attached:	Approx. 7.5 x 12.1 x 12.8in. (190 x 307 x 362mm)
