| Image Sensor |
| Sensor |
Super 35mm type CMOS |
| System |
RGB primary colour filter (Beyer array) |
| Total Pixels per sensor |
Approx. 11.54 megapixels (4622 x 2496) |
| Effective Pixels per sensor |
4096 x 2160 / 2048 x 1080: |
Approx. 8.85MP |
| 3840 x 2160 / 1920 x 1080: |
Approx 8.29MP |
| Dynamic Range |
Canon Log 2 / Canon Log 3: 1600% (ISO 800 or higher)
With Canon Log / Wide DR: 800% (ISO 400 or higher) |
| Image Processor |
| Type |
Triple DIGIC DV 5
|
| Lens |
| Lens Mount |
Canon EF Mount with Cinema Lock / PL Mount (Cooke / i Technology compatible) depending on version
B4 mount lens via adapter accessory (EF or PL) |
Lens Magnification factor
(for EF Mount lenses, including Cinema Primes) |
4096 x 2160 or 2048 x 1080:
|
Focal length x approx. 1.460 |
| 3840 x 2160 or 1920 x 1080: |
Focal length x approx. 1.534 |
| B4 adapter attached: |
Focal length x approx 1.3 (1.2947) (Full HD / 1920 x 1080) |
| PL Mount version: |
No magnification factor for Canon Cinema Zooms |
| Peripheral Illumination Correction |
Yes (dependent on lens used) |
| ND Filter |
Up to 10 stops via built in ND filter system |
| Focus Control |
EF Mount: |
Via lens, wireless control or wired remote (dependent on lens used) |
| PL Mount: |
Only Cine Servo lenses |
| Iris Control |
Via body, grip, wireless control or wired remote.
1/2-stop, 1/3-stop or FINE control.
Possible to maintain constant F-number during zoom. |
| Cooke / I Technology Support |
YES (PL Mount only) |
| Anamorphic Lens Support |
YES |
| Image Stabilization System |
Depends on lens used |
| EVF |
| Built- In EVF |
NO |
| Optional EVF Accessory |
YES. OLED Electronic ViewFinder, EVF-V70 |
| Display Panel |
| Control Display |
3.0″ (7.66cm on the diagonal) colour liquid crystal, approx. 1.036 million dots |

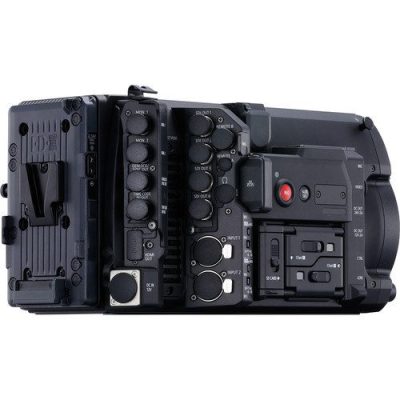

| Inputs / Outputs |
| Audio In |
XLR 3-pin connector x2, 3.5mm stereo mini jack (input only) |
| Headphone Output |
3.5 mm stereo mini jack (output only) |
| Video Monitor Output |
MON.1 / MON.2: BNC jack, output only |
| HDMI |
HDMI connector (type A) (output only) |
| USB |
NO |
| SDI Output |
BNC jack (4 lines, output only) |
| Time Code |
BNC jack (input / output) |
| Genlock |
BNC jack (input only / also serves as SYNC OUT connector) |
| Synch |
BNC jack (output only / also serves as GENLOCK connector) |
| Component Out |
NO |
| AV Terminal |
NO |
| DC Output |
DC 24V 2A jack Fisher 3-pin jack (output only), DC 12V 2A jack LEMO 2-pin jack (output only) |
| DC Input |
XLR 4-pin jack |
| Remote Control Terminal |
REMOTE A connector 2.5mm stereo mini-mini jack (input only)
REMOTE B connector Round 8-pin jack (for RS-422) |
| Wireless Control Terminal |
YES, for WFT-E6B.WFT-E8 |
| Lens Terminal |
12-pin jack |
| Ethernet Terminal |
Ethernet connector (RJ45) (supports 1000 BASE-T) |
| CTRL Terminal |
Canon's proprietary specifications, LEMO 7-pin jack |
| Video connector (For EVF) |
Canon's proprietary specifications (special 13-pin jack, output only) |
| Misc |
| Tally Lamp |
YES |
| Custom Dial |
YES |
| Wi-Fi & GPS Specifications |
| GPS Information (Optional Accessory) |
Latitude / Longitude / Elevation, Coordinated Universal Time (UTC) |
| White Balance |
| Auto |
YES |
| Preset |
Daylight (5400K), Tungsten (3200K), Kelvin (2000K – 15000K, 100K intervals), Set A, Set B |
| White Balance Shift |
YES. -9 to +9 (Daylight and Tungsten only) |
| Black Balance |
| Black Balance Adjustment |
YES |
| Time Code |
| Countup System |
Regen, RecRun, FreeRun, External, Hold (Drop frame available for some frame rates) |
| Start Value Setting |
“00:00:00:00”, Set / Reset selectable |
| Audio |
| Recording |
Internal & Capture Drive recording: linear PCM 48KHz, 24-bit, 4-ch
RAW (SDI OUT): linear PCM 48 KHz, 16-bit, 2-ch
Digital input available following two-channel (XLR), analog input, AES3 standards (48kHz / 24-bit / 2-ch) |
| Miscellaneous |
| Operating Temperature Range |
Approx. 0°C to 40°C, 85% (relative humidity)
Approx. -5°C to 45°C, 60% (relative humidity) |
