Description

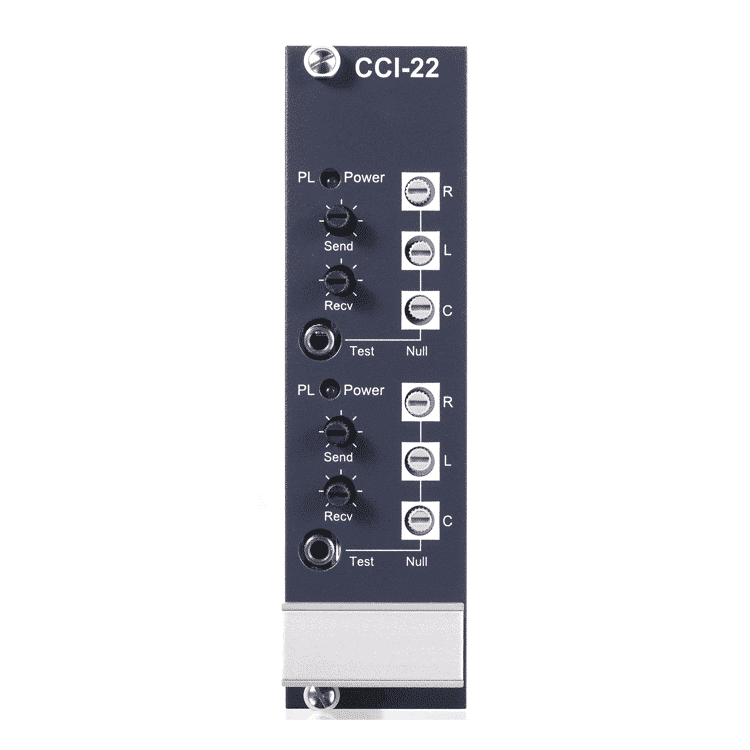

Clear-Com CCI-22 Dual 2-WIRE Clear-Com/RTS Party Line Interface

Clear-Com CCI-22 Dual 2-WIRE CLEAR-COM / RTS PARTYLINE INTERFACE (DUAL). The Clear-Com CCI-22 connects two 2-wire full duplex partyline circuits with the matrix. The interface supports Clear-Com signaling to and from the matrix system, deriving its power from the external partyline circuit. Levels and cable nulling are completely adjustable.

The Clear-Com CCI-22 functions with Clear-Com and other two-wire intercom systems. Does not power the partylines attached to CCI-22 modules. These require Encore Master Station PSUs such as the PK-7, PS-702 or MS-702.

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Frequency Response	100 Hz-15 kHz, 0/-3 dB
Impedance	>10K Ohms (bridging)
Audio Leve	Clear-Com or compatible: -15 dBv nominal Other: -10 dBv nominal
Call Signal Level (Clear-Com or compatible only)	4 -11 VDC
Nulling Capability	Line Length: 0 – 4,000 feet Line Impedance: 120 – 350 Ohms Depth of Null: >30 dB, 200 Hz – 8 kHz Nulling Tone: Via 1/8″ phone jack
Power Consumption (maximum each channel)	40 mA @ 20 – 30 VDC (Power is supplied by external party-line)
Power Requirements	0 mA from PSU-101 power supply
