Clear-Com HB-704 4-Channel Flush-Mount
Click to enlarge
Home » Shop » Intercom » Clearcom Wired » Headset stations » Clear-Com HB-704 4-Channel Select Flush-Mount Headset Station
Clear-Com HB-702 2-Channel Flush-Mount
Clear-Com HB-702 2-Channel Flush-Mount Headset Station SGD 589.10 excl. Tax
Back to products
Clear-Com KB-701 1-Channel Flush-Mount
Clear-Com KB-701 1-Channel Flush-Mount Push-to-Talk Speaker/Microphone Station

Clear-Com HB-704 4-Channel Select Flush-Mount Headset Station

SGD 691.85 excl. Tax

Weight 2 kg
Clear-Com
SKU: HB-704 Category: Headset stations
Share:
  • Description
  • Specifications
  • Delivery Info
  • Reviews (0)
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

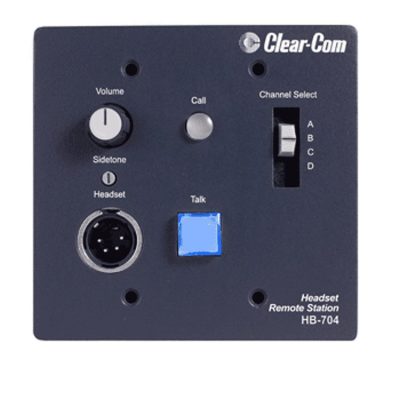

Clear-Com HB-704 4-Channel Flush-Mount Headset Station

Clear-Com HB-704 4-Channel Select Flush-Mount Headset Station (4.5″ X 4.5″) Mounts in Console or Standard 2-Gang Electrical Box

Clear-Com HB-704 is a selectable four intercom channel wall or console-mounted headset station. Microprocessor-controlled logic and switching, with momentary/latching talk button. Visual call signaling.

Optional 4-wire and TW daughter boards.

Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
Headset Microphone Input Input Type : Dynamic
Input Impedance: >= 1KΩ
Mic Limiter Threshold: -2dBu ± 3dB
Mic Limiter Range: >= 15dB
Program Line Input Input Impedance: >= 5KΩ
Headset Output Load Impedance: >= 8Ω
Output Impedance: <= 25Ω Output Limiter Threshold: 5dBu ± 3dB Maximum Output Level before Distortion: >= 17dBu
Party-line Output Off Noise: < -74dBu Output Impedance: >10KΩ
Party-line Input Crosstalk: < -60dB Max level before Clipping: >= 12dBu
Frequency Response Headset Mic – Party-line: 300 – 15KHz ± 3dB
Party-line – Headset Out: 300 – 15KHz ± 3dB
Max Distortion Headset Mic – Party-line: <= 0.5% Party-line - Headset Out: <= 0.2%
Noise Headset Mic – Party-line: < -70dBu
Max Gain Headset Mic – Party-line: 41dB ± 2dB
Party-line – Headset Out: >= 34dB
Power Input Voltage Range: 20-30 VDC
Input Current (Idle): <= 50mA Input Current (Max): <=100mA
Internal Adjustments and Connections Intercom Line: Seven terminal connector
Option Switches: Two DIP switches
Option Board Jumper: Two sets of options jumpers
Front Panel Connectors Headset: (1) XLR-4M
Front Panel Controls & Indicators (1) Sidetone control
(1) Talk button
(1) Call button
(1) Channel select switch
(1) Volume control
Environmental 32 – 122°F (0 – 50°C)
Dimensions 4.625 in. W x 4.5 in. H x 1.75 in. D
(117 mm x 114 mm x 44 mm)
Weight 0.46 lbs. (0.21 Kg)
