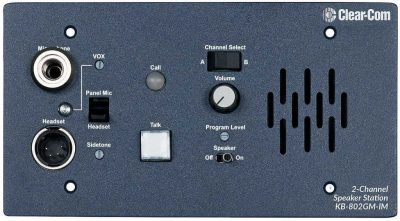

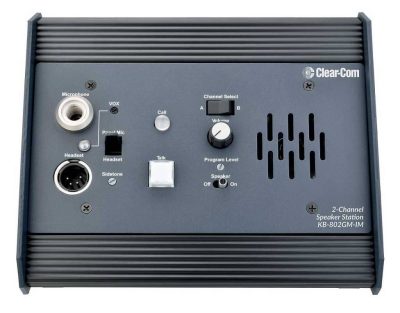

Clear-Com KB-802GM-IM 2-Channel Remote Speaker Station

Panel Microphone Input

• Input Type: Electret
• Input Impedance: >=2K
• Mic Limiter Threshold: -2dBu ±3dB
• Mic Limiter Range: >= 15dB

Headset Microphone Input

• Input Type: Dynamic
• Input Impedance: >= 1K
• Mic Limiter Threshold: -2dBu ± 3dB
• Mic Limiter Range: >= 15dB

Program Line Input

• Maximum Level before Clipping: >= 20dBu
• Input Impedance: >= 5K Headset Output
• Load Impedance: >= 8
• Output Impedance: <= 25
• Output Limiter Threshold: +5dBu ± 3dB
• Maximum Output Level before Distortion: >= 17dBu

Speaker Output

• Load Impedance: >= 4 Max Output Level before
• 1% Distortion: 20dBu ± 2dBu

Partyline Output

• Off Noise: < -74dBu
• Output Impedance: >10K

Partyline Input

• Crosstalk: < -60dB
• Max level before Clipping : >= 12dBu
• Sidetone Null Capability: > 25dB

Frequency Response

• Panel Mic – Partyline: 300 – 16KHz ± 3dB
• Headset Mic – Partyline: 300 – 15KHz ± 3dB
• Program Input – Headset Out: 200 – 18KHz ± 3dB
• Program Input – Speaker Out: 200 – 18KHz ± 3dB
• Partyline – Headset Out: 200 – 18KHz ± 3dB
• Partyline – Speaker Out: 200 – 18KHz ± 3dB

Max Distortion

• Panel Mic – Partyline: <= 0.5%
• Headset Mic – Partyline: <= 0.5%
• Program Input – Headset Out: <= 0.2%
• Program Input – Speaker Out: <= 0.5%
• Partyline – Headset Out: <= 0.2%
• Partyline – Speaker Out: <= 0.5%

Noise

• Panel Mic – Partyline: < -65dBu
• Headset Mic – Partyline: < -70dBu
• Program Input – Headset Out: < -60dBu
• Program Input – Speaker Out: < -60dBu
• Partyline – Headset Out: < -50dBu
• Partyline – Speaker Out: < -50dBu

Max Gain

• Panel Mic – Partyline: >= 37dB
• Headset Mic – Partyline: 41dB ± 2dB
• Program Input – Headset Out: >= 18dB
• Program Input – Speaker Out: >= 24dB
• Partyline – Headset Out: >= 34dB
• Partyline – Speaker Out: >= 40dB

Power

• Input Voltage Range: 20-30 VDC
• Input Current (Idle): <= 90mA
• Input Current (Max): <=110mA

Internal Adjustments and Connections

• Intercom: Line Five terminal connector Program Input Three terminal connector
• Option Switches: Three DIP switches
• Call Signal Jumper3: Three sets of options jumpers
• Call Alert Tone Level Control: Level adjustment control
• Front Panel Connectors Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack
• Headset: (1) XLR-4M

Front Panel Controls & Indicators

• (1) Panel /headset mic switch
• (1) Program monitor level control
• (1) Sidetone null control
• (1) Talk button
• (1) Call button
• (1) Speaker ON-OFF switch
• (1) Channel select switch
• (1) Speaker volume control
• (1) VOX control
• (1) VOX indicator

Environmental

• 32 – 122°F (0 – 50°C)
• Relative Humidity: 0 – 96%, non-condensing
• Vibration Frequency Range: 2 – 13.2 Hz
• Amplitude: 1.0 mm
• Peak Value Frequency Range: 13.2 – 100 Hz,
• Acceleration Amplitude: 0.7 g
• EMC: DNVGL-CG-0339 – Class B
• Enclosure: IP-20

Dimensions

4.5 x 8.25 x 1.75 (HxWxD)
(114 x 210 x 44 mm)

Weight

1.1 lbs (0.50 Kg)
