Clear-Com LQ-4WG2 2-Channel 4-Wire GPIO IP Interface
SGD 4,077.00 excl. Tax
Description
Click to rate this post!
[Total: 1 Average: 5]

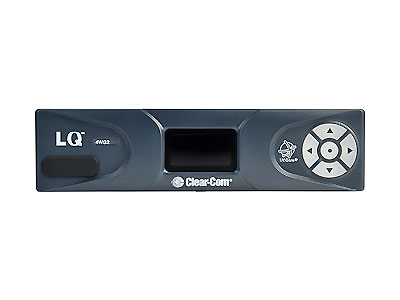

Clear-Com LQ-4WG2 2-Channel 4+Wire GPIO Analog Interface Port
The Clear-Com LQ-4WG2 stands as a sophisticated 2-channel 4-wire GPIO IP interface crafted to meet the communication demands of the broadcast, live production, and other critical operational settings. This device is instrumental in establishing seamless communication pathways between diverse audio systems and devices.
Highlighted below are the key features and functionalities of the Clear-Com LQ-4WG2:
2-Channel 4-Wire Interface:
- This device supports two independent communication channels, allowing simultaneous bidirectional transmission of audio signals.
- The 4-wire configuration ensures separate paths for send and receive signals, minimizing interference and elevating audio quality.
GPIO (General Purpose Input/Output) Capabilities:
- Equipped with GPIO ports, the LQ-4WG2 facilitates the integration of external devices and control systems into the communication framework.
- GPIO functionality enables the transmission of control signals, such as tally and remote triggering, enhancing coordination in live production environments.
IP Connectivity:
- Leveraging Internet Protocol (IP) technology, the interface provides connectivity through standard Ethernet networks.
- This feature allows for flexible and scalable deployment, supporting communication across different locations and facilitating remote production setups.
Wide Compatibility:
- The Clear-Com LQ-4WG2 seamlessly integrates with Clear-Com’s intercom systems, ensuring compatibility with a variety of Clear-Com devices.
- Its open-architecture design promotes interoperability with third-party audio and communication systems, enhancing its adaptability.
User-Friendly Configuration:
Featuring a web-based interface, the device allows easy configuration and management, empowering users to adjust settings, monitor connectivity, and troubleshoot remotely.
Redundancy and Reliability:
- To guarantee uninterrupted communication, the LQ-4WG2 supports redundancy options like dual network ports and network loop-through connections.
- These features enhance the overall reliability of the system, a critical aspect in scenarios where communication failures are not tolerable.
Compact and Rack-Mountable:
The LQ-4WG2’s compact form factor makes it suitable for space-restricted environments, and it easily integrates into larger broadcast and production setups when rack-mounted.
In summary, the Clear-Com LQ-4WG2 2-Channel 4 Wire GPIO IP Interface is a robust and versatile solution, essential for establishing dependable communication links in professional audio and broadcasting applications. Its combination of 2-channel 4-wire capabilities, GPIO support, IP connectivity, and user-friendly configuration makes it a crucial component for ensuring efficient and reliable communication across diverse production environments.
To view more Clear-com Products
Related Products:
- Clear-Com LQ-2W2 2-Channel Interface Box
- Clear-Com LQ-4W2 IP Communication Interface Box
- Clear-Com LQ-R4W8 8-Channel 4-Wire IP Interface
- Clear-Com LQ-R4WG8 8-Channel 4-Wire GPIO IP Interface
- Clear-Com LQ-R2W4 4-Channel Partyline IP Communication Interface
- Clear-Com LQ-R2W4-4W4 4-channels IP Interface
Indhu UC added on 29 Feb 24
Features
Click to rate this post!
[Total: 1 Average: 5]
- Intercom-over-IP: routing intercom and audio signals over IP networks
- Connect up to 6 LQ devices together over LAN, WAN, Internet
- Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per device
- Connects with matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles
- Supports up to 8 Agent-IC and Station-IC clients per LQ device (license required)
- Supports up to 8 SIP client connections per LQ device (license required)
- Connects to HelixNet via HLI-ET2 over LAN or WAN
- Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
- 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
- Adjustable bandwidth on a per port basis
- Connectors: Network/LAN: EtherCON/RJ45 (female); 4-wire with
- GPIO Audio I/O: 9-way D-type (male)
- Network-friendly OPUS Codec
- Browser-based Core Configuration Manager application
- Networked Control Events for multi-unicast one-to-many routing
Specifications
Click to rate this post!
[Total: 1 Average: 5]
Audio:
- Resolution: 12, 24 bit
- Sample Rate: 24, 48kHz
- Frequency Response: 100 – 12kHz or 100 – 20kHz
- CODEC: OPUS
- Line Level: (0dB)
- Input Gain: -12dB to +12dB
- Output Gain: -12dB to +12dB
- Mic Level: (-50dB)
- Input Gain: -12dB to +12dB
- Output Gain: -12dB to +12dB
Network Setting:
- Bit Rates: 16, 32, 48, 64, 128Kbps
- Packet Size: 5, 10, 20, 40, 60ms
- Jitter Buffers: 0 – 1000ms
Connectors:
- Network/LAN: EtherCON/RJ45 (female)
- 4-wire with GPIO Audio I/O: 9-way D-type (male)
Power Supply:
- Plug-in adapter with sleeve locking connector (US, UK, Europe, AUS & China sockets included)
- Input: 100-240V, 47-63Hz, 0.58A MAX
- Output: DC 12V, 2A, 24W MAX
Environmental:
- Operating Temperature: +32°F – +104°F (0°C – +40°C)
- Storage Temperature: -67°F – +158°F (-55°C – +70°C)
- Humidity: 90%, non-condensing
- Dimensions: 6.8 x 1.79 x 8.45in (WxHxD)(173 x 46 x 215mm)
- Weight: 1.83lbs (.83kg)
