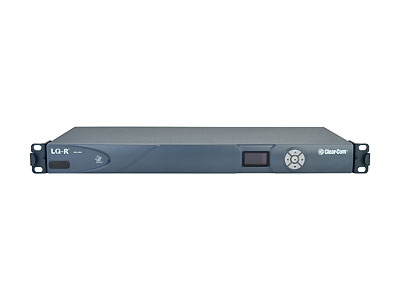

Clear-Com LQ-R2W4-4W4 4-channels IP Interface

Audio:

• Resolution: 12, 24 bit
• Sample Rate: 24, 48kHz
• Frequency Response: 100 – 12kHz or 100 – 20kHz
• CODEC: OPUS

Partyline Audio:

• Input Gain: -3dB to +3dB
• Output Gain: -3dB to +3dB

4-Wire with GPIO Audio:

• Line Level: (0 dB)
• Input Gain: -12dB to +12dB
• Output Gain: -12dB to +12dB
• Mic Level: (-50 dB)
• Input Gain: -12dB to +12dB
• Output Gain: -12dB to +12dB

Network Setting:

• Bit Rates: 16, 32, 48, 64, 128Kbps
• Packet Size: 5, 10, 20, 40, 60ms
• Jitter Buffers: 0 – 1000ms

Connectors:

• Network/LAN: EtherCON/RJ45 (female)
• Partyline Audio I/O: 3 Pin XLR (female)
• 4-wire with GPIO Audio I/O: 9-way D-type (male)

Partyline Output Current:

• Type: Clear-Com & RTS TW
• Local DC Powered: 250mA per pair of partyline ports (500mA total)

Power Supply:

In-line supply with sleeve locking connector

• Input: 100-240V, 50-60Hz, 1.4A MAX
• Output: DC 12V, 5A, 60W MAX

Environmental:

• Operating Temperature: +32°F – +104°F (0°C – +40°C)
• Storage Temperature: -67°F – +158°F (-55°C – +70°C)
• Humidity: 90%, non-condensing
• Dimensions: 19 x 1.79 x 8.8in (WxHxD)(483 x 46 x 224mm)
• Weight: 4.29lbs (1.95kg)
