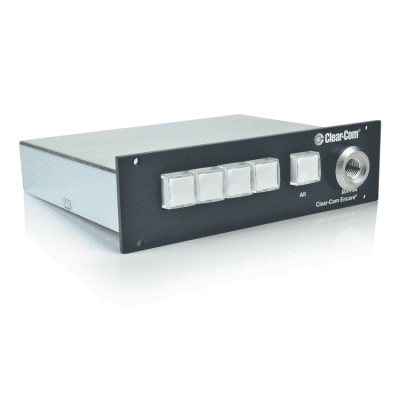

Clear-Com MA-704 IFB Control Panel
Click to enlarge

Clear-Com MA-704 IFB Control Panel with Microphone Jack

USD 995.00 USD 945.00 excl. Tax

Weight3 kg
Add to wishlist
SKU: MA-704 Categories: ,
Description

Clear-Com MA-704 IFB Control Panel with Microphone Jack

The Clear-Com MA-704 provides individual access to four Talent Channels. The ALL button simultaneously access all Talent positions. Works in conjunction with the PIC-4744 IFB Router and AX-704 Expansion Stations. Can be mounted in the optional rack mount (CEP-RK).

Features
  • Program Interrupt and IFB Master Control and Access Station
  • Four Talent channels
  • All IFB button simultaneously access all Talent channels
  • Tally lights indicate IFB channels in use
  • Optional rack mount kit for up to 12 talent access buttons in a 1RU
  • Powered by the intercom line
Specifications
Panel Microphone InputInput Type: Electret
Input Impedance: >=2KΩ
Mic Limiter Threshold: 0dB ± 3dB
Mic Limiter Range: >= 15dB
Program Line InputMaximum Level before Clipping: >= 20dBu
Input Impedance: >= 5KΩ
Frequency ResponsePanel Mic – Talent: 200 – 18KHz ± 3dB
Program Input – Talent: 200 – 18KHz ± 3dB
Extension Line – Talent: 200 – 18KHz ± 3dB
Max DistortionPanel Mic – Talent: <= 0.5%
Program Input – Talent: <= 0.1%
Extension Line – Talent: <= 0.1%
NoisePanel Mic – Talent: < -65dBu
Program Input – Talent: < -85dBu
Extension Line – Talent: < -85dBu
Max GainPanel Mic – Talent: >= 30dB
Program Input – Talent : >= -14dB
Extension Line – Talent: -14dB ± 3dB
Min GainPanel Mic – Talent: <= 40dB
Program Input – Talent: <= -45dB
PowerInput Voltage Range: 20-30 VDC
Input Current (Idle): <= 140mA
Input Current (Max): <= 180mA
Rear Panel Connectors
and Controls		IFB Input: (1) XLR6F
IFB Extension: (1) XLR6M
Extension Bus Out: (1) 1/4 jack
External Line In: (1) 1/4 jack
Mic Gain: (1) Gain adjust
Front Panel Controls & Indicators(5) Talk buttons
(1) 1/4 microphone jack socket
Environmental32 – 122˚F (0 – 50˚C)
Dimensions1.75 in H.x 6.3in W x 5.5in D
(44.5mm x 160mm x 139.7mm)
Weight1.71 lbs. (.78kg)
