Clear-Com PS-702
Click to enlarge
Home » Shop » Intercom » Clearcom Wired » Power supplies » Clear-Com PS-702 2-Channel 1-Amp Rack Mount Power Supply
Clear-Com PK-7
Clear-Com PK-7 1-Channel 0.4 Amp Portable Power Supply
Back to products
Clear-Com PS-704 Rack Mount
Clear-Com PS-704 4-Channel 2-Amp Rack Mount Power Supply

Clear-Com PS-702 2-Channel 1-Amp Rack Mount Power Supply

Weight 2.5 kg
Add to wishlist
SKU: PS-702 Category: Power supplies
  • Description
  • Specifications
  • Delivery Info
  • Reviews (0)
Description

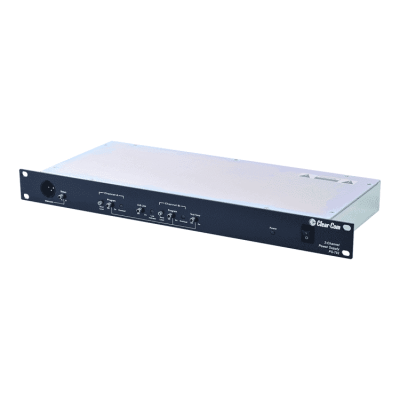

Clear-Com PS-702 2-Channel 1-Amp Rack Mount Power Supply

Clear-Com PS-702 2-Channel 1-Amp (2-Amp Peak) Rack Mount (1RU) Universal Power Supply. 2-channel x 3 intercom jacks, 1 A/B selectable headset jack and 1 program input.

The Clear-Com PS-702 can deliver 1.2 amps at 30 volts DC to two channels. This is sufficient to power up to 40 beltpacks, 10 speaker stations, or 12 headset stations even under the most demanding conditions. Either channel is capable of supplying up to 1.2 amps. The full current capacity may be divided between the two channels.

Click to rate this post!
[Total: 1 Average: 5]
Specifications
Program Line Input Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5KΩ
Frequency Response Program Input – Party-line: 200 – 20KHz ± 3dB
Max Distortion Program Input – Party-line: <= 0.2%
Noise Program Mic Input – Party-line:< -70dBu
Max Gain Program Input – Party-line: >= -16dB
Min Gain Program Input – Party-line: <= -20dB
Mains Power Input Voltage Range: 100 – 240 VAC
Input Frequency Range: 50 – 60 Hz
Input Power: <= 60 VAC Output Voltage: 30 VDC ± 0.5V Output Current per Channel (Continuous): 1.2 A Output Current per Channel (Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period) Short Circuit Recovery Time (1st short): <= 0.5 sec Short Circuit Recovery Time: >= 20 shorts in 20sec <= 20 sec
Station Capacity Up to 40 RS-601 beltpacks or 10 speaker stations or 12 headset stations distributed over both channels
Rear Panel Connectors Intercom: (6) XLR-3M (3 per channel)
Program: (1) XLR-3F
AC Power: IEC 320 connector
Rear Panel Controls (2) Termination On-Off switches
(1) Volume control
Front Panel Connectors Intercom (1) XLR-3M
Front Panel Controls & Indicators (1) Intercom channel switch
(1) A B link switch
(2) Program switch
(2) Send level controls
(1) Test tone switch
(2) Overload LEDs
(1) Link indicator LED
(1) Power indicator LED
(1) Power switch
Environmental 32? – 122?F (0? – 50?C)
Dimensions 19 in. W x 1.75 in. H x 7.5 in. D
(483 mm x 44 mm x 190 mm)
Weight 6.16 lbs. (2.80 kg)
