Clear-Com RM-702 2-Channel Headset/Speaker Remote Station

SGD 1,794.70 excl. Tax

Weight 2.5 kg
Clear-Com
SKU: RM-702 Categories: ,
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

Clear-Com RM-702 2-Channel Headset/Speaker Remote Station

Clear-Com RM-702 2-Channel Headset/Speaker Station, Rack Mount (1RU) A single rack space, the two-channel station is powered by the intercom line. Operators can talk and/or listen on either or both channels. Accepts line-level audio program input via DB-15 Connector, with both channels programmable for interrupt. Microphone limiting and speaker “dipping” circuit for greater output before feedback.

Features:
  • Selectable one- or two-channel communication
  • Individual listening volume controls
  • Momentary/latching talk buttons
  • Individual call buttons
  • Visual call signaling
  • Balanced audio input with program interrupt (IFB)
  • Hot mic and line-level outputs
  •  Studio announces output with relay
  •  Optional plug-in gooseneck mic
  •  Wide-range high-output speaker
  • One rack space
  • LED buttons for talk, call, announce, link, all talk, and mic on
Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
Panel Microphone Input Input Type : Electret
Input Impedance: >=2KΩ
Mic Limiter Threshold: 0dBu ±3dB
Mic Limiter Range: >= 20dB
Headset Microphone Input Input Type: Dynamic
Input Impedance: >= 1KΩ
Mic Limiter Threshold: 0dBu ± 3dB
Mic Limiter Range: >= 15dB
Program Line Input Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5KΩ
Headset Output Load Impedance: >= 8Ω
Output Impedance: <= 25Ω Output Limiter Threshold: 5dBu ± 3dB Maximum Output Level before Distortion: >= 17dBu
Speaker Output Load Impedance: >= 4Ω
Max Output Level before 1% Distortion: 20dBu ± 2dBu
Party-line Output Off Noise: < -74dBu Output Impedance: >10KΩ
Party-line Input Crosstalk: < -60dB Max level before Clipping: >= 12dBu
Sidetone Null Capability: > 25dB
Stage Announce/Balanced Line Out Type: Balanced
Output Impedance: >= 200Ω
Load Impedance: >= 600Ω
IFB/Hot Mic Type: Unbalanced
Output Impedance: 180Ω
Load Impedance: >= 600Ω
Frequency Response Panel Mic – Party-line: 600 – 10KHz ± 3dB
Headset Mic – Party-line: 200 – 12KHz ± 3dB
Headset Mic – Line Out: 200 – 12KHz ± 3dB
Program Input – Party-line: 100 – 17KHz ± 3dB
Program Input – Headset Out: 200 – 10KHz ± 3dB
Program Input – Speaker Out: 300 – 10KHz ± 3dB
Party-line – Headset Out: 200 – 10KHz ± 3dB
Party-line – Speaker Out: 300 – 10KHz ± 3dB
Max Distortion Panel Mic – Party-line: <= 0.5% Headset Mic - Party-line: <= 0.5% Headset Mic - Line Out: <= 0.5% Program Input - Party-line: <= 0.2% Program Input - Headset Out: <= 0.2% Program Input - Speaker Out: <= 0.5% Party-line - Headset Out: <= 0.2% Party-line - Speaker Out: <= 0.5%
Noise Panel Mic – Party-line: < -65dBu Headset Mic - Party-line: < -70dBu Headset Mic - Line Out: < -55dBu Program Input - Party-line: < -85dBu Program Input - Headset Out: < -60dBu Program Input - Speaker Out: < -60dBu Party-line - Headset Out: < -50dBu Party-line - Speaker Out: < -50dBu
Max Gain Panel Mic – Party-line: >= 37dB
Headset Mic – Party-line: 41dB ± 2dB
Headset Mic – Hot Mic Out: 55dB ± 3dB
Headset Mic – Announce Out: 55dB ± 3dB
Program Input – Party-line: >= -16dB
Program Input – Headset Out: >= 18dB
Program Input – Speaker Out: >= 24dB
Party-line – Headset Out: >= 34dB
Party-line – Speaker Out: >= 40dB
Min Gain Power
Input Voltage Range: 20-30 VDC
Input Current (Idle): <= 90mA Input Current (Max): <=110mA.

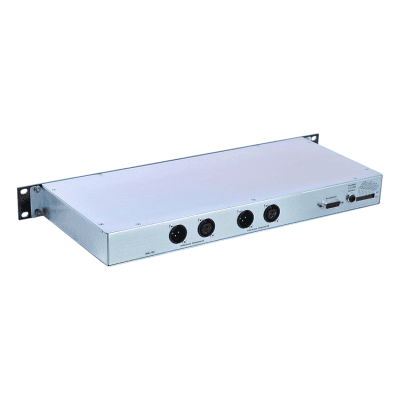

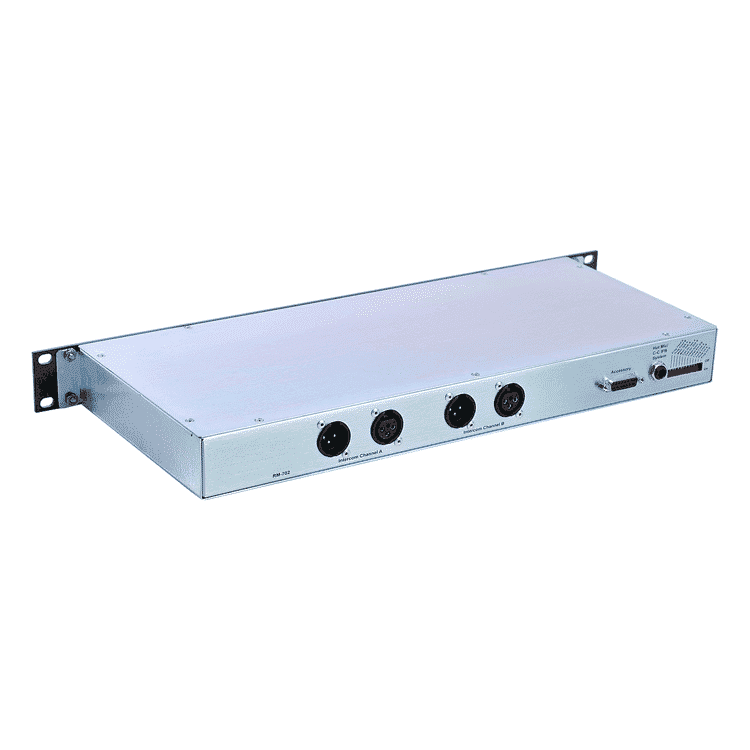

Rear Panel Connectors Intercom: (2) XLR-3M (1 per channel)
(2) XLR-3F (1 per channel)
Hot Mic / IFB Interface: (1) 1/4 in. (0.64 cm) phone jack
Accessory: (1) DB-15F
Rear Panel Controls (12) Option switches
Front Panel Connectors Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack
Headset: (1) XLR-4M

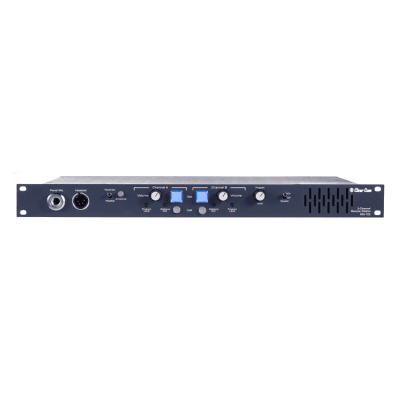

Front Panel Controls & Indicators (1) Panel / headset mic switch
(1) Announce button
(2) Program send level controls
(1) Program monitor level control
(2) Listen controls
(2) Sidetone null controls
(2) Talk buttons
(2) Call buttons
(1) Speaker ON-OFF switch
Environmental 32 – 122°F (0 – 50°C)
Dimensions 19 in. W x 1.75 in. H x 7.0 in. D
(483 mm x 44.5 mm x 178 mm)
Weight 5.2 lbs. (2.36 Kg)
